Mirrors - Outside Automatic Day-Night Feature Inoperative

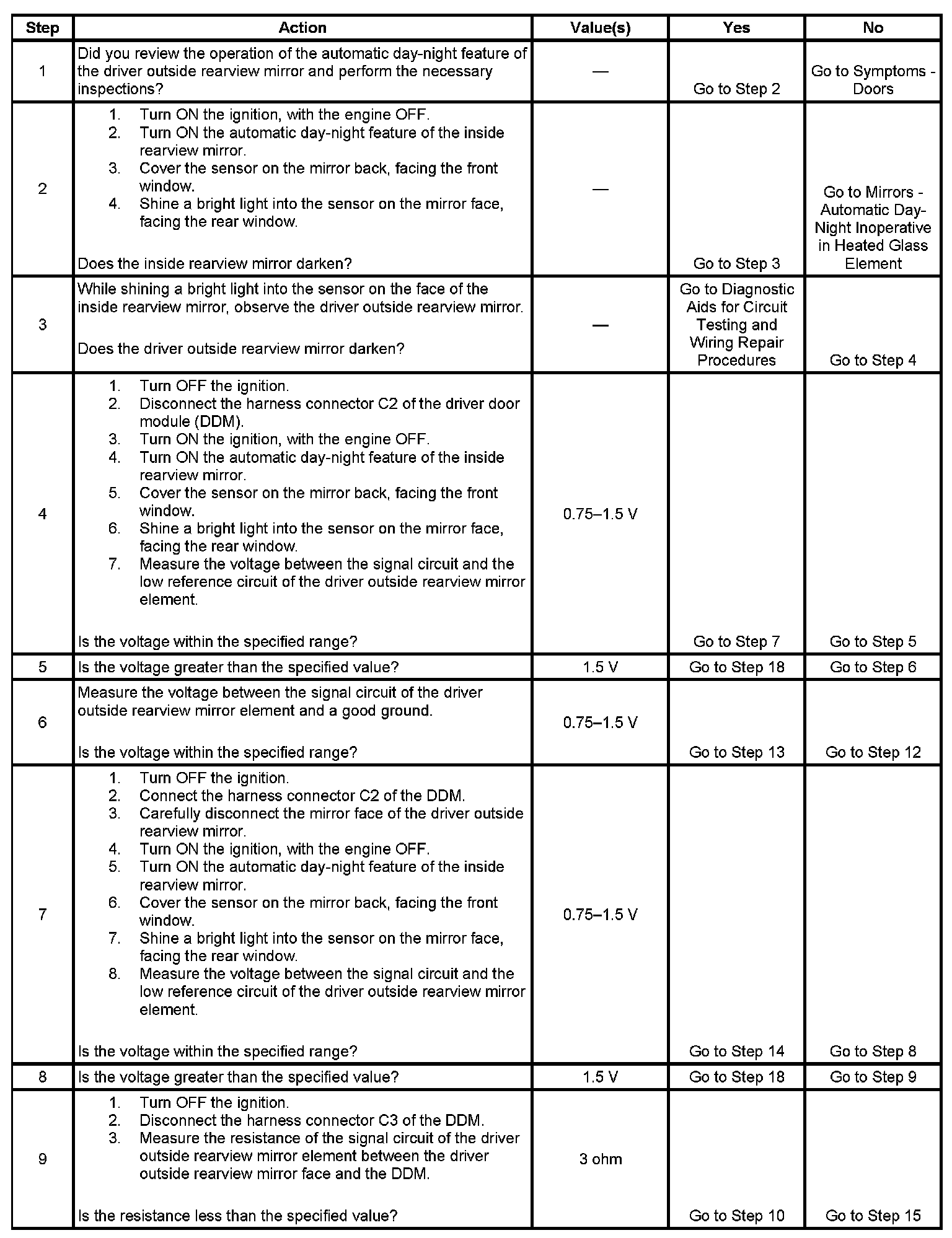

Step 1 - Step 9:

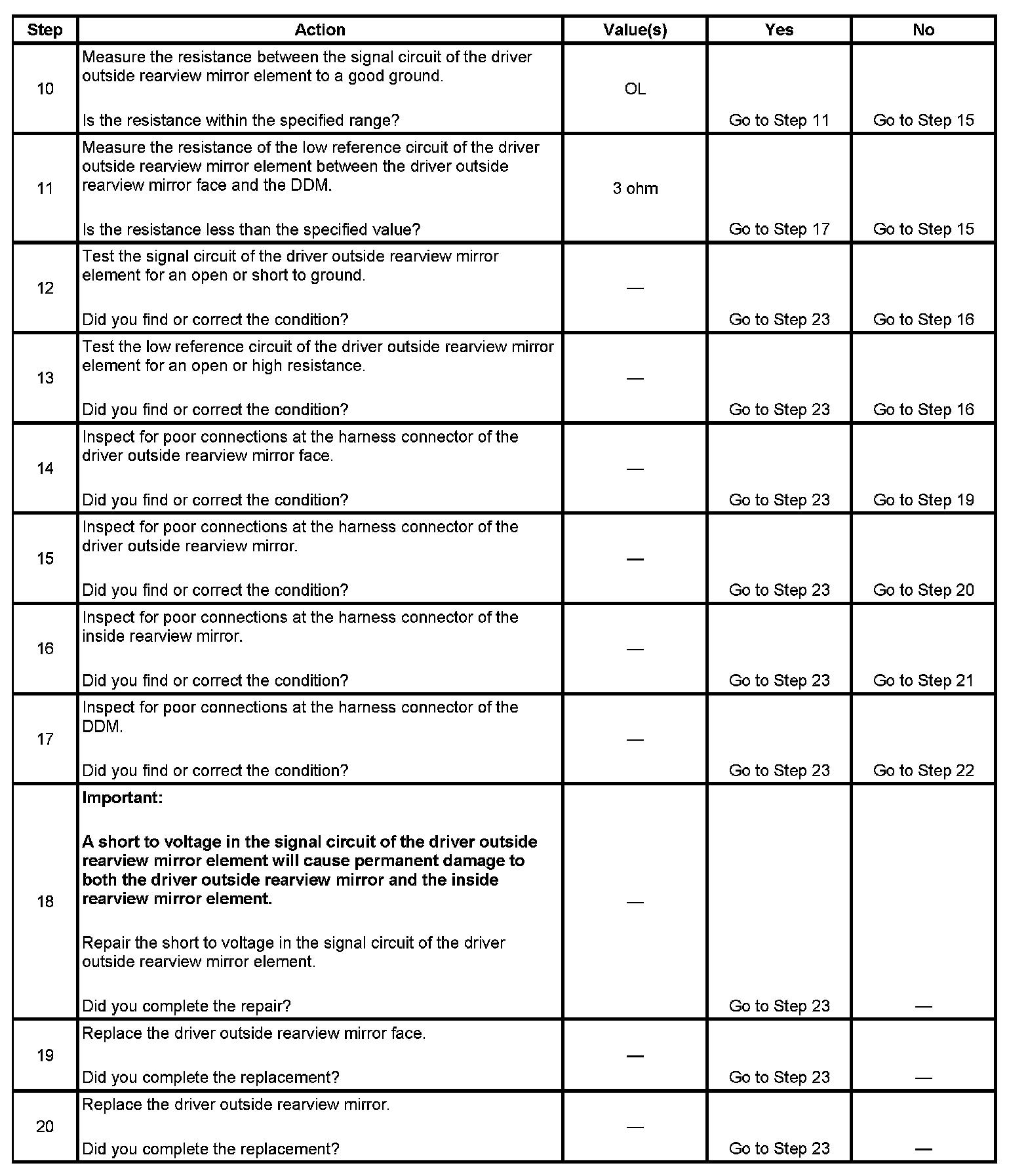

Step 10 - Step 20:

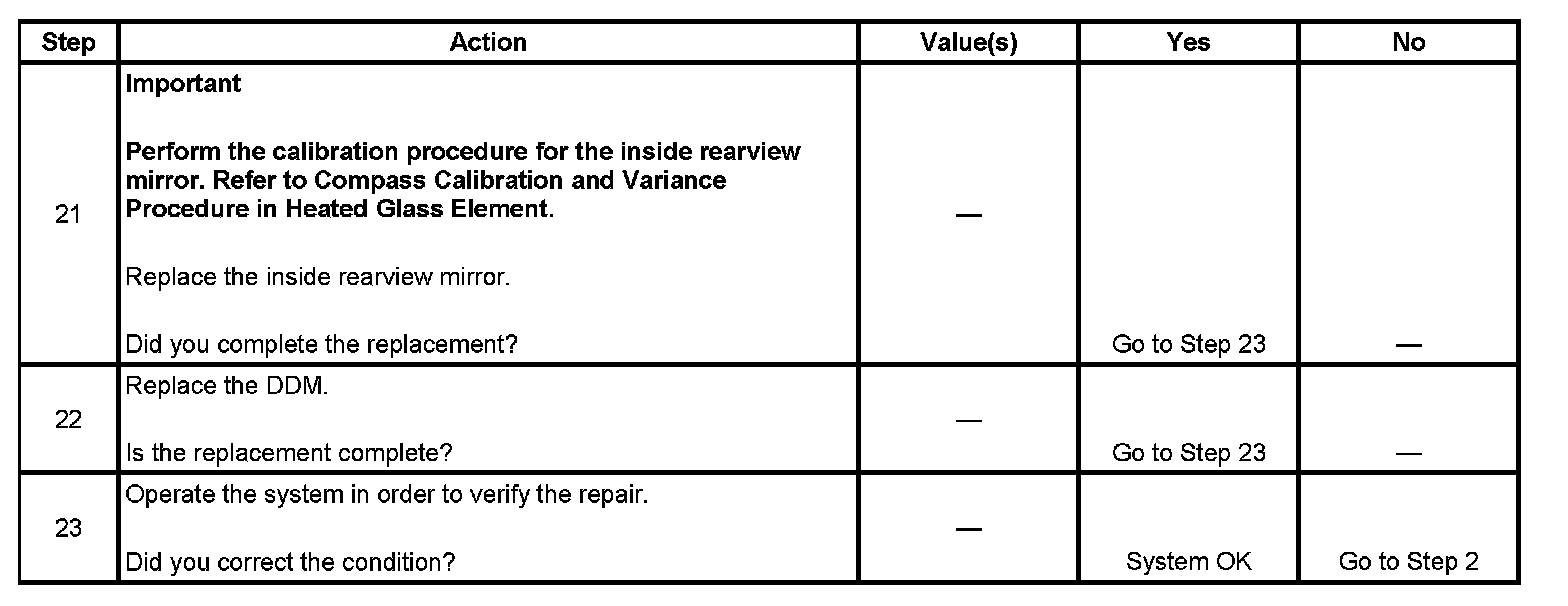

Step 21 - Step 23:
