With RPO JL4

DTC C0244 (W/JL4)
Circuit Description
The electronic brake control module (EBCM) supplies approximately 12 volts through an internal resistor to the powertrain control module (PCM) on the delivered torque signal circuit. The PCM toggles this voltage to ground in order to create the delivered torque signal at the EBCM. A signal with a frequency of 128 Hz +/- 5 percent and a duty cycle of 25-95 percent is a valid delivered torque signal. The percentage of duty cycle is proportionate to the percentage of delivered engine torque.

DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC C0244 Pulse Width Modulated (PWM) Delivered Torque

Conditions for Running the DTC
^ The ignition is ON.
^ The engine is running at a speed greater than 450 RPM for 1 second.

Conditions for Setting the DTC
The EBCM receives an invalid delivered torque signal for 300 milliseconds.

Action Taken When the DTC Sets
^ The EBCM disables the vehicle stability enhancement system (VSES).
^ Engine torque reduction is disabled.
^ The traction off indicator turns ON.
^ The message center displays the service stability system message.

Conditions for Clearing the DTC
The conditions for setting the DTC are no longer present and you use the scan tool Clear DTC's function.

Diagnostic Aids
Thoroughly inspect connections or circuitry that may cause an intermittent malfunction. Refer to Testing for Electrical Intermittents, Testing for Intermittent Conditions and Poor Connections, Wiring Repairs and Connector Repairs. Component Tests and General Diagnostics

Test Description
The numbers below refer to the step numbers on the diagnostic table.
3. This step tests for voltage supplied to the PCM from the EBCM.
4. This step tests for a shorted resistor in the EBCM or a short to voltage within the circuit, by verifying that a large voltage drop occurs in the circuit when the test lamp is placed in parallel with the DMM. The PCM may be damaged if either of these conditions is present.

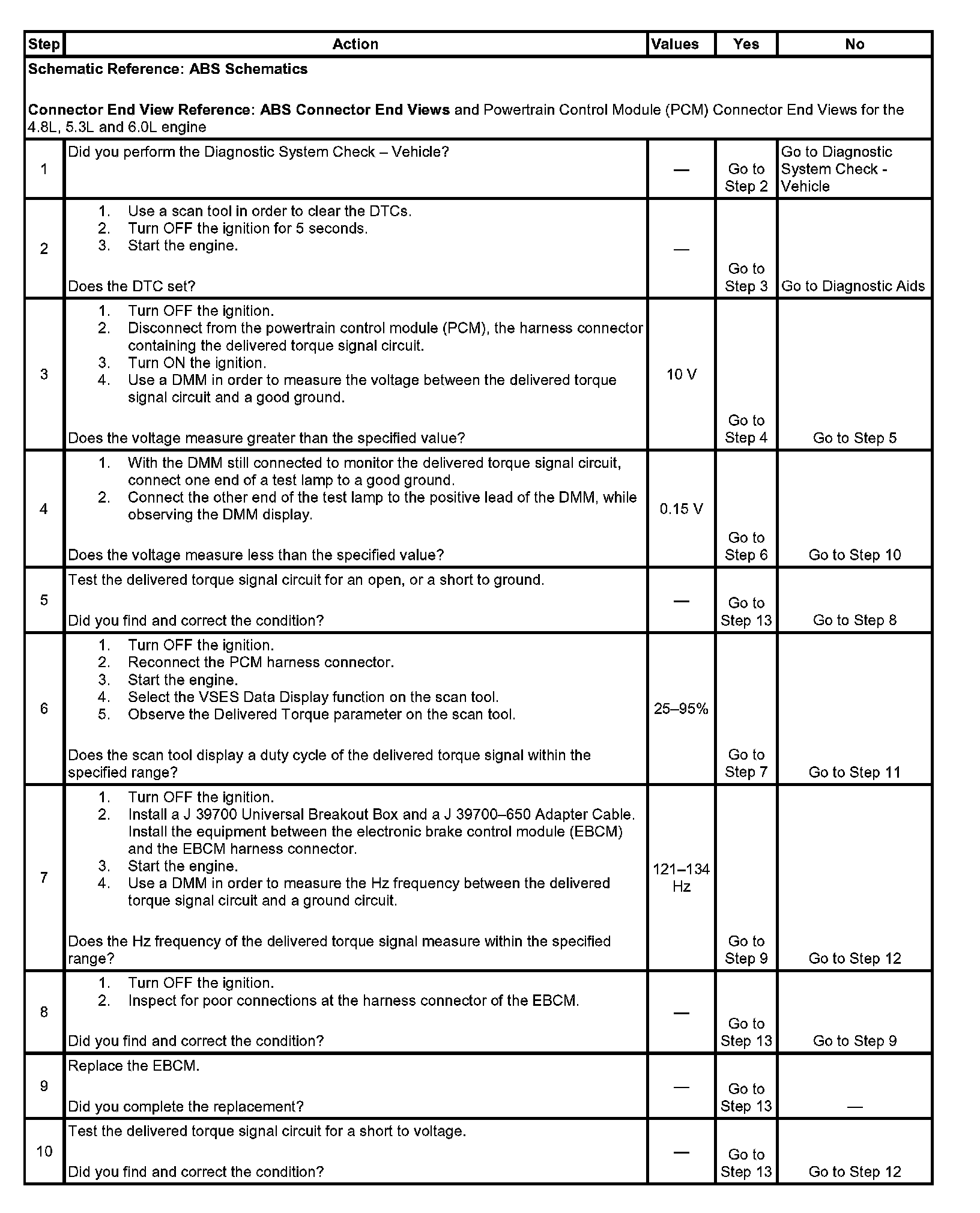

Step 1 - Step 10:

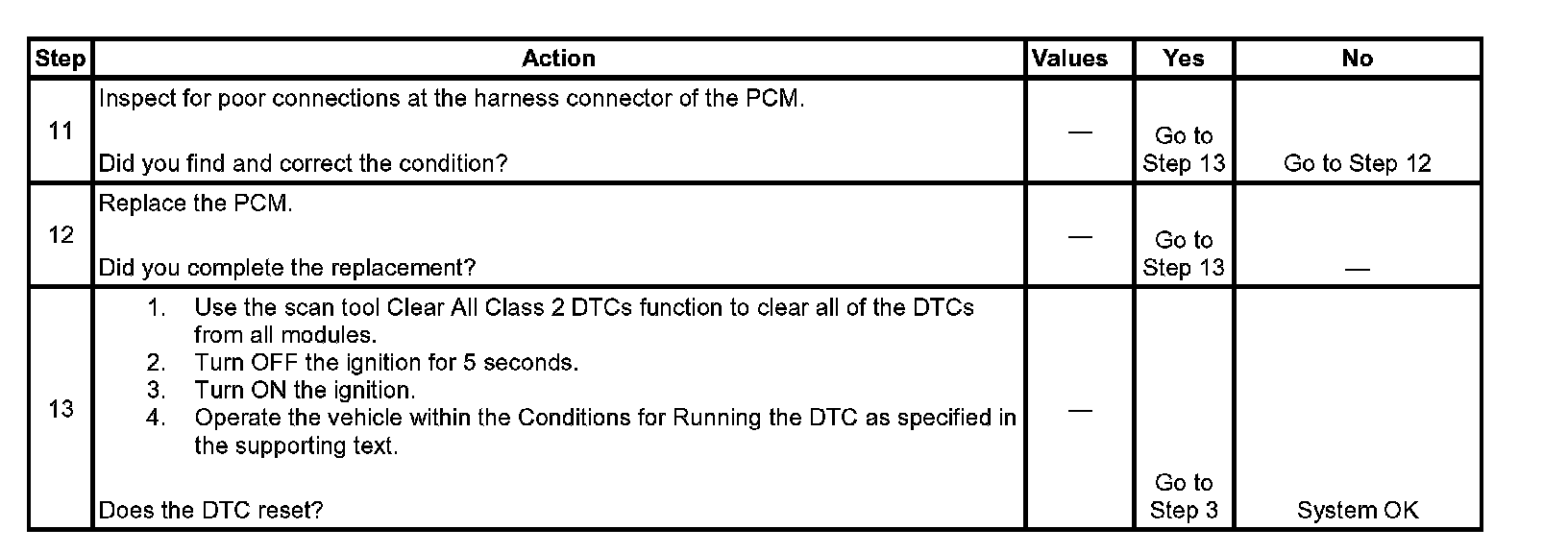

Step 11 - Step 13:
