Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-5.3L VIN Z Flex Fuel >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transfer Case >> BW 4473-NP3 - Transfer Case

BW 4473-NP3 - Transfer Case

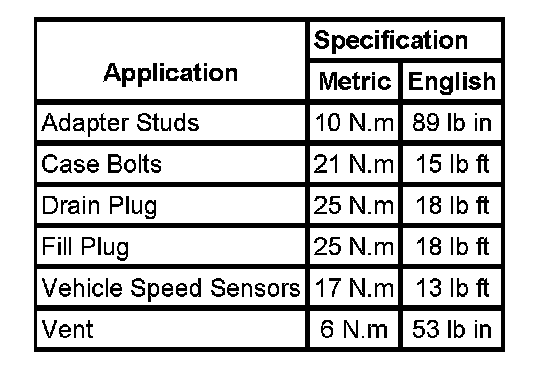

Fastener Tightening Specifications:
