Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Service and Repair >> Removal and Replacement >> NVG 120-NR9 - Transfer Case >> 3. Transfer Case Rear Half Cleaning and Inspection

3. Transfer Case Rear Half Cleaning and Inspection

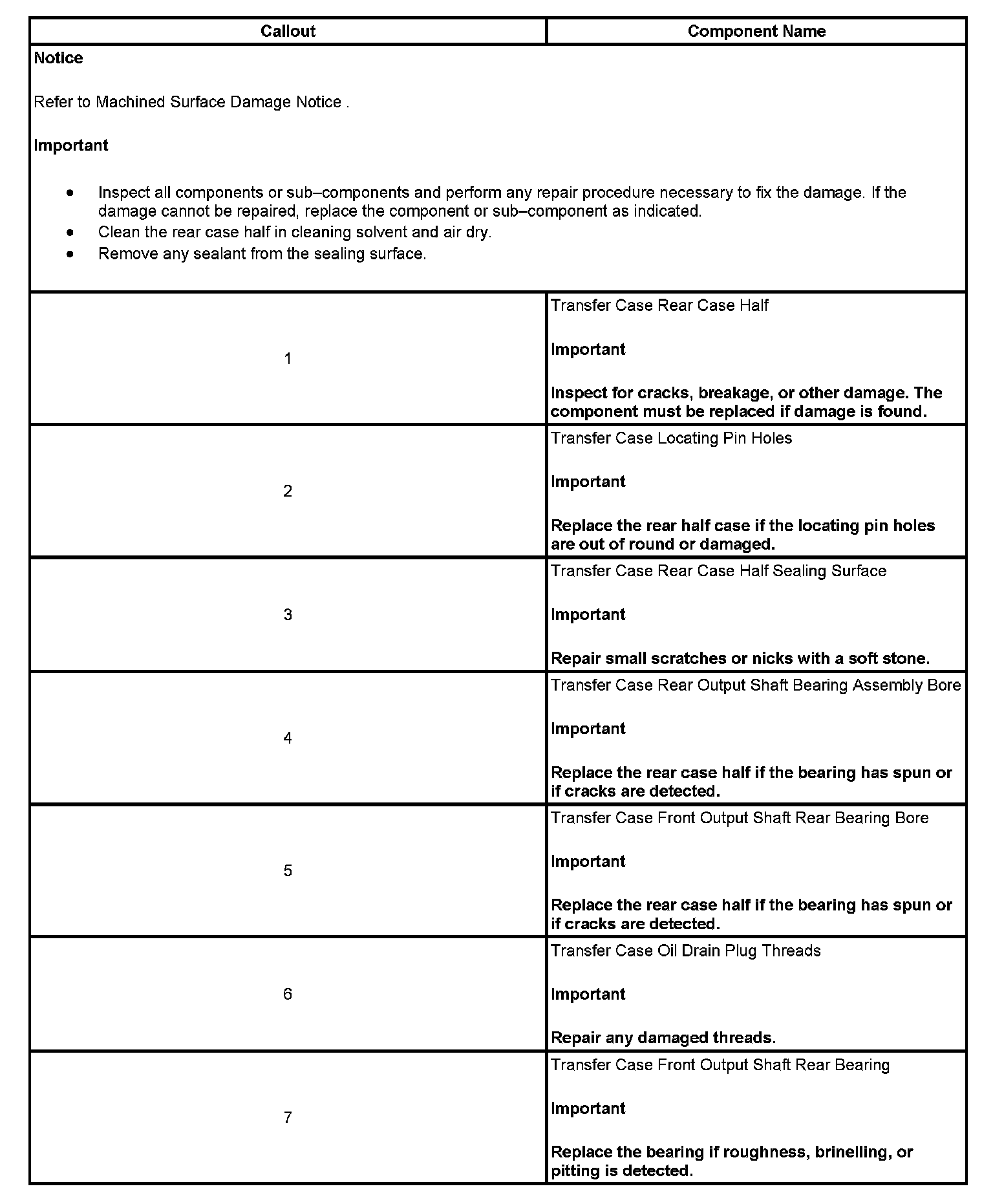

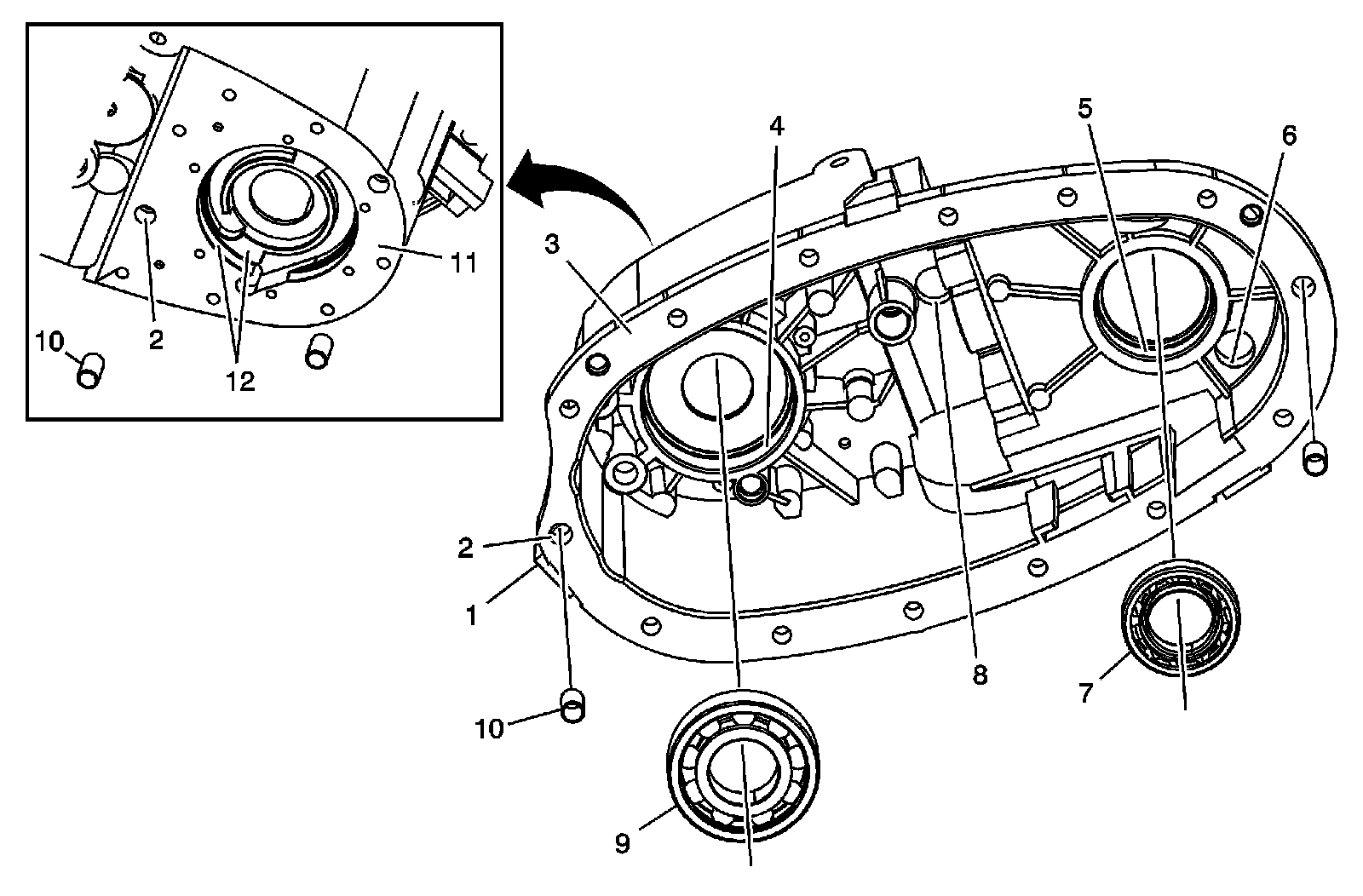

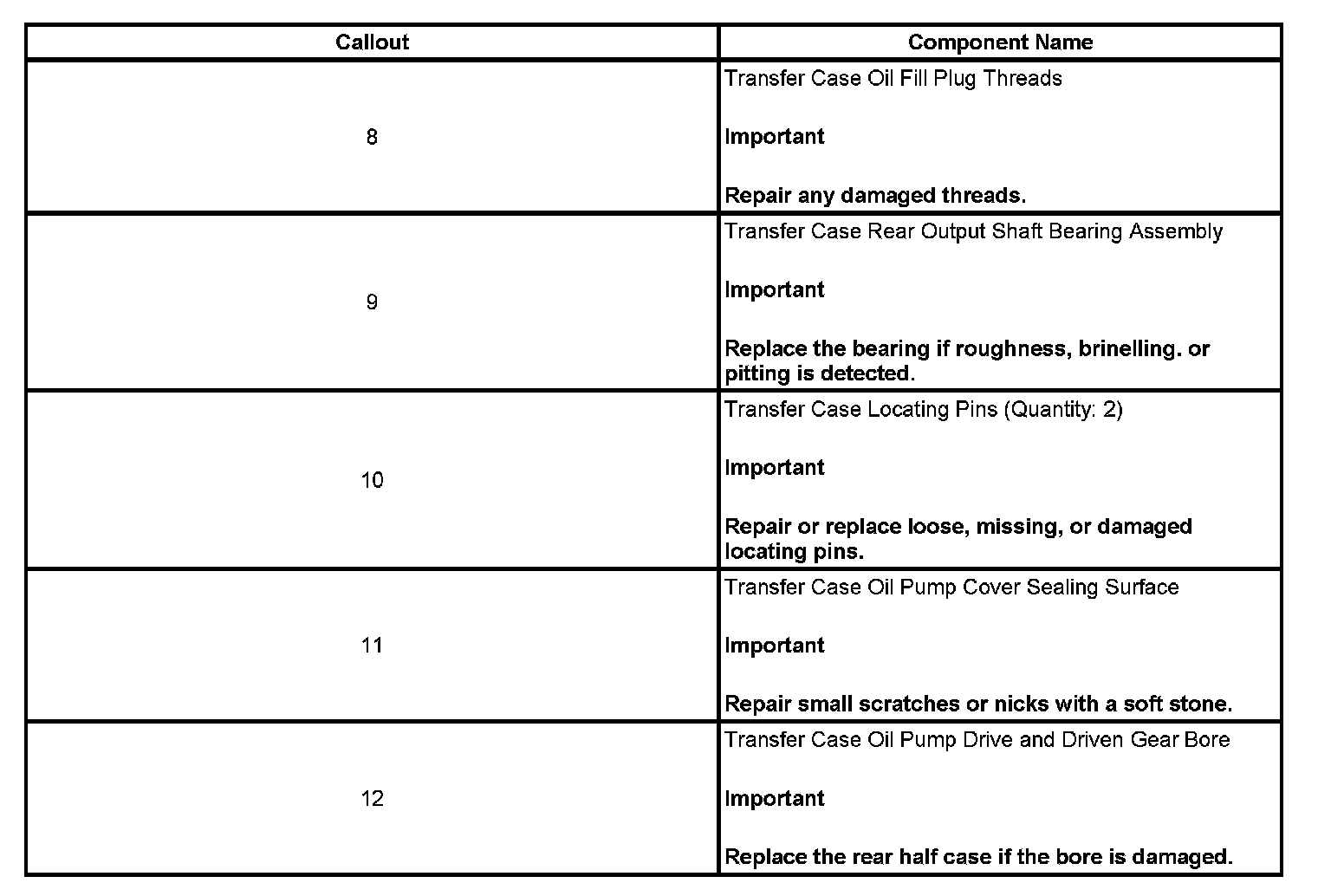

Transfer Case Rear Half Cleaning and Inspection
