Lubricant Level Inspection - Front Drive Axle

Lubricant Level Inspection - Front Drive Axle
1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Make sure the vehicle is level.
3. Inspect the front axle for leaks. Repair as necessary.
4. Clean the area around the front axle fill plug.

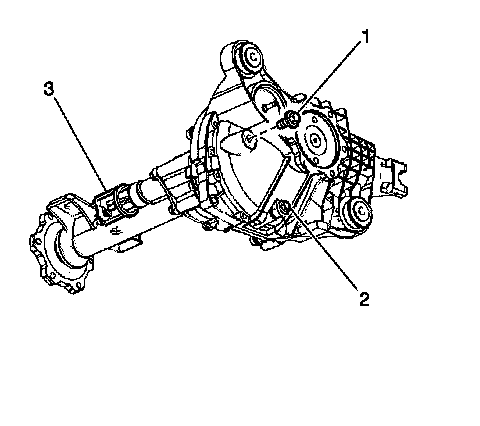

5. Remove the front axle fill plug (1).
6. Inspect the oil level.
^ For the 8.25 inch axle, the oil level should be between 12 - 16 mm (0.50 - 0.625 inch) below the fill plug opening.
^ For the 9.25 inch axle, the oil level should be between 0 - 6 mm (0 - 0.25 inch) below the fill plug opening.
7. If the level is low, add oil until the level is between 12 - 16 mm (0.50 - 0.625 inch) for the 8.25 inch axle or 0 - 6 mm (0 - 0.25 inch) for the 9.25 inch axle. Use the correct fluid.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

8. Install the fill plug.
^ Tighten the plug to 33 Nm (24 lb ft).
9. Lower the vehicle.
