Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> C300 - C399 >> C399

C399

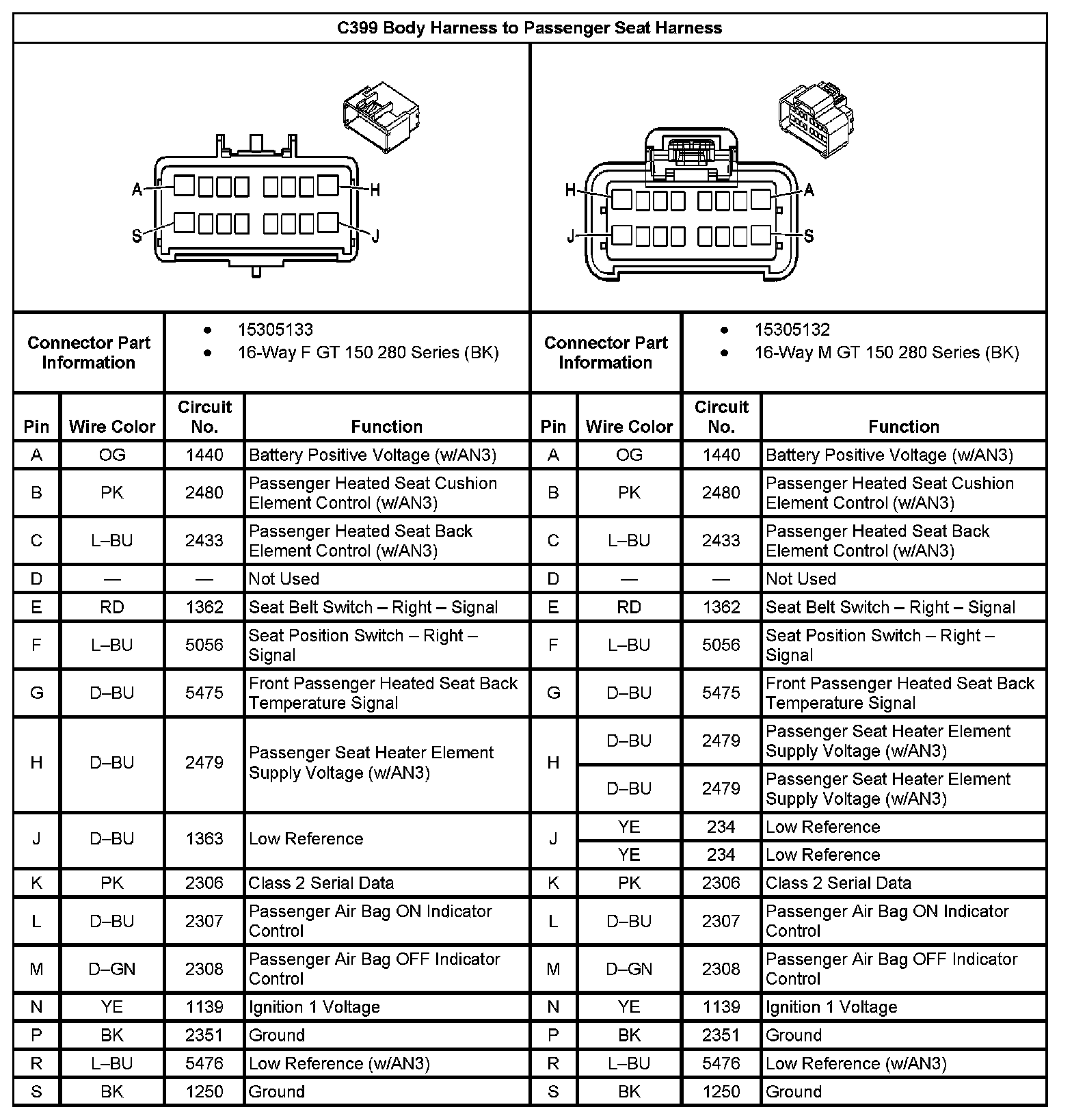

C399 Body Harness To Passenger Seat Harness:
