C249
C249

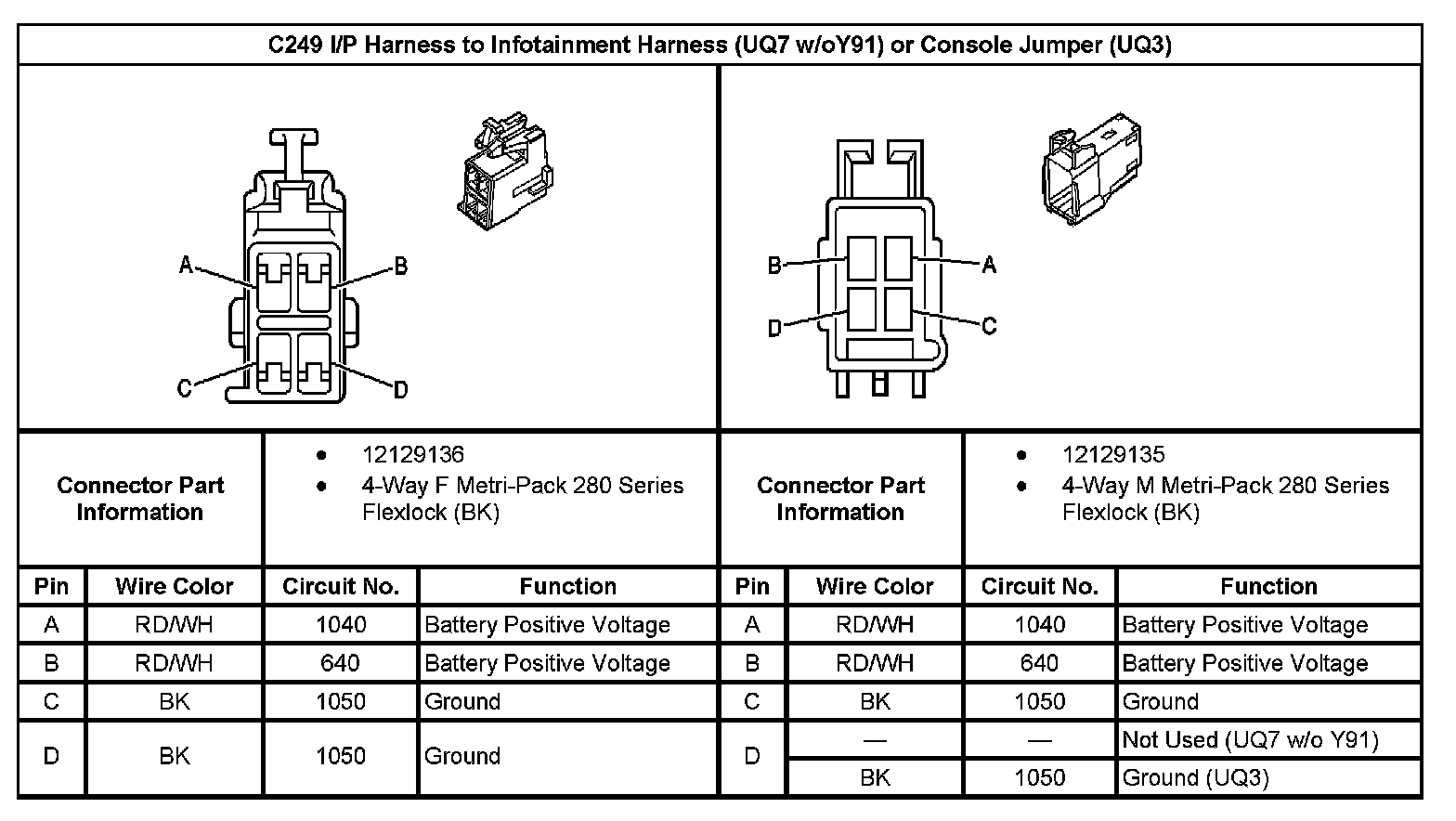

C249 I/P Harness To Infotainment Harness (With RPO Code UQ7 Without RPO Code Y91) Or Console Jumper (With RPO Code UQ3):
