Ride Height Sensor: Diagrams

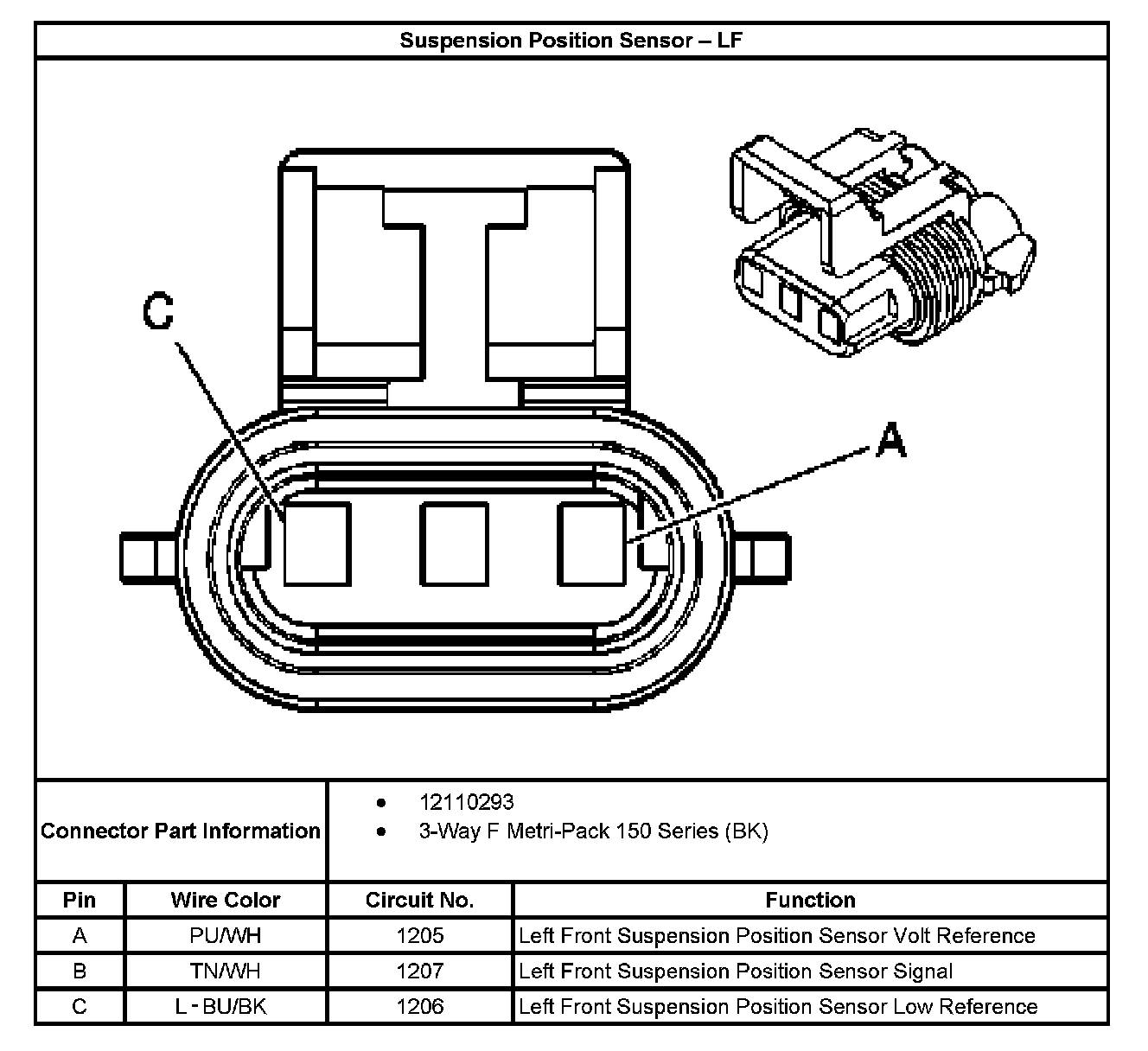

Suspension Position Sensor - LF:

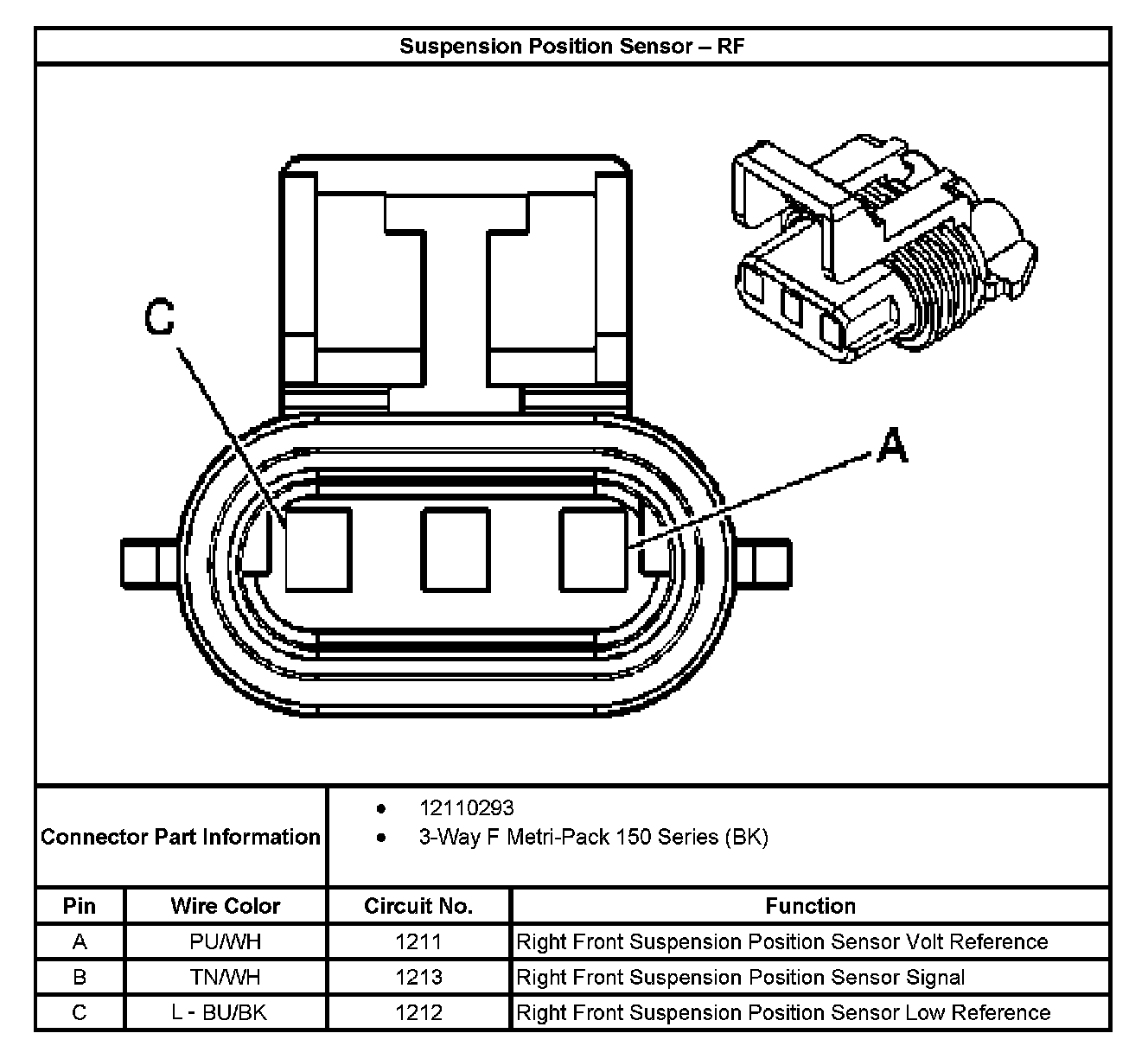

Suspension Position Sensor - RF:

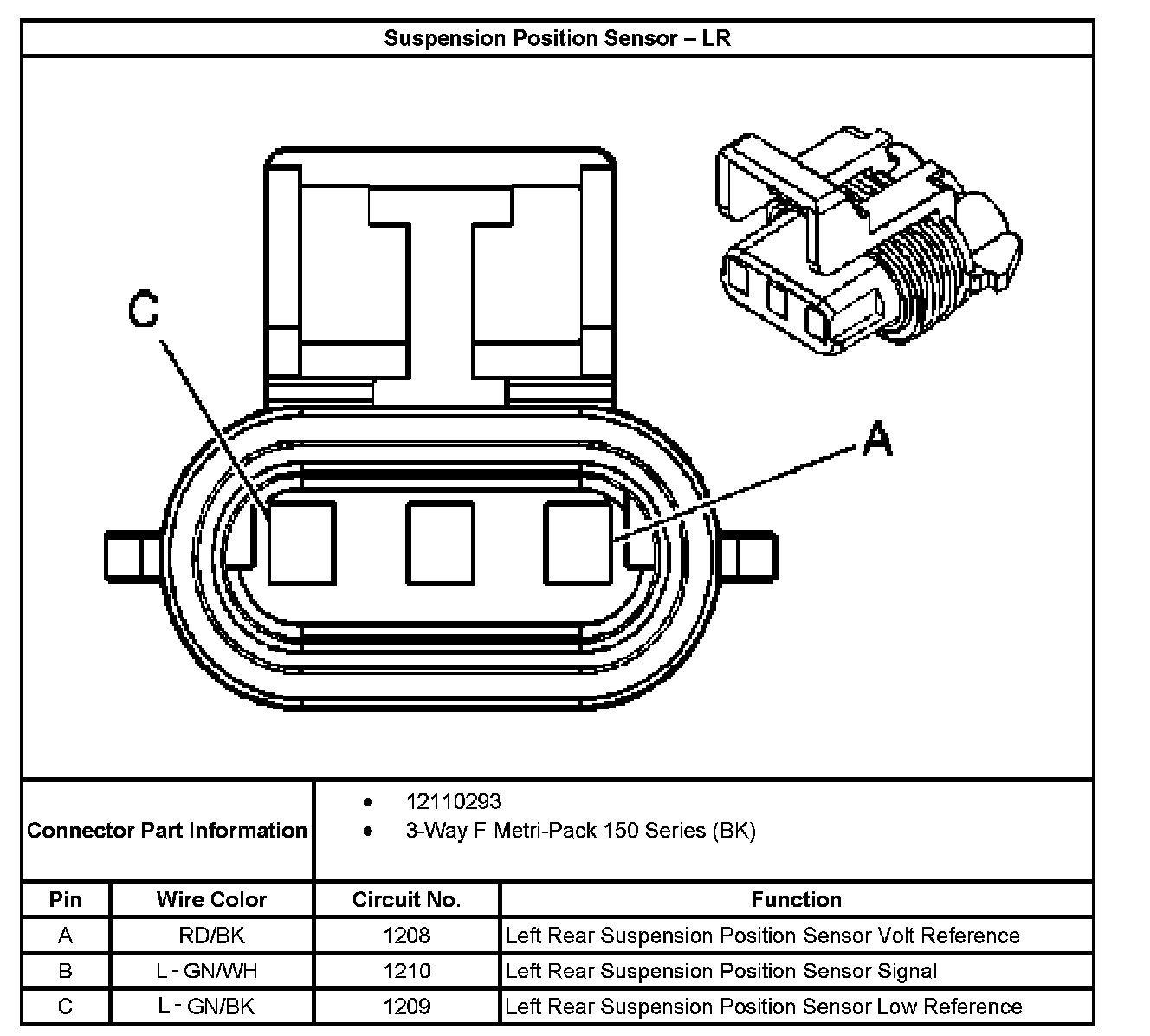

Suspension Position Sensor - LR:

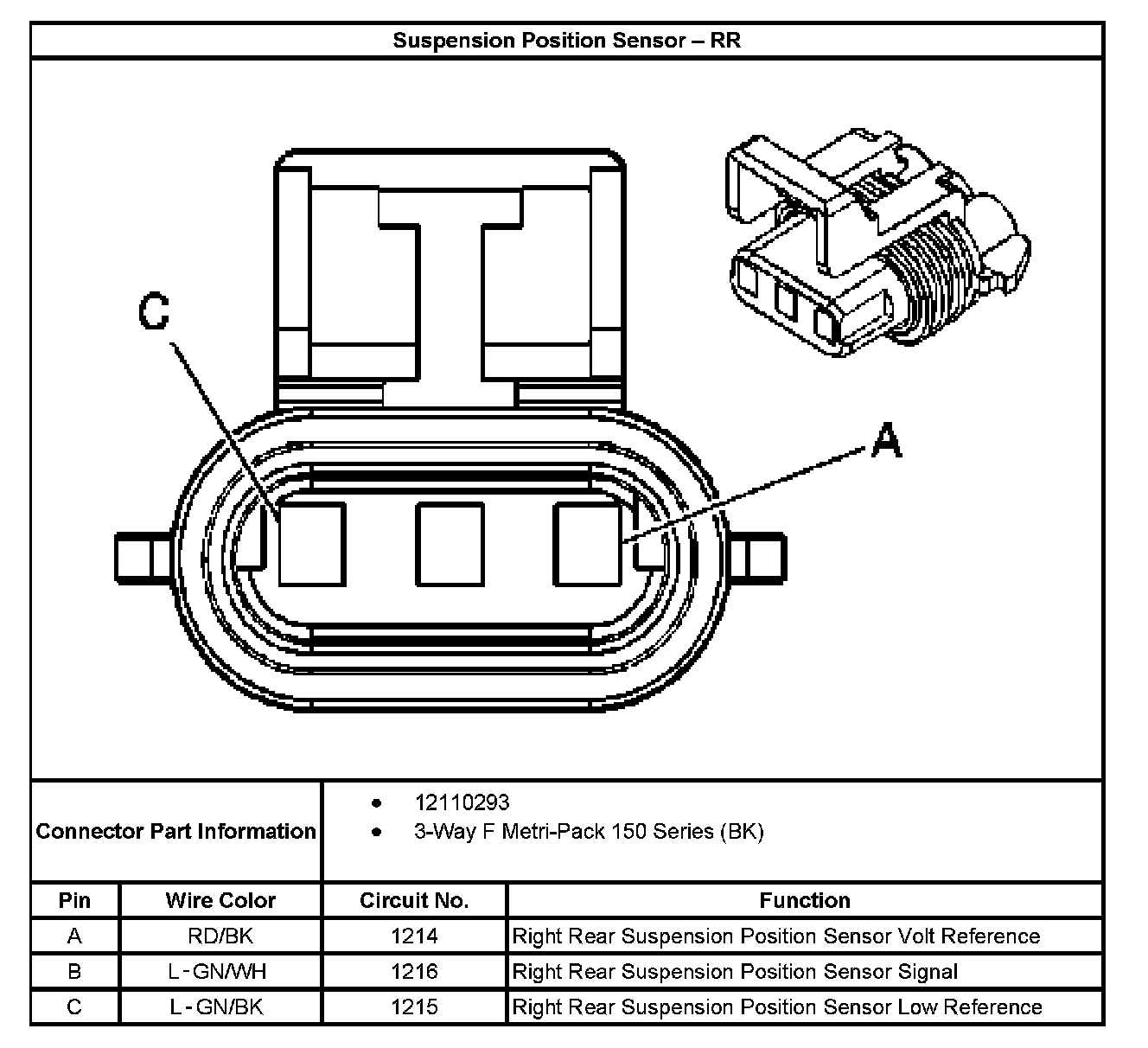

Suspension Position Sensor - RR:
