Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-5.3L VIN T >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Power Seat Does Not Move Forward/Rearward (With Memory)

Power Seat Does Not Move Forward/Rearward (With Memory)

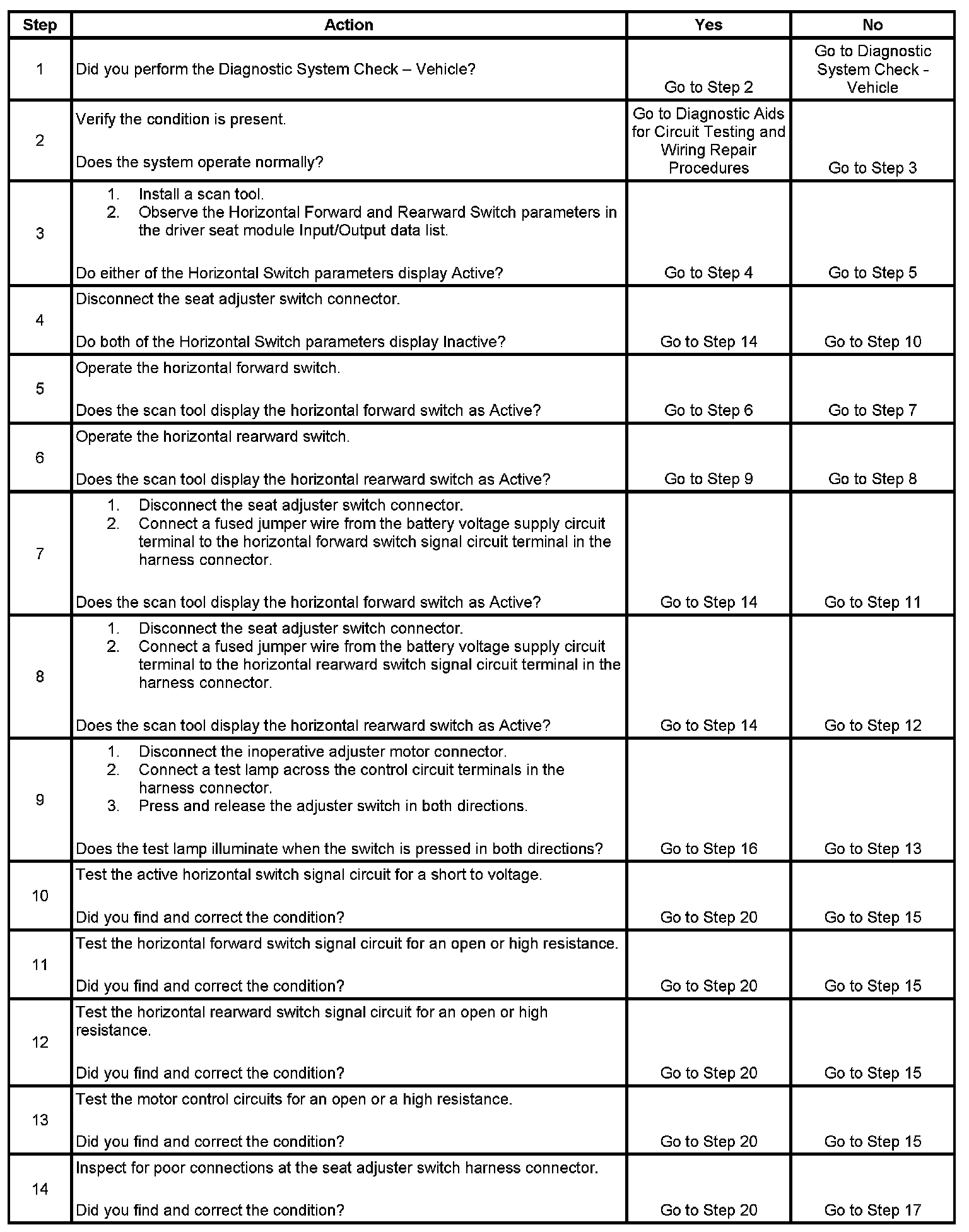

Step 1 - Step 14:

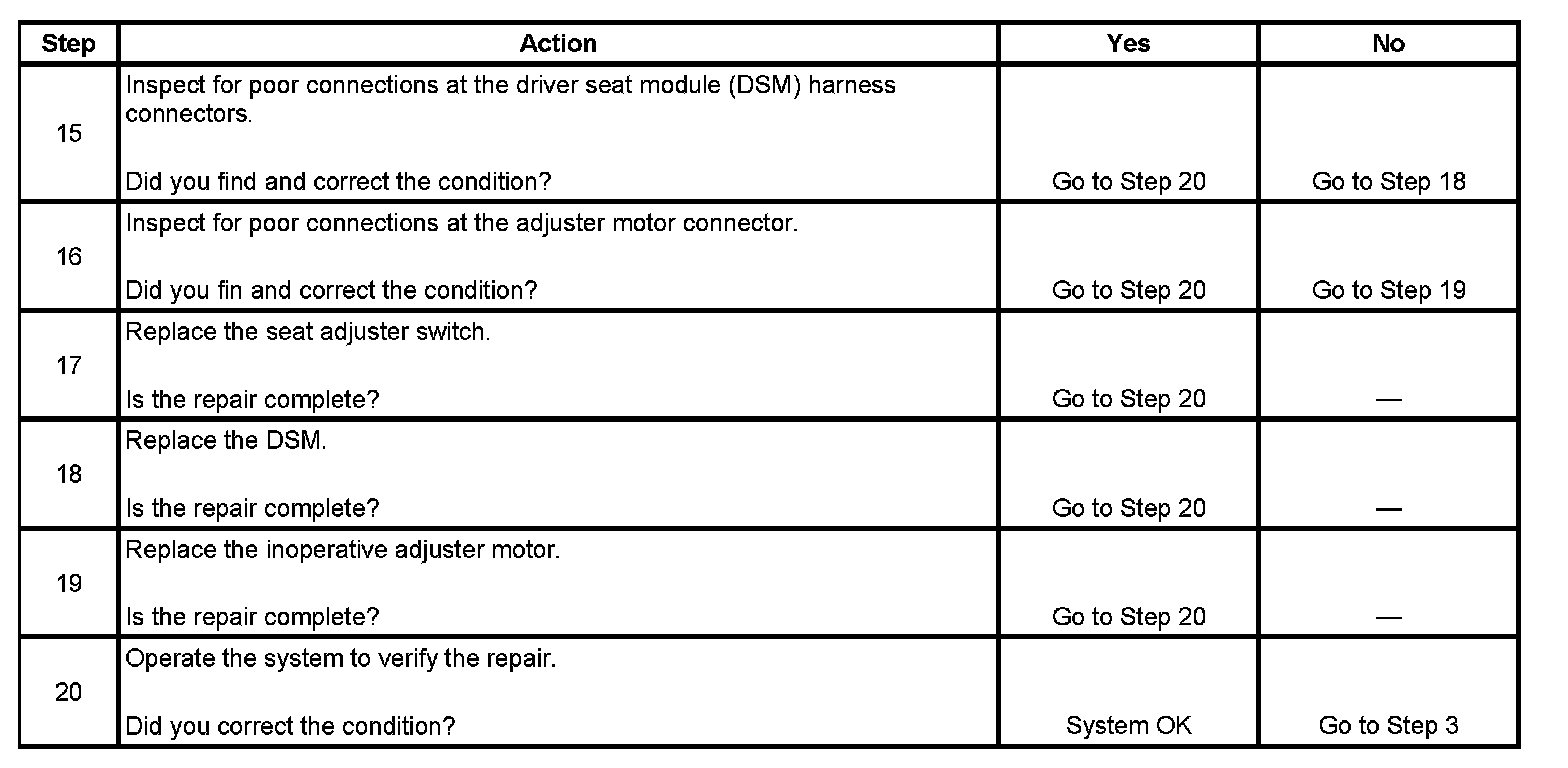

Step 15 - Step 20:
