Front Disc Brake Splash Shield Replacement

Disc Brake Splash Shield Replacement - Front

Removal Procedure

Caution: Refer to Brake Dust in Service Precautions.

1. Raise and support the vehicle. Refer to Vehicle Lifting..
2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
3. Remove the hub and bearing assembly. Refer to Wheel Hub, Bearing, and Seal Replacement (RWD) or Wheel Hub, Bearing, and Seal Replacement (4WD) in Front Suspension.

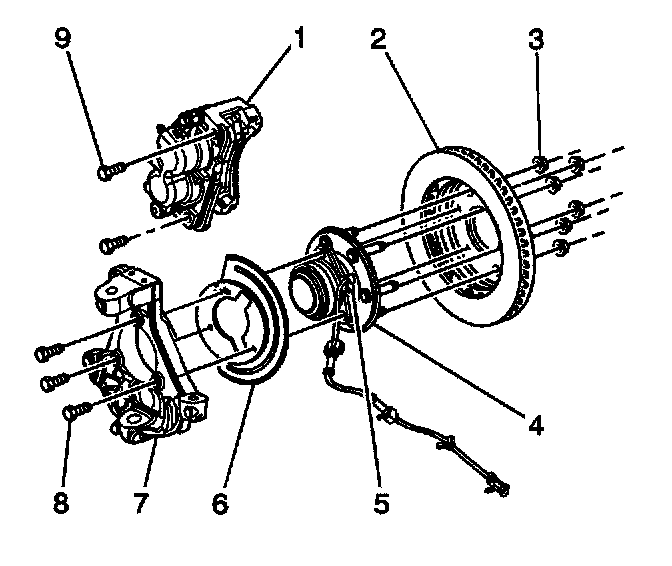

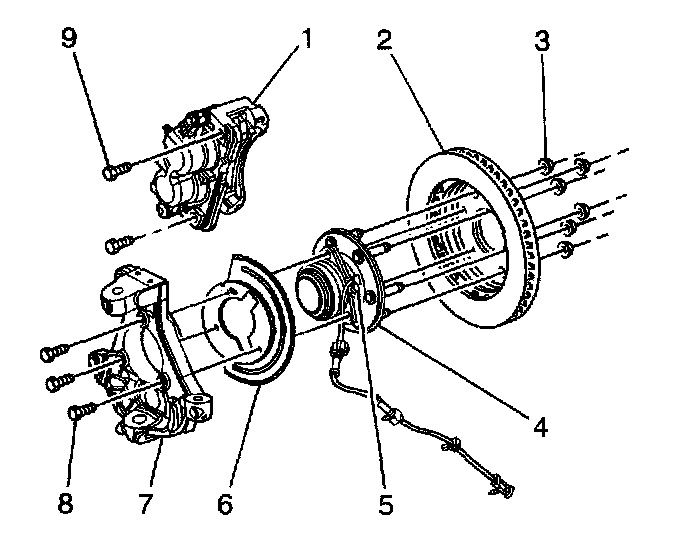

4. Remove the splash shield (6) (15 Series).

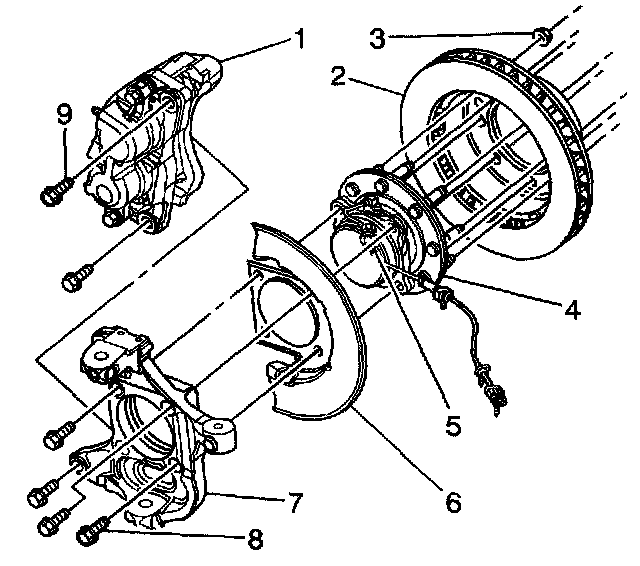

5. Remove the splash shield (6) (25 Series).

Installation Procedure





1. install the splash shield (6) (25 Series).





2. Install the splash shield (6) (15 Series).
3. Install the hub and bearing assembly. Refer to Wheel Hub, Bearing, and Seal Replacement (RWD) or Wheel Hub, Bearing, and Seal Replacement (4WD) in Front Suspension.
4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
5. Remove the safety stands.
6. Lower the vehicle.
