Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Defogger Inoperative - Rear Window (W/ Cargo Doors)

Defogger Inoperative - Rear Window (W/ Cargo Doors)

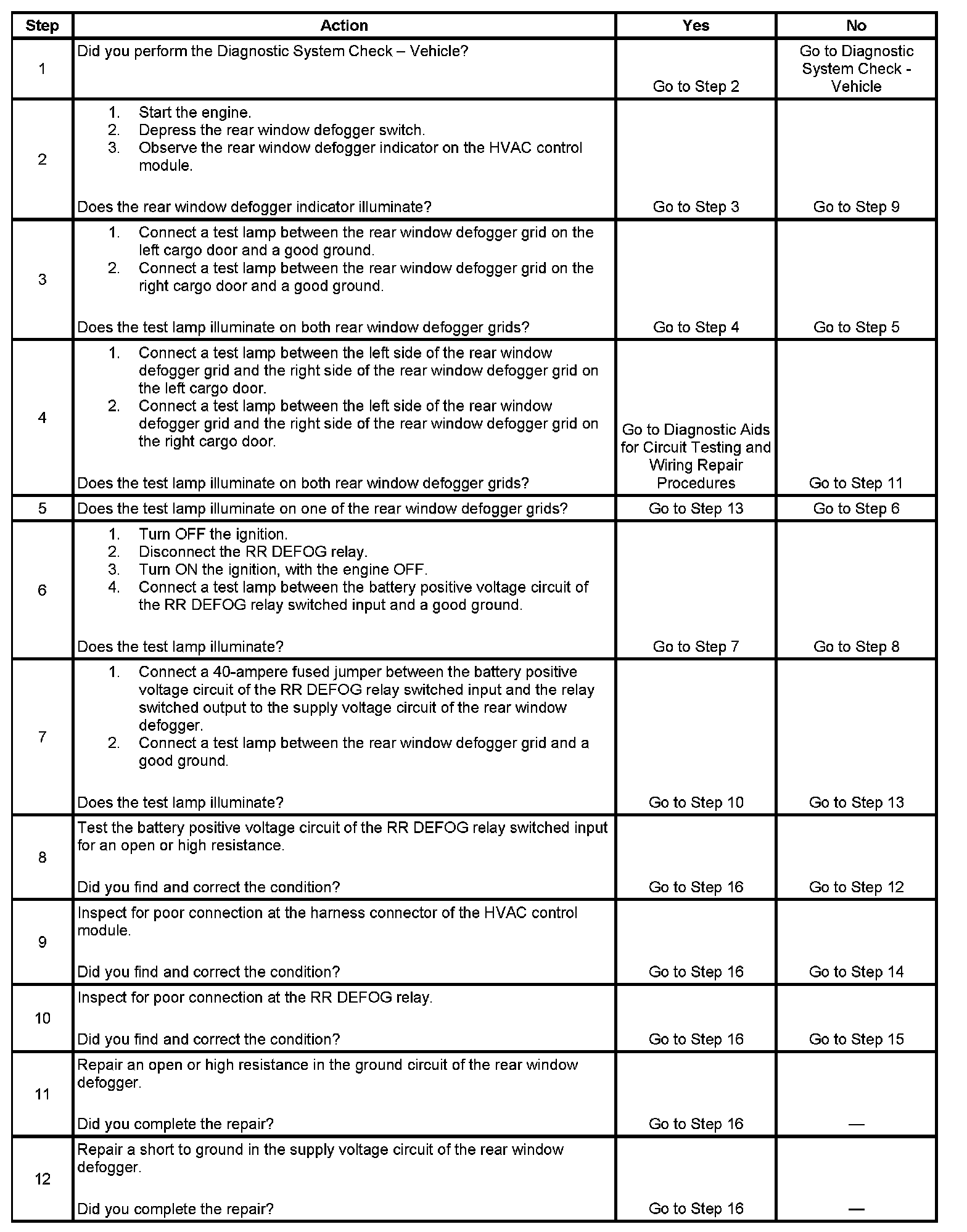

Step 1 - Step 12:

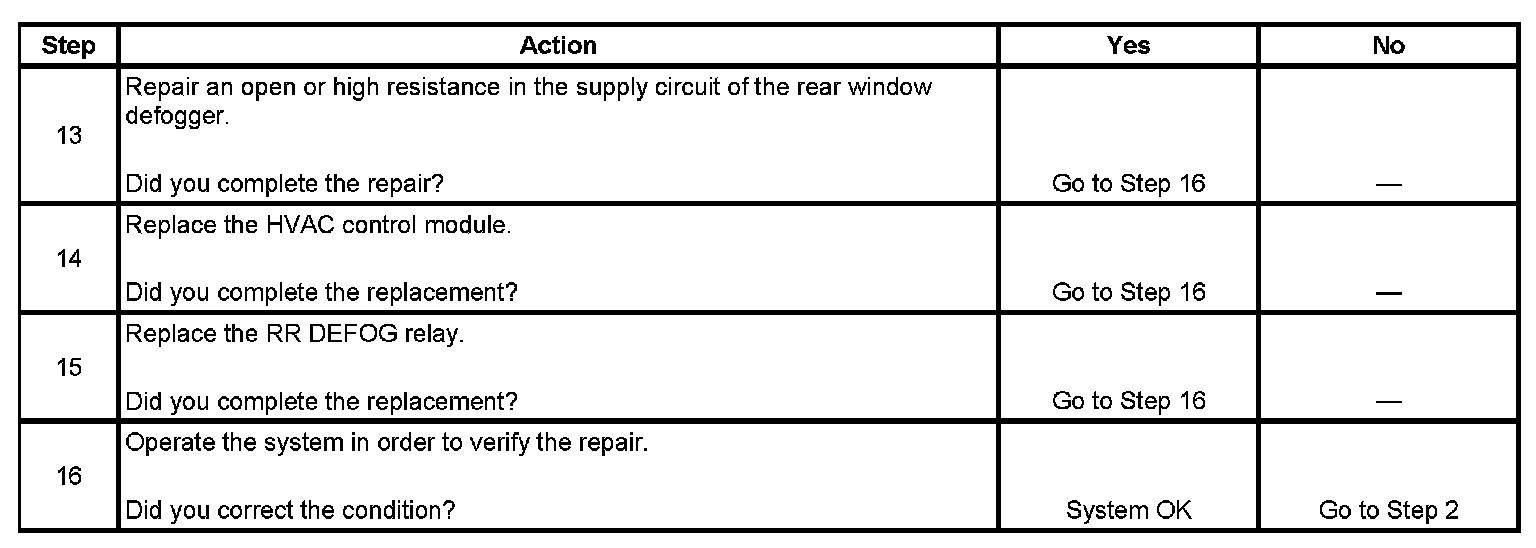

Step 13 - Step 16:
