Transmission Fluid Cooler Hose/Pipe Replacement

Transmission Fluid Cooler Hose/Pipe Replacement
Removal Procedure





1. Remove the grille assembly.

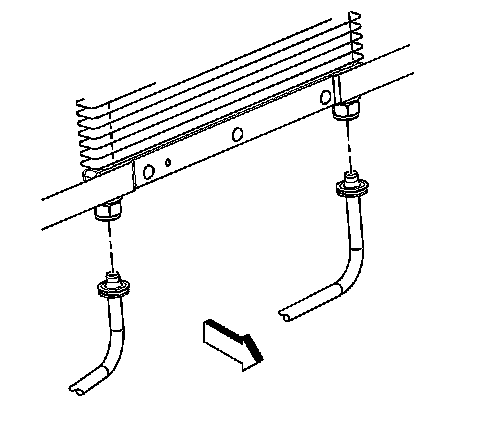

2. Remove the transmission fluid cooler hose from the Auxiliary oil cooler.

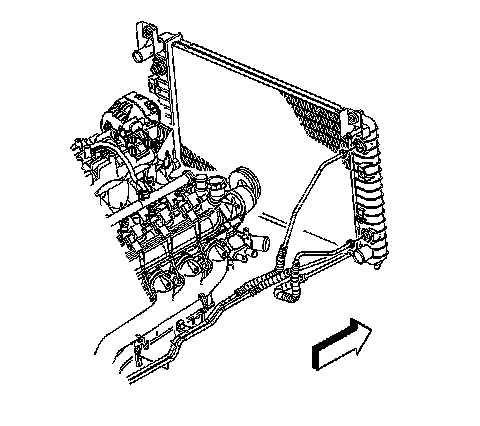

3. Remove the transmission fluid cooler hose from the radiator.





4. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
5. Remove the engine protection shield.

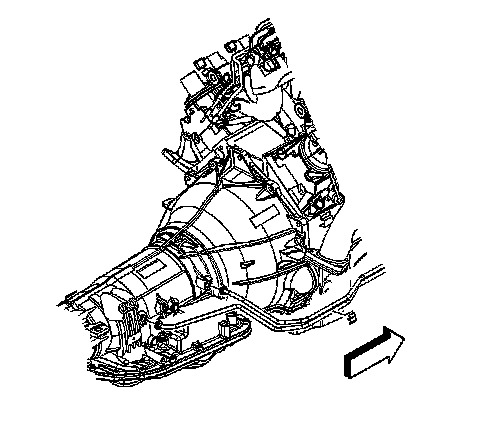

6. Remove the transmission fluid cooler hoses from the transmission.
7. Remove the transmission fluid cooler hoses from the retainer on the engine.
8. Remove the transmission fluid cooler hoses from the vehicle.

Installation Procedure





1. Install the transmission fluid cooler hoses to the vehicle.
2. Install the transmission fluid cooler hoses to the transmission.
3. Install the transmission fluid cooler hoses to the retainer on the engine.
4. Install the engine protection shield.
5. Lower the vehicle.





6. Install the transmission fluid cooler hose to the radiator.





7. Install the transmission fluid cooler hose from the Auxiliary oil cooler.
8. Install the grille assembly.
