Automatic Level Control



Automatic Level Control Suspension Component Views

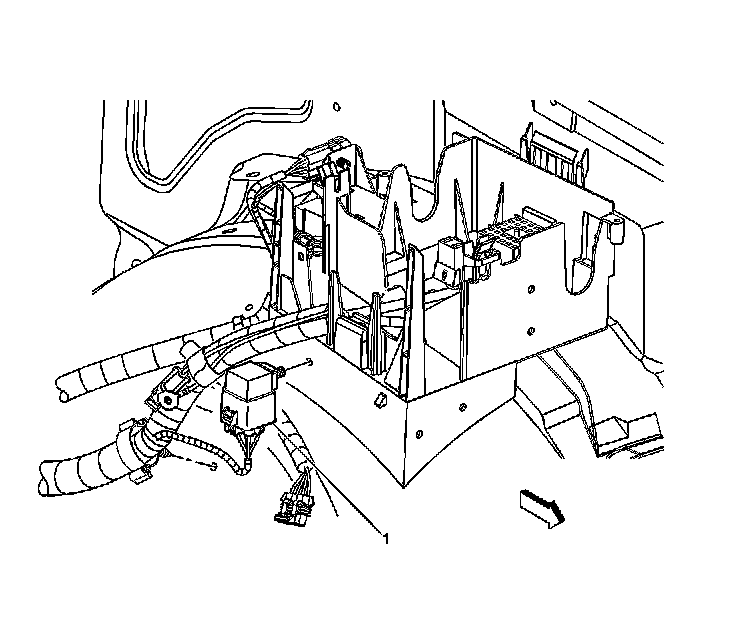

Automatic Level Control (ALC) Compressor Relay

Automatic Level Control (ALC) Compressor Relay:





1 - Automatic Level Control (ALC) Compressor Relay

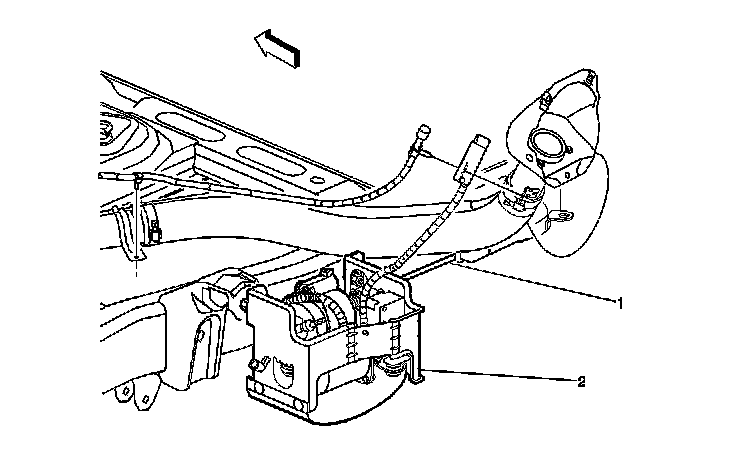

Rear Suspension Components - ALC

Rear Suspension Components - ALC:





1 - Rear Crossmember Frame
2 - Automatic Level Control (ALC) Air Compressor
