Lower Control Arm Replacement

Lower Control Arm Replacement

^ Tools Required
- J 43631 Ball Joint Separator
- J 45851 Ball Joint Separator Protector Adapters

Removal Procedure





1. Raise and support the vehicle.

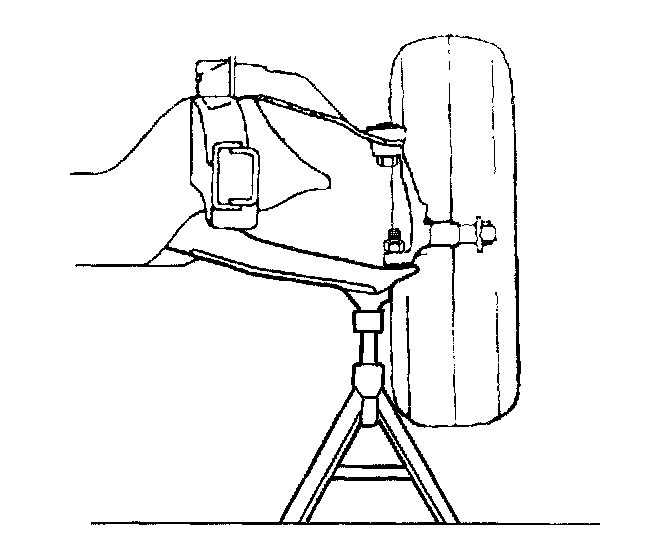

2. Support the lover control arm with a safety stand.
3. Remove the tire and wheel.
4. Remove the stabilizer shaft links from the lower control arm.
5. Remove the shock absorber lower nut and the bolt.
6. Remove the torsion bars.
7. Remove the wheel drive shaft.

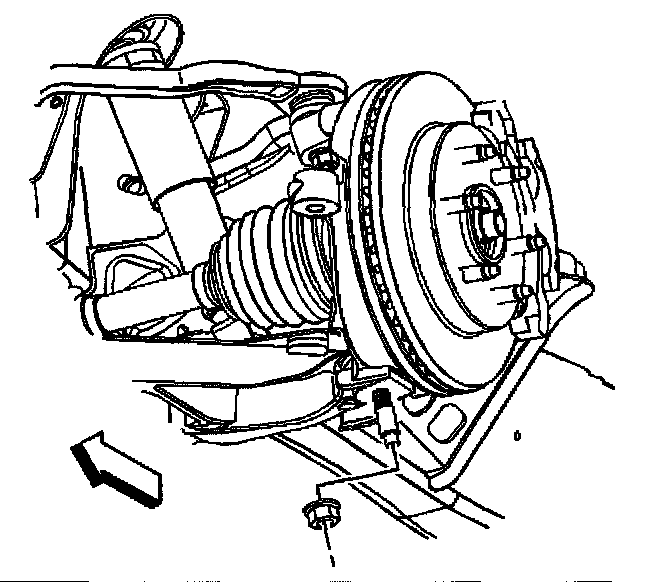

8. Remove the lower ball joint retaining nut.

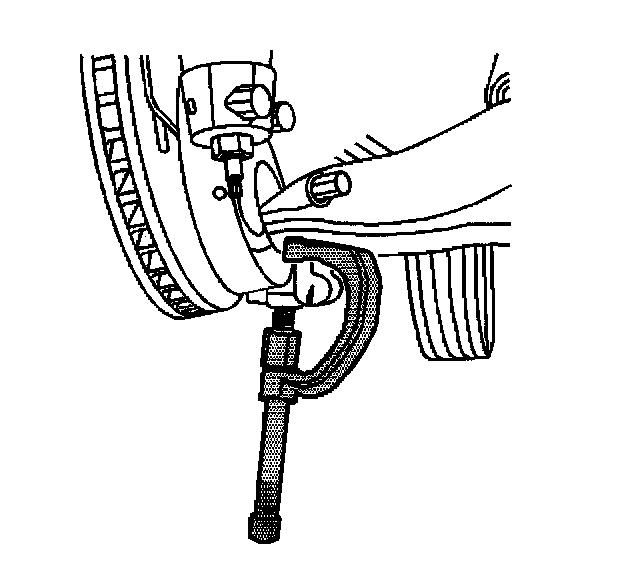

9. Disconnect the lower ball joint stud from the steering knuckle using J43631 and J45851.

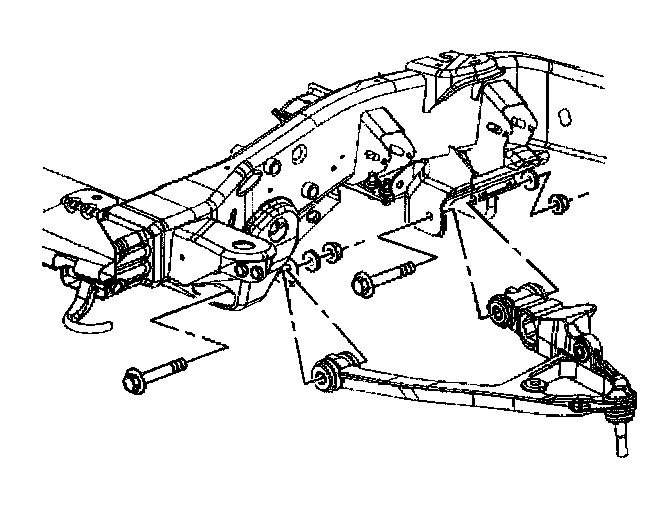

10. Remove the lower control arm nuts and the 15-series washers.
11. Remove the lower control arm bolts.

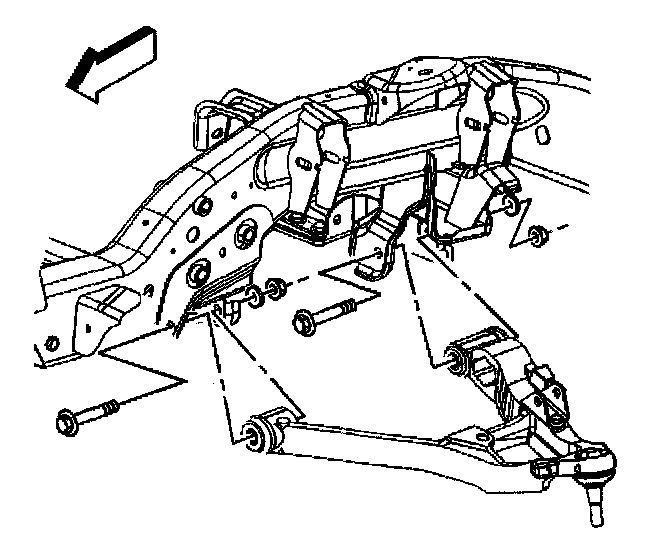

12. Remove the lower control arm nuts and the 25/35-series washers.
13. Remove the lower control arm bolts.
14. Remove the lower control arm.

Installation Procedure





1. Install the lower control arm.

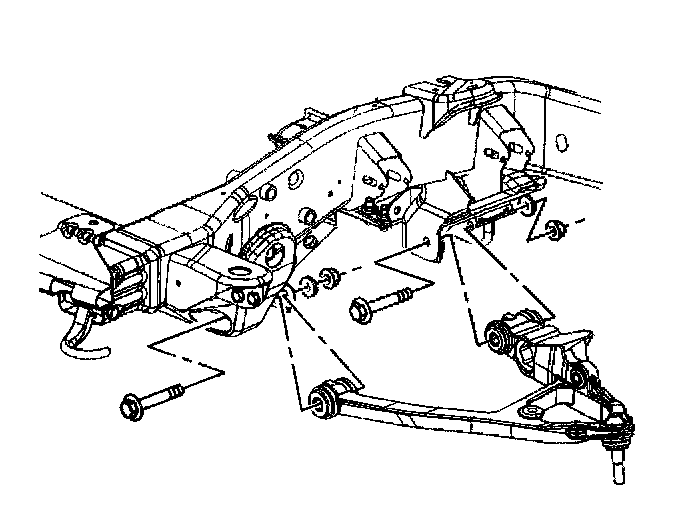

2. Install the lower control arm 1 5-series bolts.

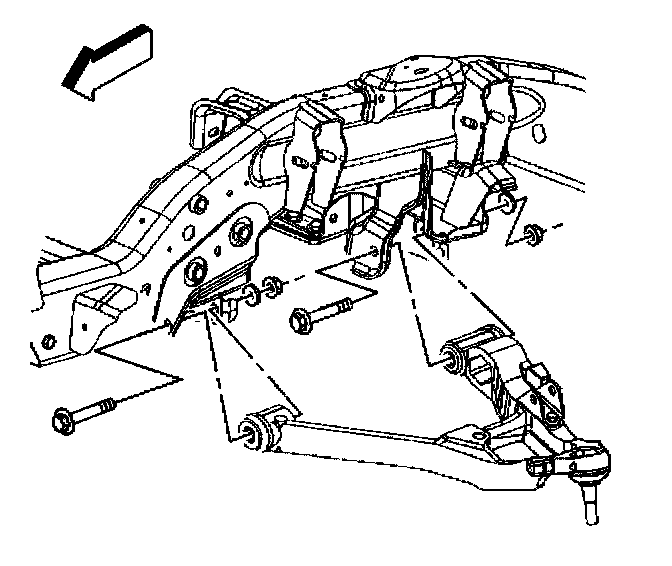

3. Install the lower control arm 25/35-series bolts.






Notice: Refer to Fastener Notice in Cautions and Notices.

4. Install the lower control arm retaining nuts.
^ Tighten the nuts to 175 Nm (129 ft. lbs.).
5. Connect lower ball joint stud to the steering knuckle.
6. Install the wheel drive shaft.

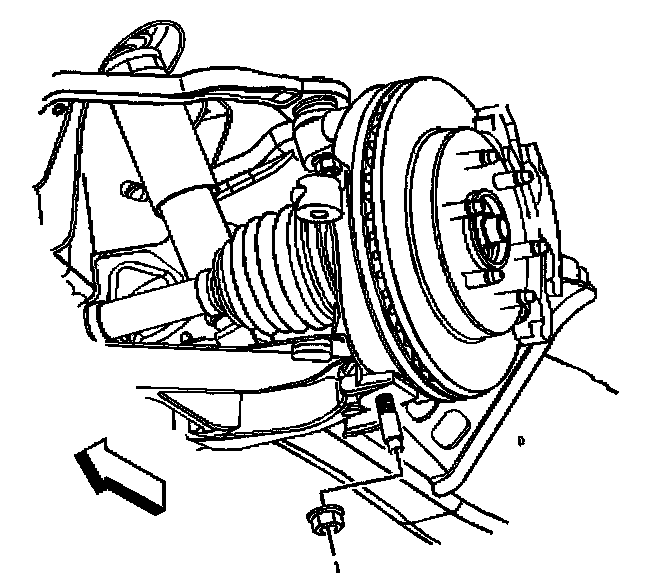

7. Install the nut to the lower ball joint stud.
^ Tighten the nut to 100 Nm (74 ft. lbs.).
8. Install the torsion bars.
9. Install the shock absorber lower nut and bolt.
10. Install the stabilizer shaft links to the lower control arm.
11. Install the tire and wheel.
12. Remove the safety stands.
13. Lower the vehicle.
14. Align the vehicle.
