Tie Rod Replacement - Inner

Tie Rod Replacement - Inner

^ Tools Required
- J 34028 Inner Tie Rod Wrench

Removal Procedure
1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the engine protection shield, if equipped.
3. Remove the outer tie rod end.

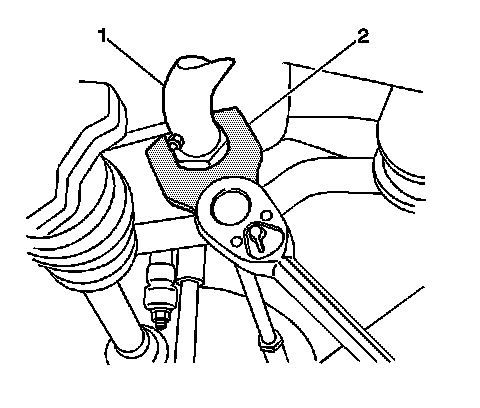

4. Remove the inner tie rod end using the J 34028 (2).

Installation Procedure

Important: Perform the following procedure before installing the new tie rod ends:

1. Remove all traces of the oil, grease, or other contaminants.
2. Clean the threads of the tie rod with denatured alcohol or the equivalent and allow to dry.
3. Apply red LOCTITE Threadlocker, GM P/N 12345493 (Canadian P/N 10953488) to the threads of the inner tie rod.





4. Notice: Refer to Fastener Notice in Service Precautions.

Install the inner tie rod to the relay rod.
^ Using the J 34028 (2) tighten the tie rod to 100 Nm (74 ft. lbs.).
5. Install the outer tie rod end.
7. Lower the vehicle.
8. Verify the wheel alignment. Refer to Wheel Alignment Specifications.
