Steering Linkage (Non-Rack & Pinion)

Pitman Arm Replacement

^ Tools Required
- J 6632-01 Pitman Arm Puller
- J 29107-A Pitman Arm Puller

Removal Procedure





1. Raise and suitable support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the power steering gear.
3. Install the power steering gear into a vise.

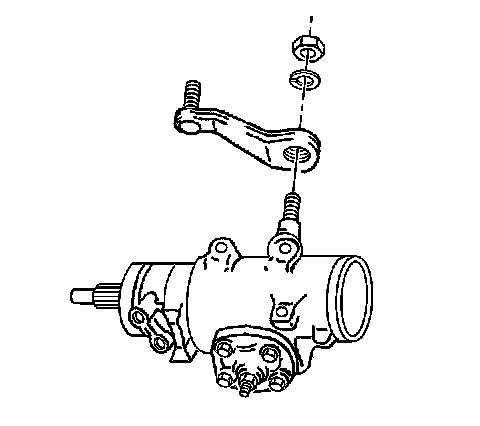

4. Remove the pitman arm nut and washer.

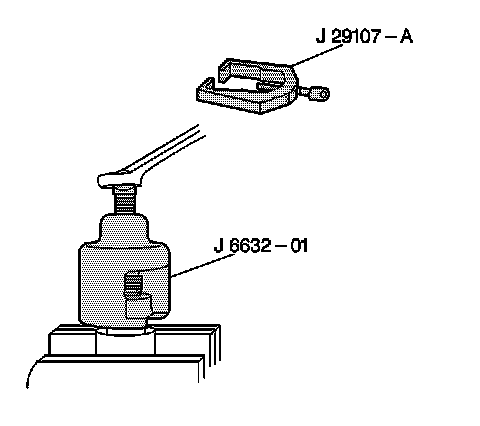

5. Remove the pitman arm from the pitman shaft using J 6632-01 or J 29107-A .

Installation Procedure





1. Install the pitman arm to the power steering gear.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install a new pitman arm washer and nut.
^ Tighten the nut to 250 Nm (184 ft. lbs.).
3. Remove the power steering gear from the vise.
4. Install the power steering gear.
5. Lower the vehicle.
6. Check the wheel alignment. Refer to Measuring Wheel Alignment.
