Pitman Arm Replacement

Pitman Arm Replacement

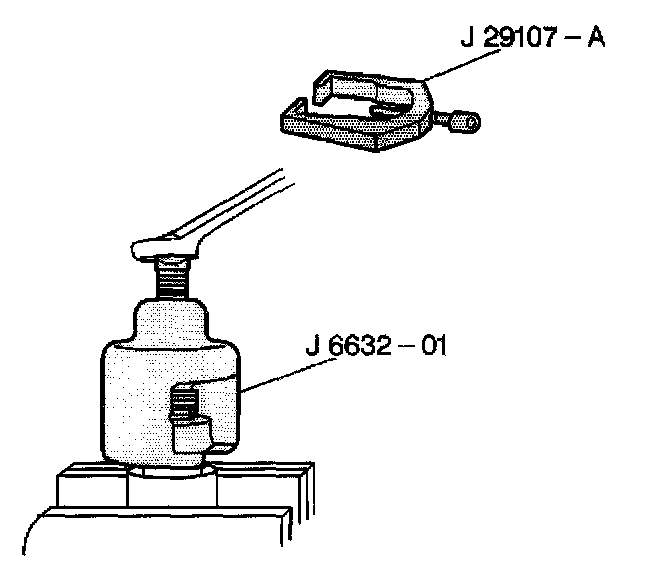

^ Tools Required
- J 6632-01 Pitman Arm Puller
- J 29107-A Pitman Arm Puller

Removal Procedure





1. Raise and suitable support the vehicle.
2. Remove the power steering gear.
3. Install the power steering gear into a vise.
4. Remove the pitman arm nut and washer.

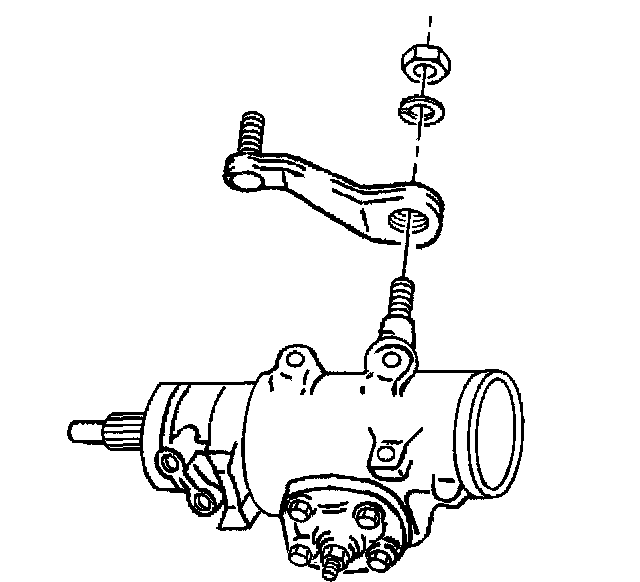

5. Remove the pitman arm from the Pitman shaft using J 6632-01 or J 29107-A.

Installation Procedure

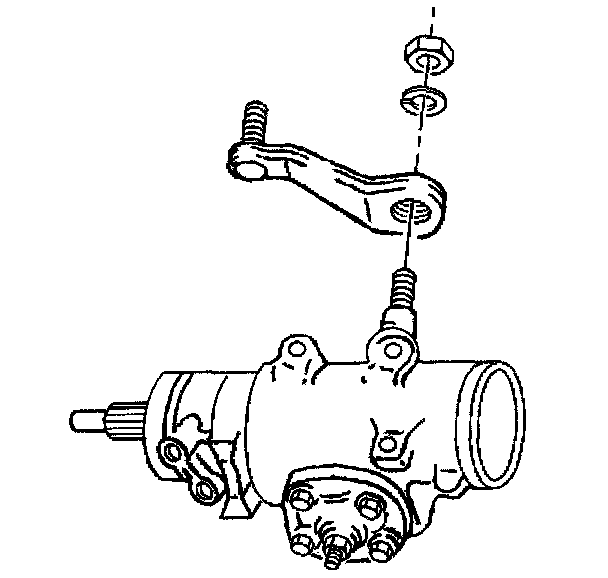

1. Install the pitman arm to the power steering gear.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install a new pitman arm washer and nut.
^ Tighten the nut to 250 Nm (184 ft. lbs.).

3. Remove the power steering gear from the vise.
4. Install the power steering gear.
5. Lower the vehicle.
6. Check the wheel alignment.
