Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> Rear Differential >> 8.6 Inch Axle Differential Adjustment Shim Specifications

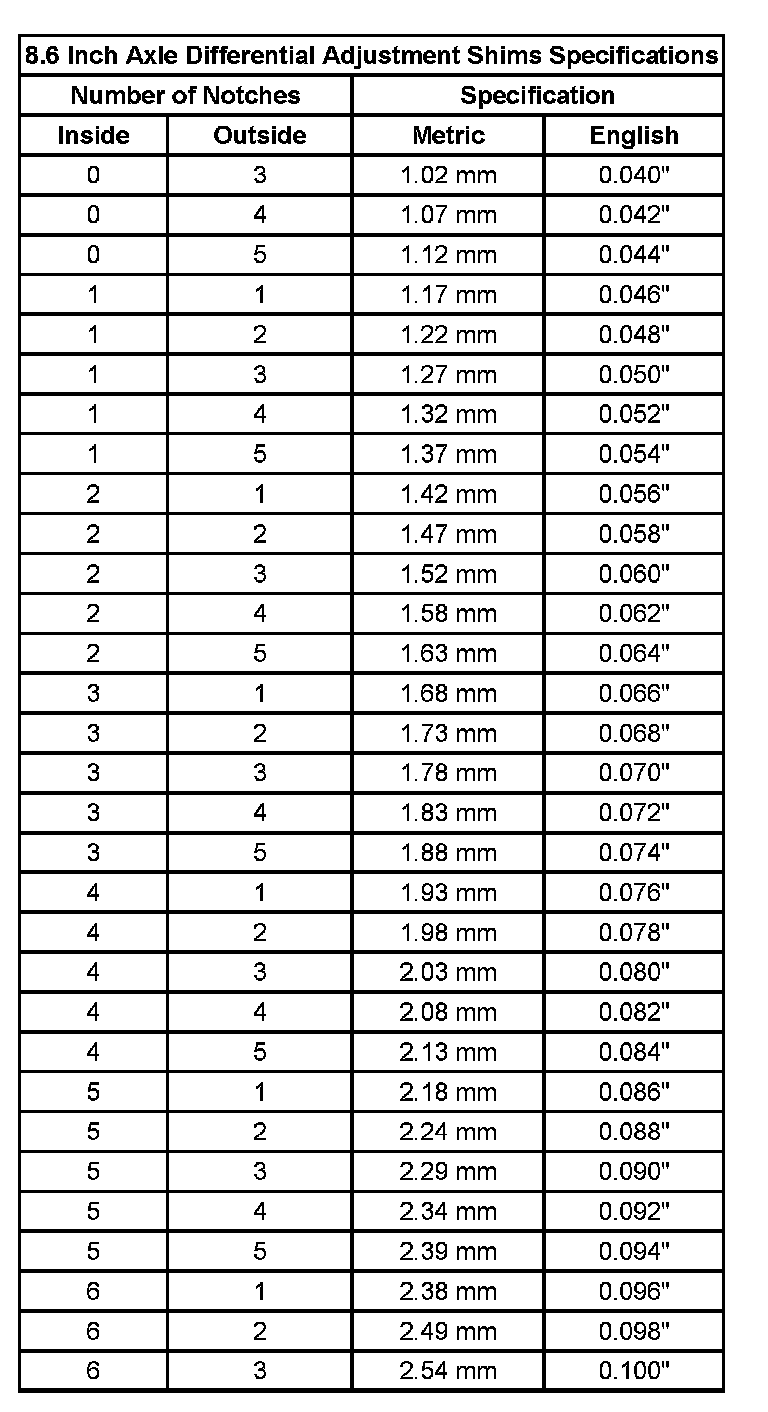

8.6 Inch Axle Differential Adjustment Shim Specifications

8.6 Inch Axle Differential Adjustment Shim Specifications:
