Home
>>
Chevy Truck
>>
2006
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Locations
>>

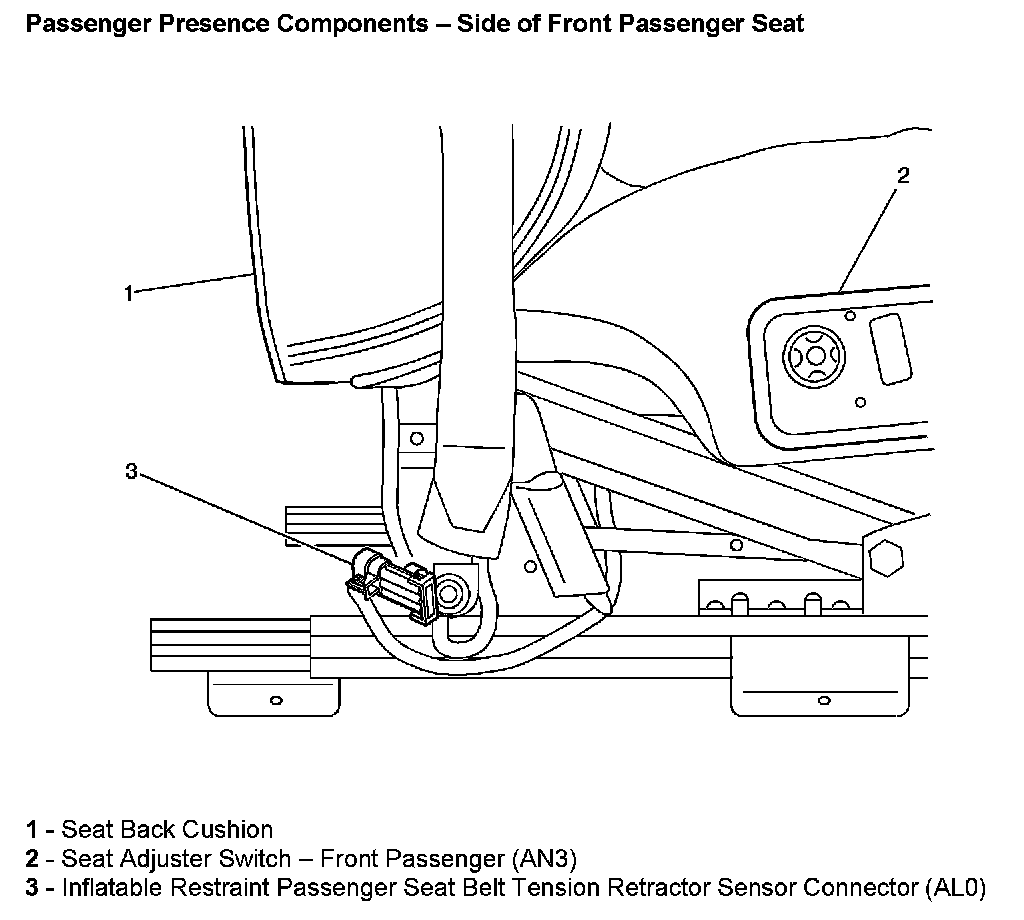

Passenger Presence Components - Side of Front Passenger Seat
Passenger Presence Components - Side of Front Passenger Seat
Passenger Presence Components - Side Front Passenger Seat:
