Power Steering Gear Outlet Pipe/Hose Replacement

Power Steering Gear Outlet Pipe/Hose Replacement (Recirculating Ball)

Removal Procedure






Notice: Refer to Power Steering Hose Disconnected Notice in Cautions and Notices.

1. Install a drain pan under the vehicle.

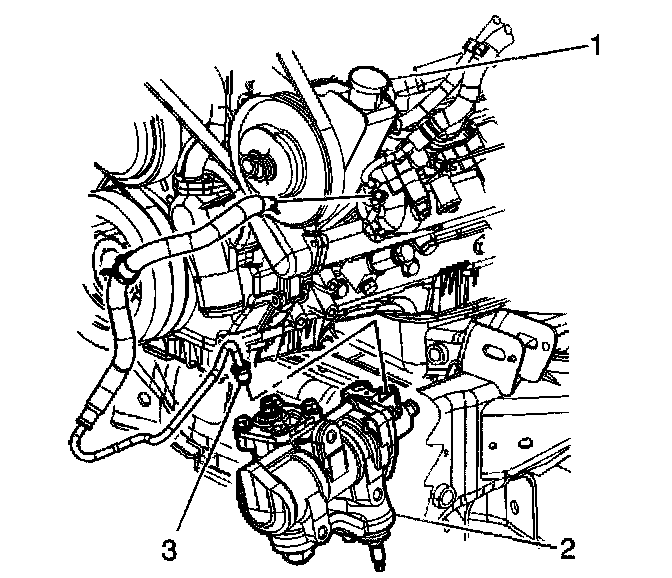

2. Remove the power steering gear outlet hose (3) from the steering gear (2).
3. Remove the clamp retaining the power steering gear outlet hose (3) to the power steering pump (1).
Remove the power steering gear outlet hose from the power steering pump
4. Remove the power steering gear outlet hose from the vehicle.

Installation Procedure






Notice: Refer to Installing Hoses Without Twists or Bends Notice in Cautions and Notices.

1. Route the hose in the same position the hose occupied prior to removal.

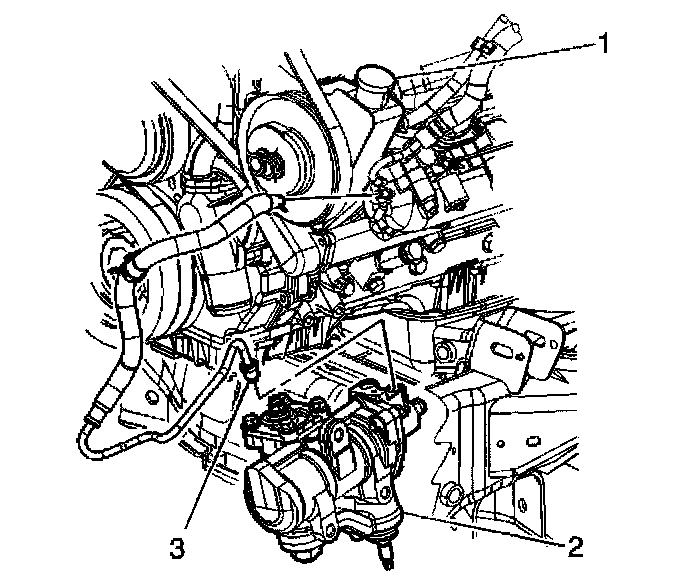

2. Install the power steering gear outlet hose (3) to the power steering pump (1).
Position the clamp at the end of the hose.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the power steering gear outlet hose to the power steering gear.
^ Tighten the outlet hose fitting to 28 Nm (20 ft. lbs.).
4. Remove the drain pan from under the vehicle.
5. Bleed the power steering system.
