Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Daytime Running Lamps (DRL) Inoperative (Domestic)

Daytime Running Lamps (DRL) Inoperative (Domestic)

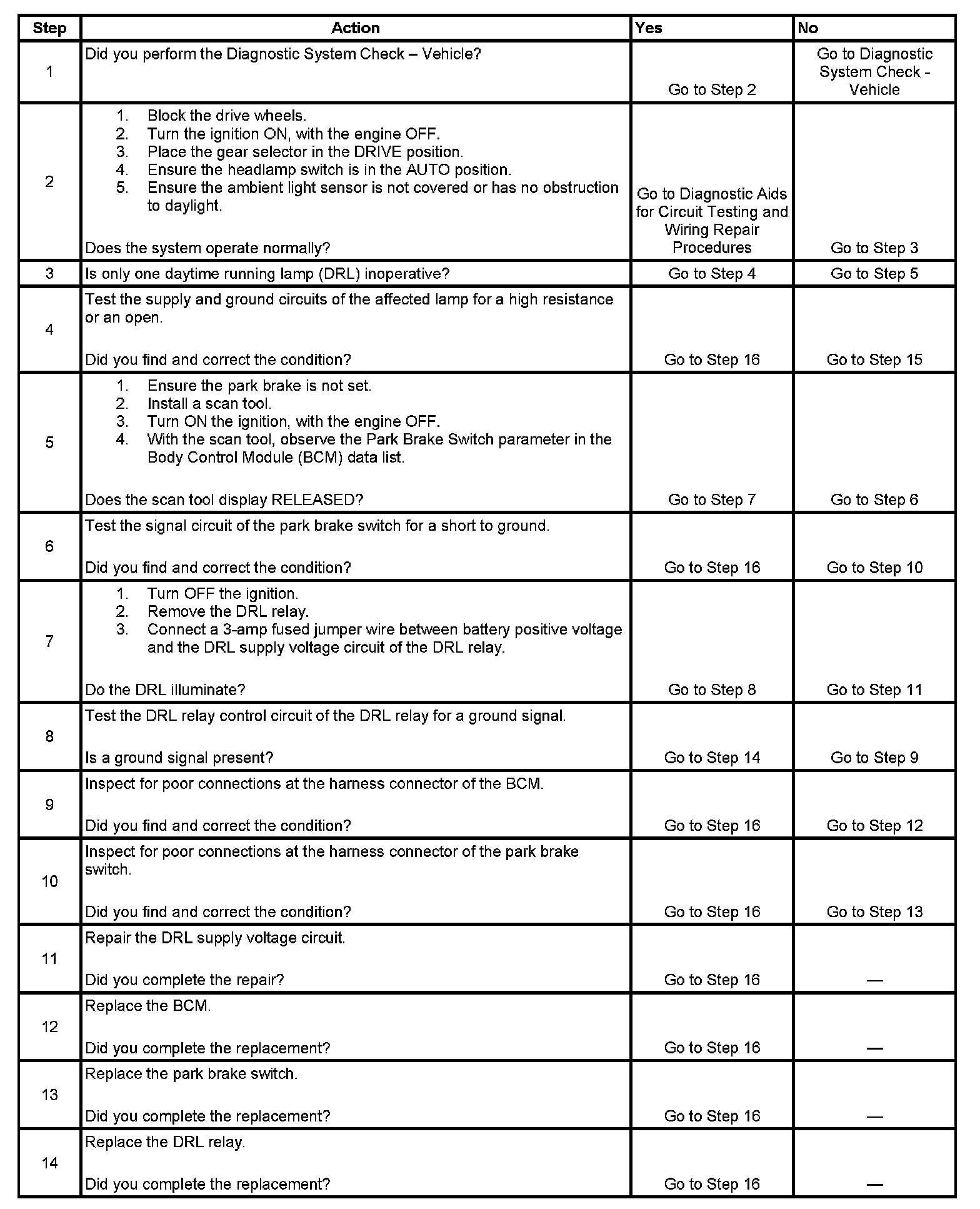

Step 1 - Step 14:

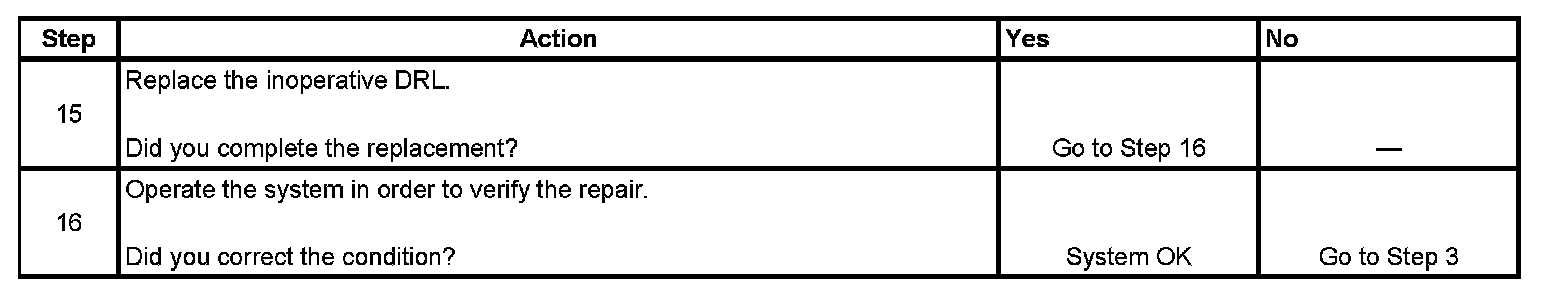

Step 15 - Step 16:
