Exhaust Heat Shield Replacement

Exhaust Heat Shield Replacement

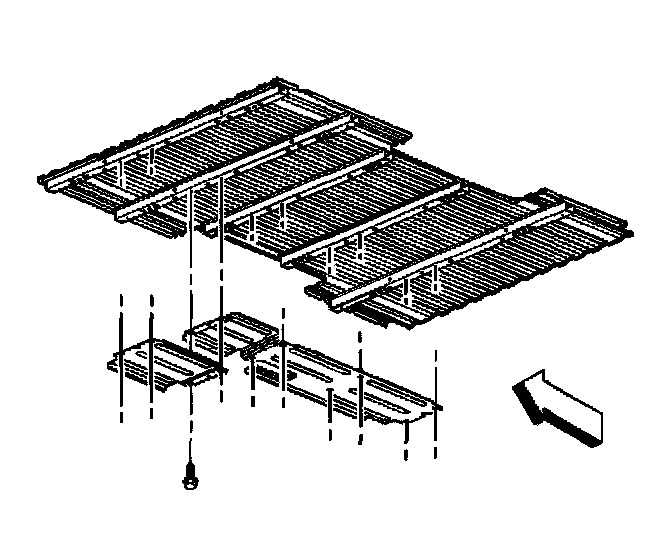

Removal Procedure
1. Remove the exhaust muffler.





2. Remove the exhaust heat shield bolts.
3. Remove the exhaust heat shield.

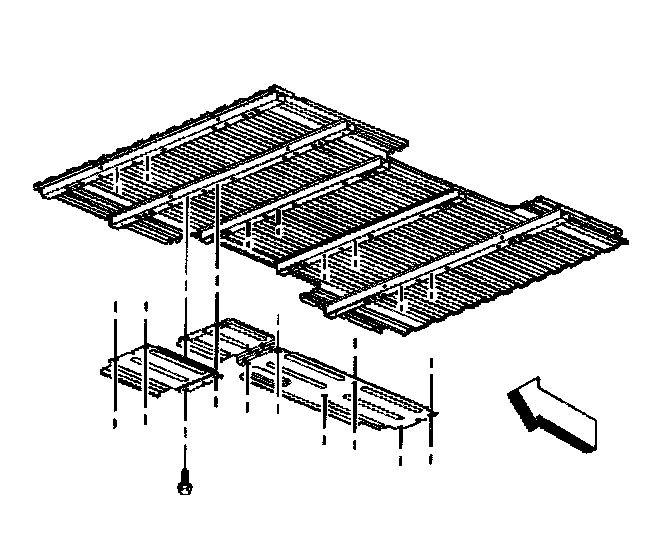

Installation Procedure
1. Install the exhaust heat shield.

Notice: Refer to Fastener Notice in Service Precautions.





2. Install the exhaust heat shield bolts.
^ Tighten the bolts to 9 Nm (80 inch lbs.).
3. Install the exhaust muffler.
