Drive Belt Tensioner Replacement - Accessory

Drive Belt Tensioner Replacement - Accessory
Removal Procedure





1. Remove the accessory drive belt.

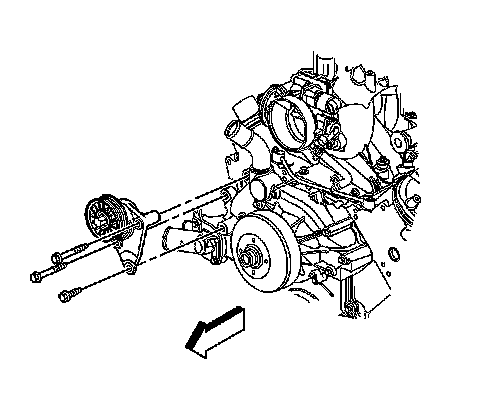

2. Remove the drive belt tensioner bolts.
3. Remove the drive belt tensioner.

Installation Procedure





1. Install the drive belt tensioner.
2. Install the drive belt tensioner bolts.

Notice: Refer to Fastener Notice in Service Precautions.

3. Tighten the drive belt tensioner bolts.
Tighten the bolts to 50 Nm (37 ft. lbs.).
4. Install the accessory drive belt.
