Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Splices >> Master Splice List

Master Splice List

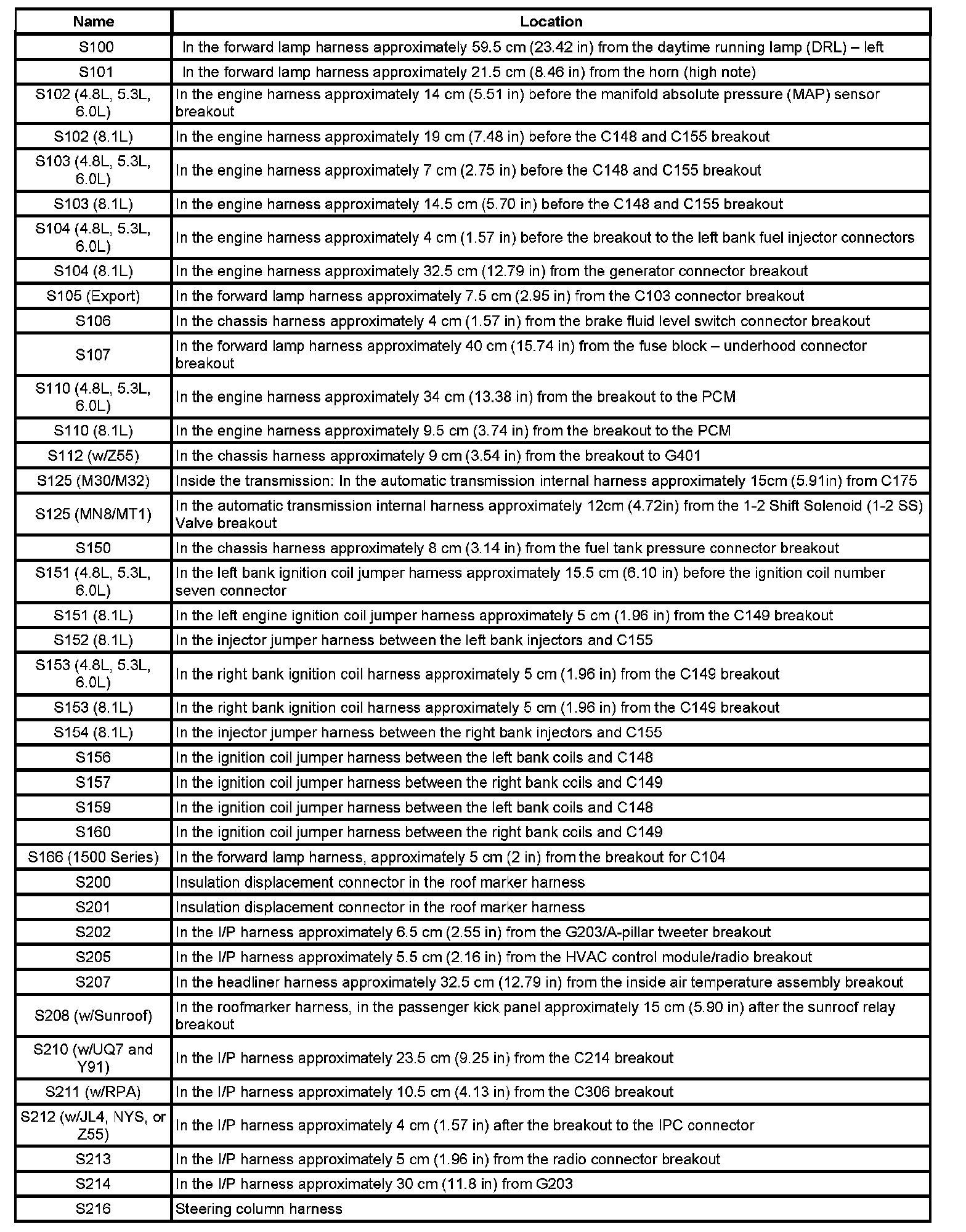

S100 - S216:

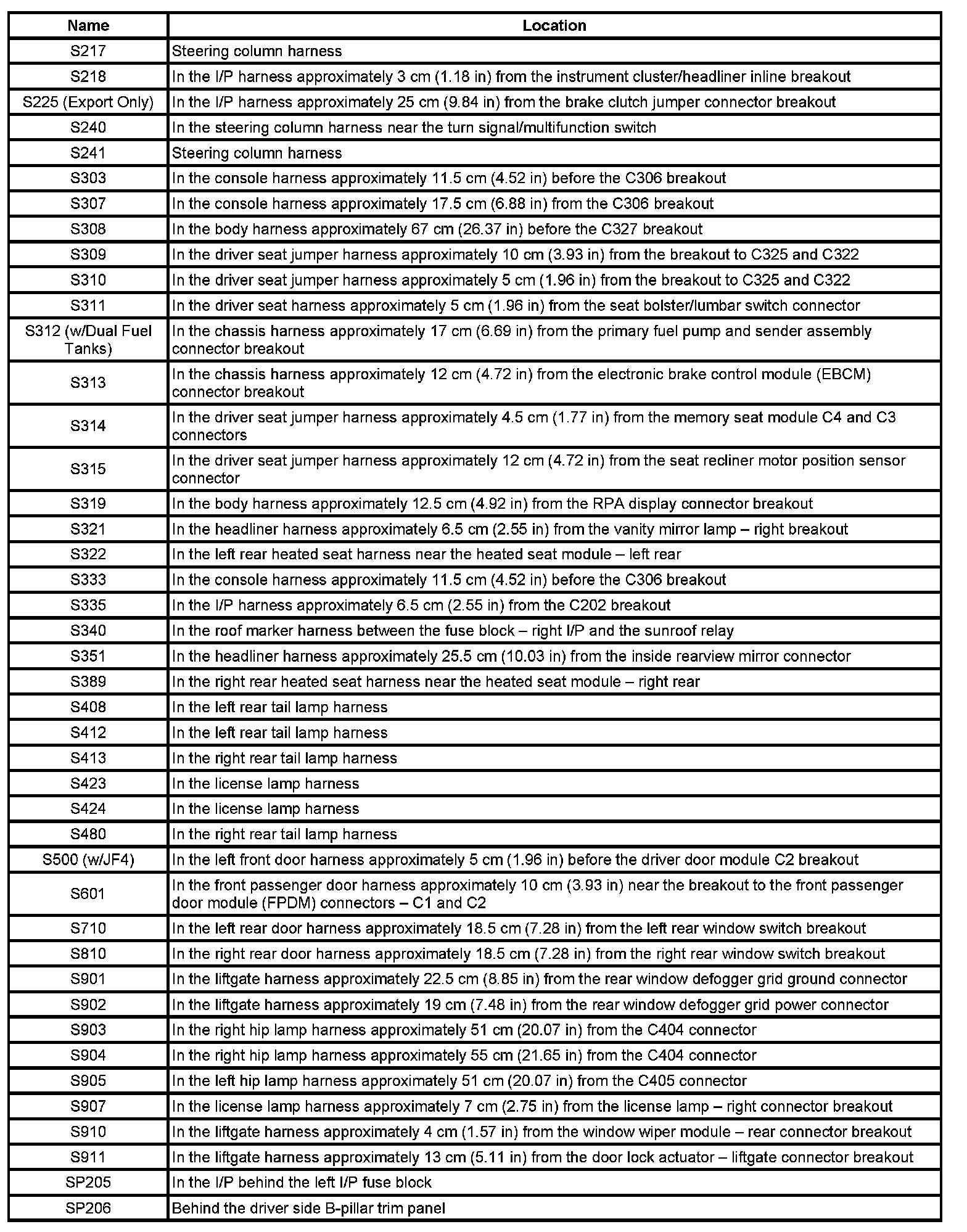

S217 - SP205:

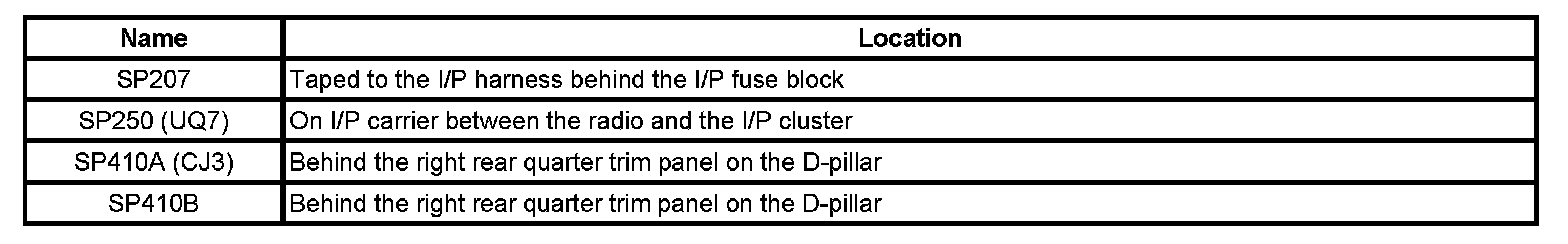

SP207 - SP410B:
