Home
>>
Chevy Truck
>>
2006
>>
Suburban 1/2 Ton 2WD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
Right D-Pillar
Right D-Pillar

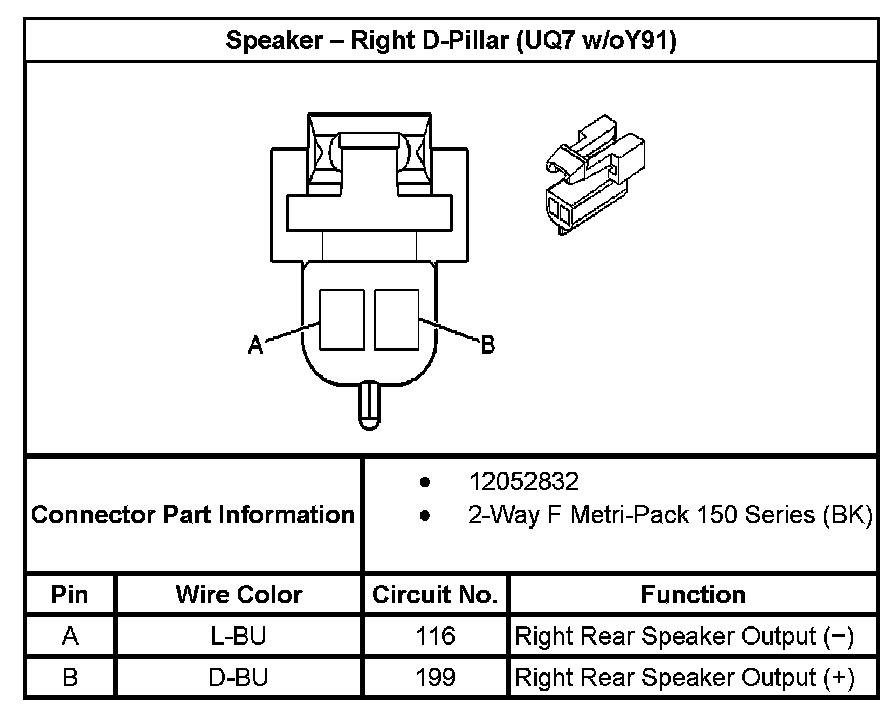

Speaker - Right D-Pillar (With RPO Code UQ7 Without RPO Code Y91):

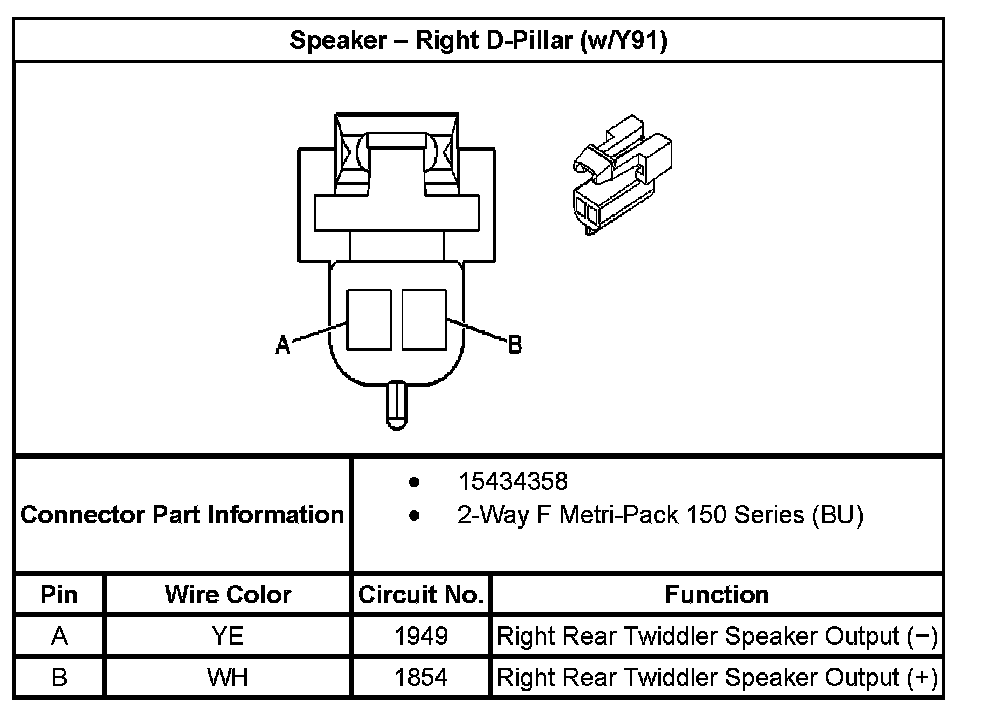

Speaker - Right D-Pillar (With RPO Code Y91):
