Air Temperature Actuator

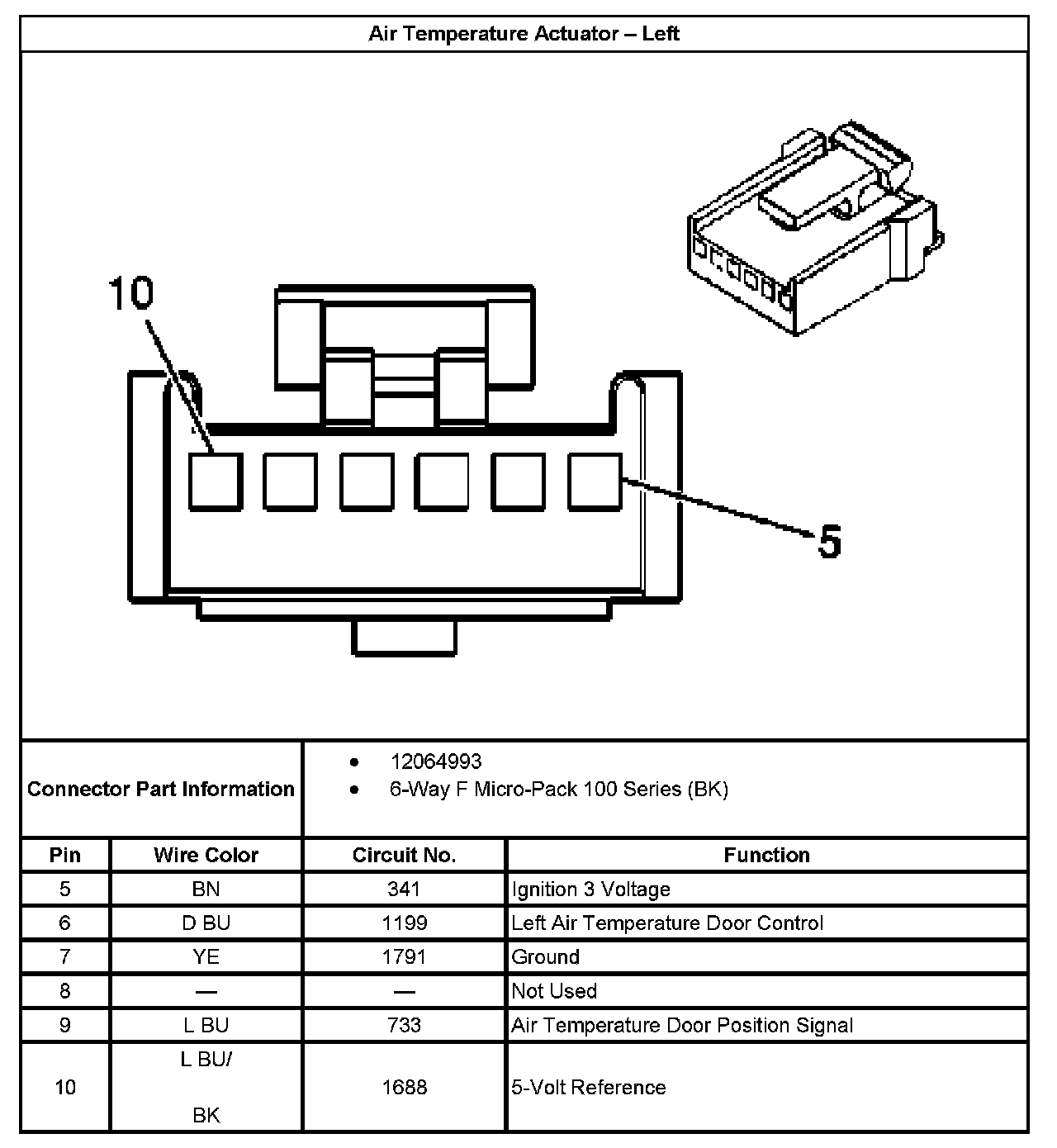

Air Temperature Actuator - Left:

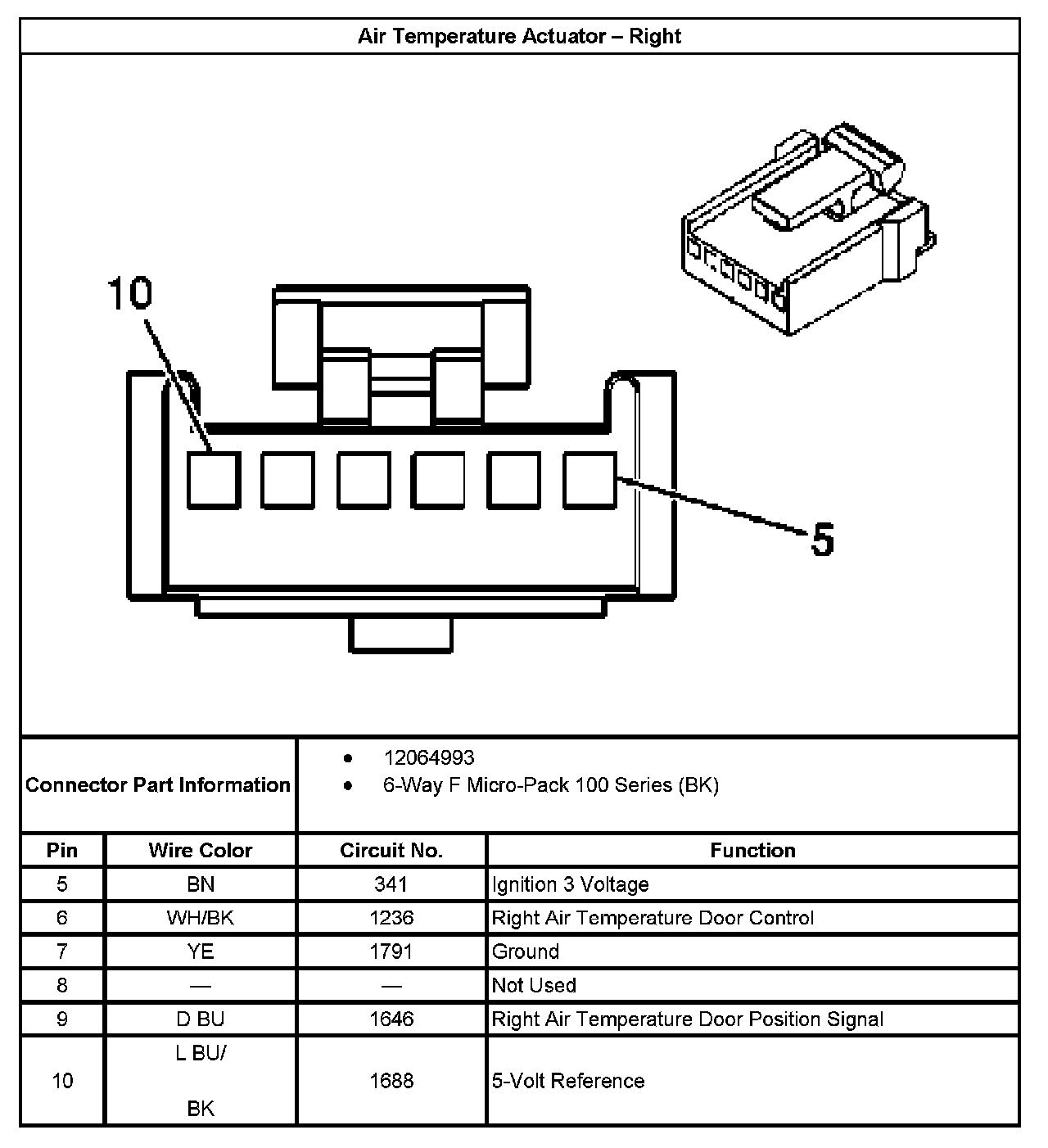

Air Temperature Actuator - Right:

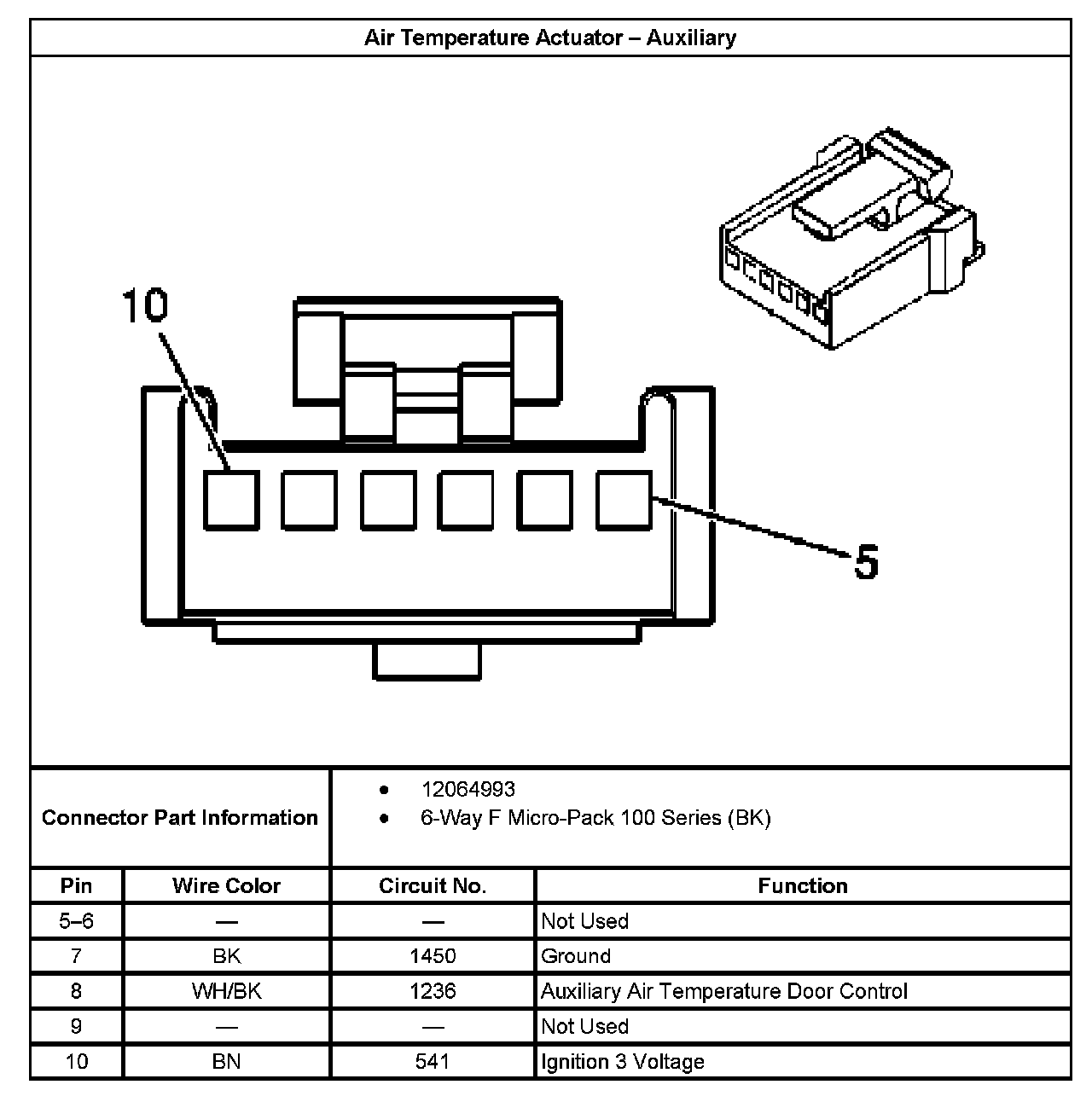

Air Temperature Actuator - Auxiliary:
