Park Brake Cable Replacement - Front
Park Brake Cable Replacement - FrontRemoval Procedure
1. Release the park brake.
2. Remove the park brake pedal. Refer to Park Brake Pedal Assembly Replacement.

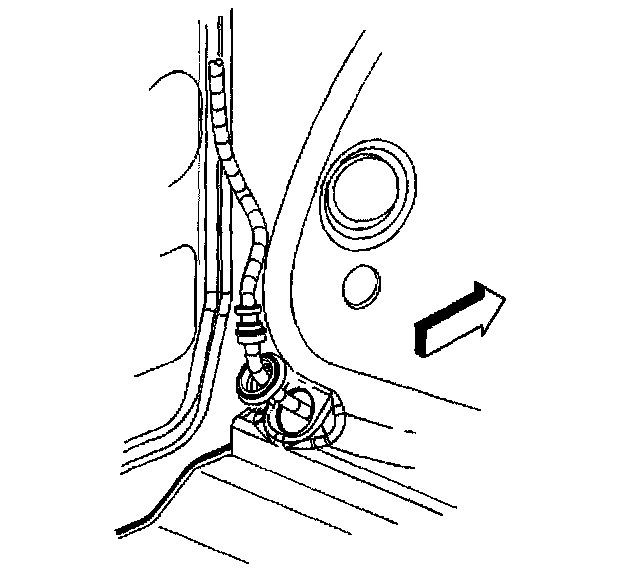

3. Roll the carpet back to access cable grommet.

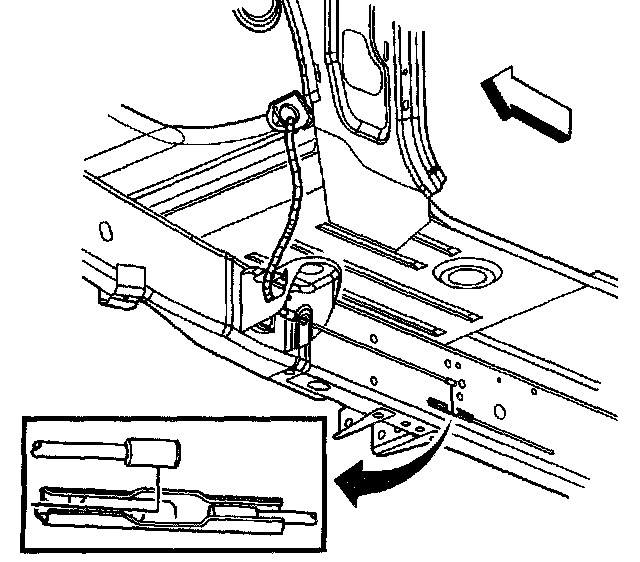

4. Raise and support the vehicle. Refer to Vehicle Lifting..
5. Disengage the grommet and the cable from the floor pan.
6. Disconnect the front cable from the intermediate cable.
7. Remove the cable from the body mount by depressing the retaining tabs.
8. Remove the cable.
Installation Procedure
1. Install the cable.

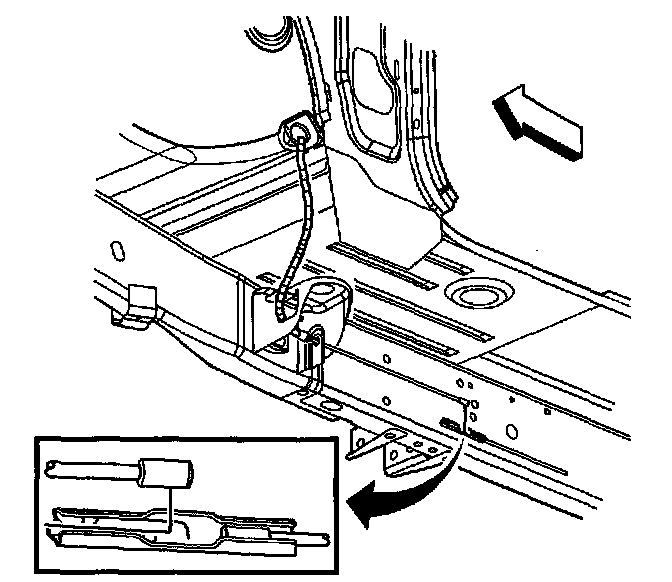

2. Snap the retainer tabs into the body mount.
3. Connect the front cable to the intermediate cable.

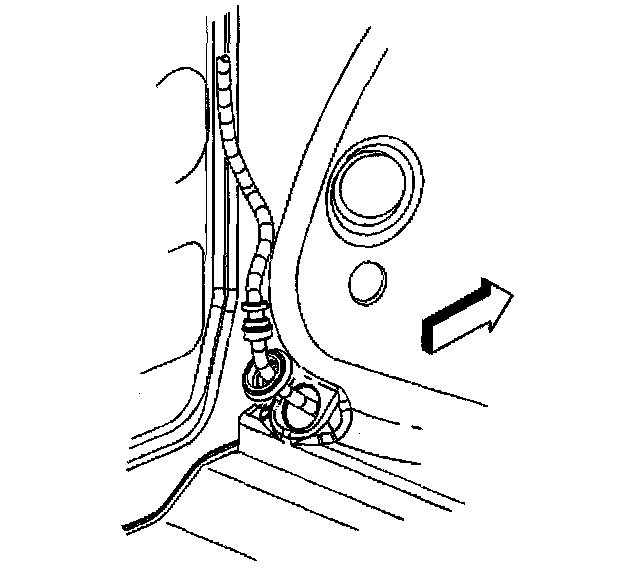

4. Route the cable in through the floor pan and engage the grommet.
5. Remove the safety stands.
6. Lower the vehicle.
7. Roll the carpet into place.
8. Install the park brake pedal. Refer to Park Brake Pedal Assembly Replacement.
9. Adjust the park brake system. Refer to Park Brake Adjustment.
