Hydraulic System: Locations
Component Locator
Hydraulic Brakes Component Views

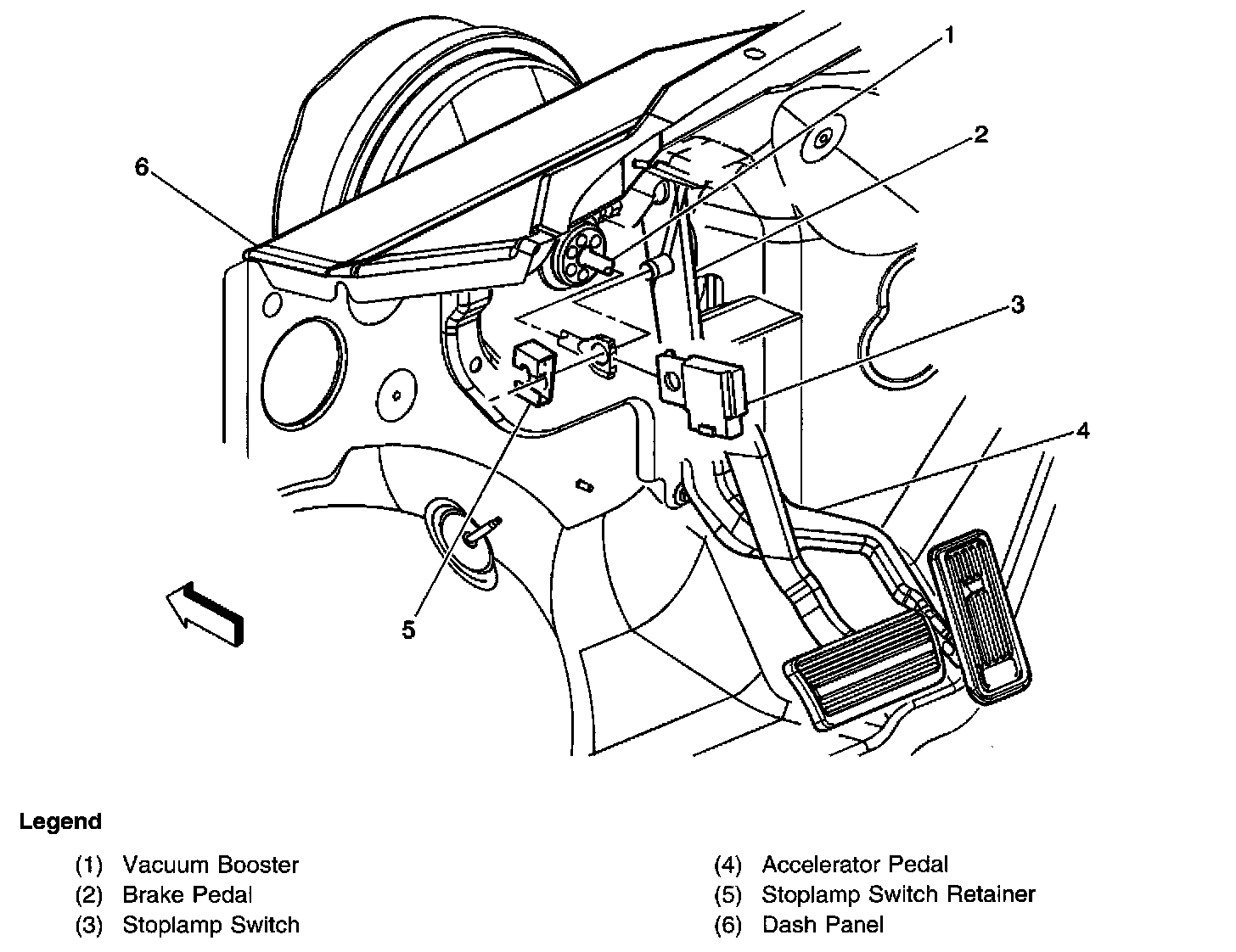

Brake Pedal Components

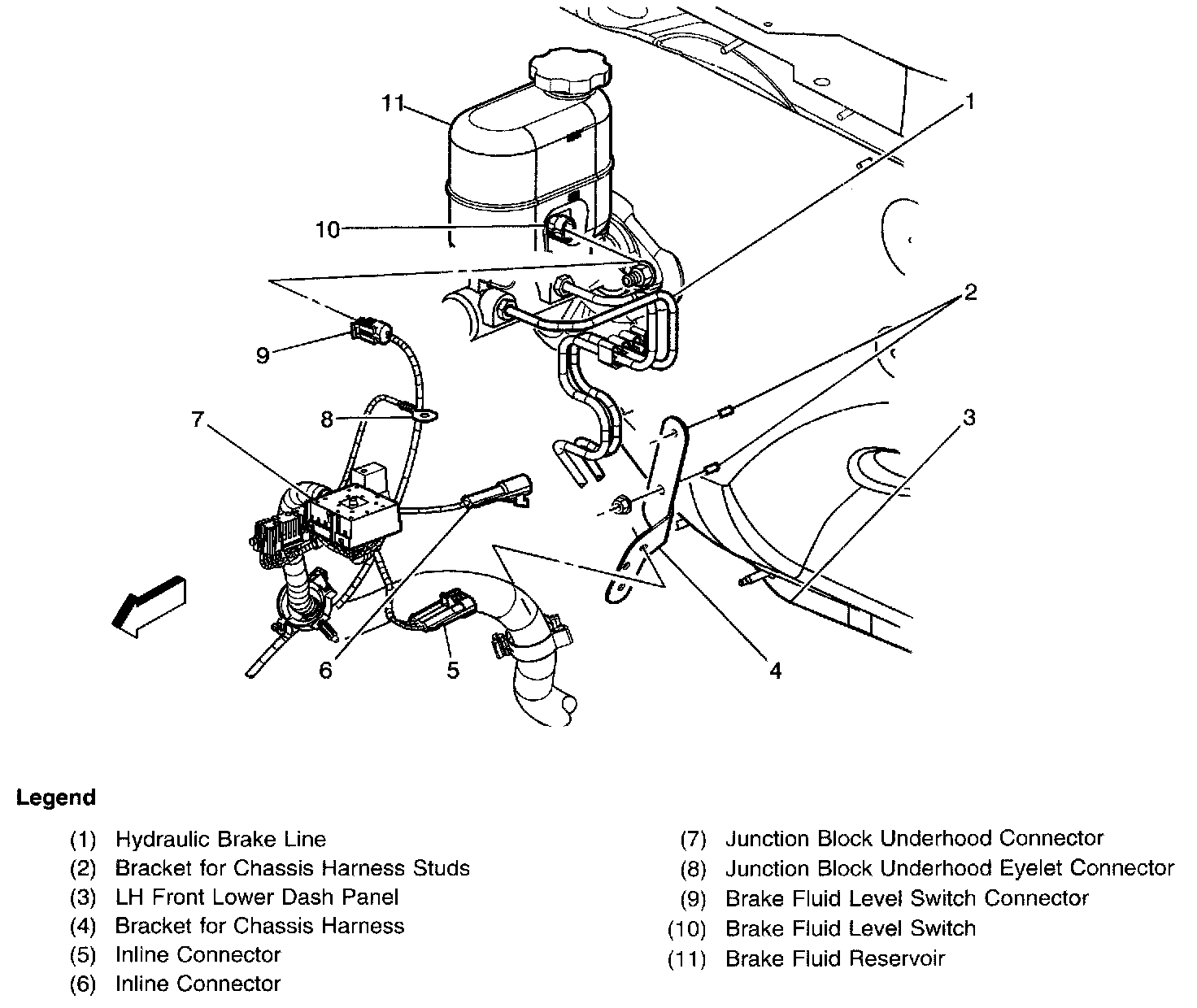

LR of the Engine Compartment-Brake Components

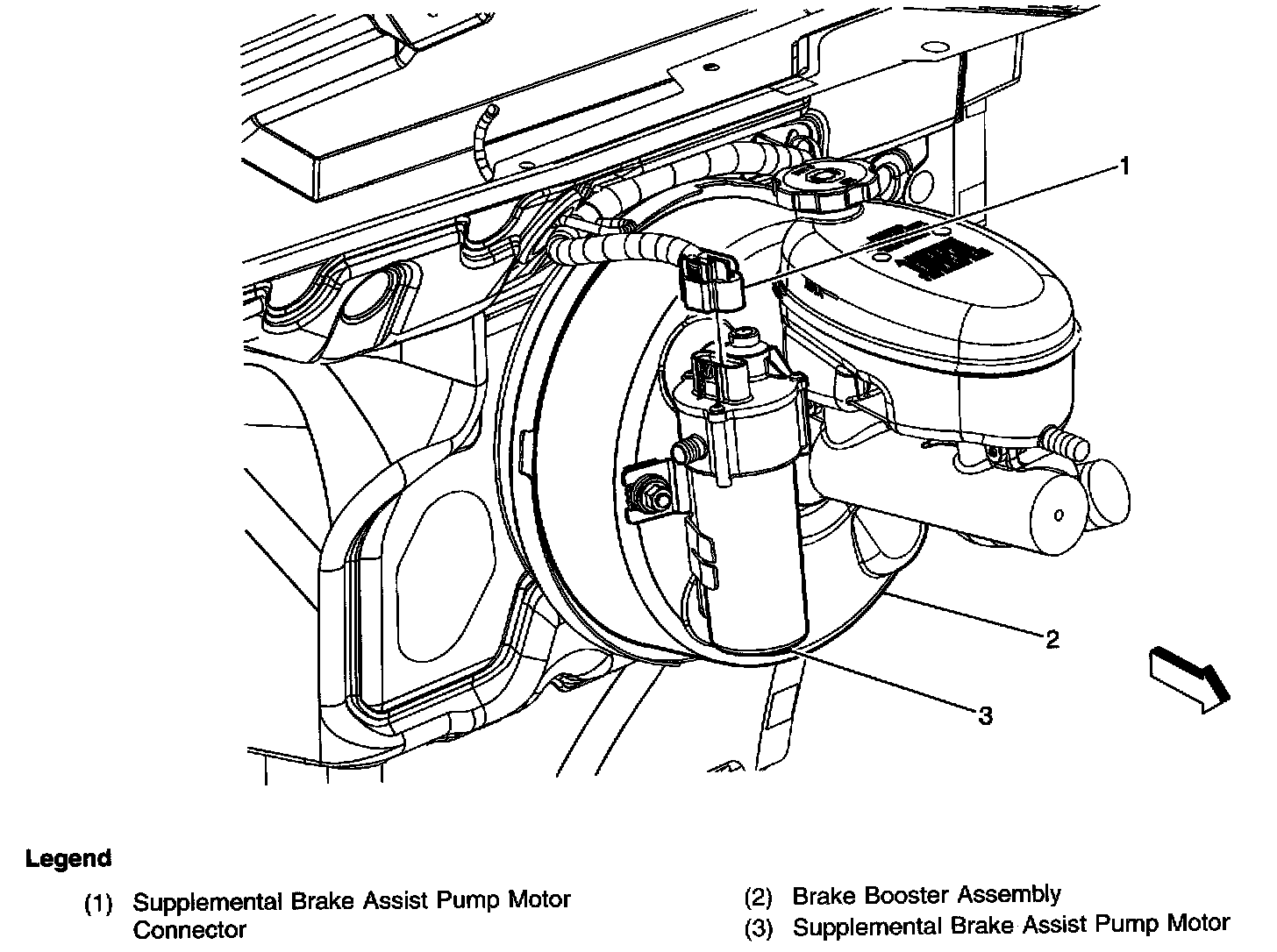

Supplemental Brake Assist Pump Motor
