Window Run Channel Replacement - Rear Door

Window Run Channel Replacement - Rear Door

Removal Procedure

1. Remove the window.
2. Remove the window glass weatherstrip.

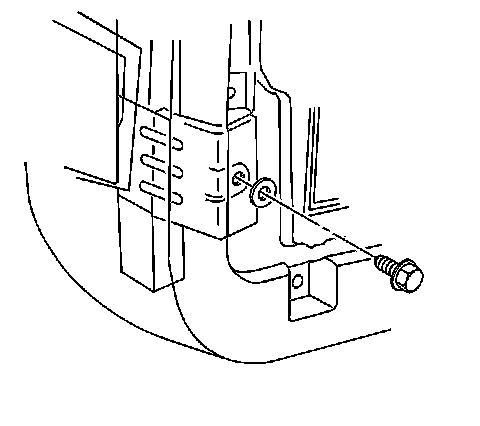

3. Remove the front window run channel top bolt.
4. Remove the front window run channel from the door.

Installation Procedure




1. Install the front window run channel to the door.
2. Install the front window run channel top bolt.
Do not tighten the bolt.
3. Install the window glass weatherstrip.
4. Install the window.
