Seat Rear Vertical Motor

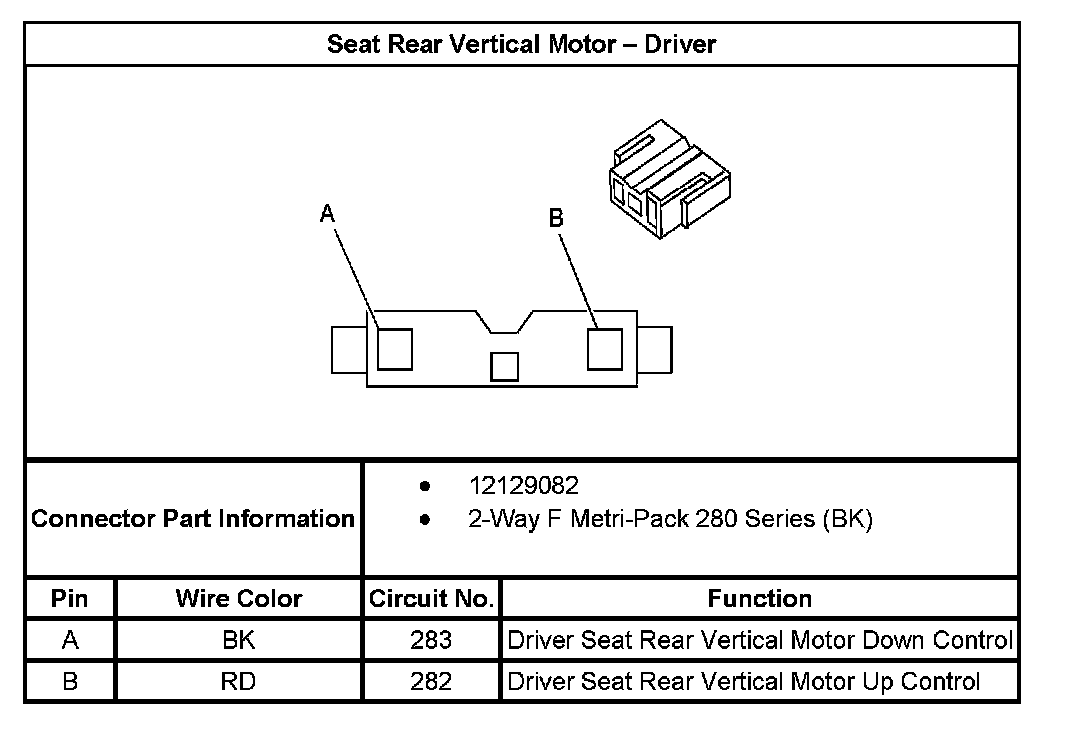

Seat Rear Vertical Motor - Driver:

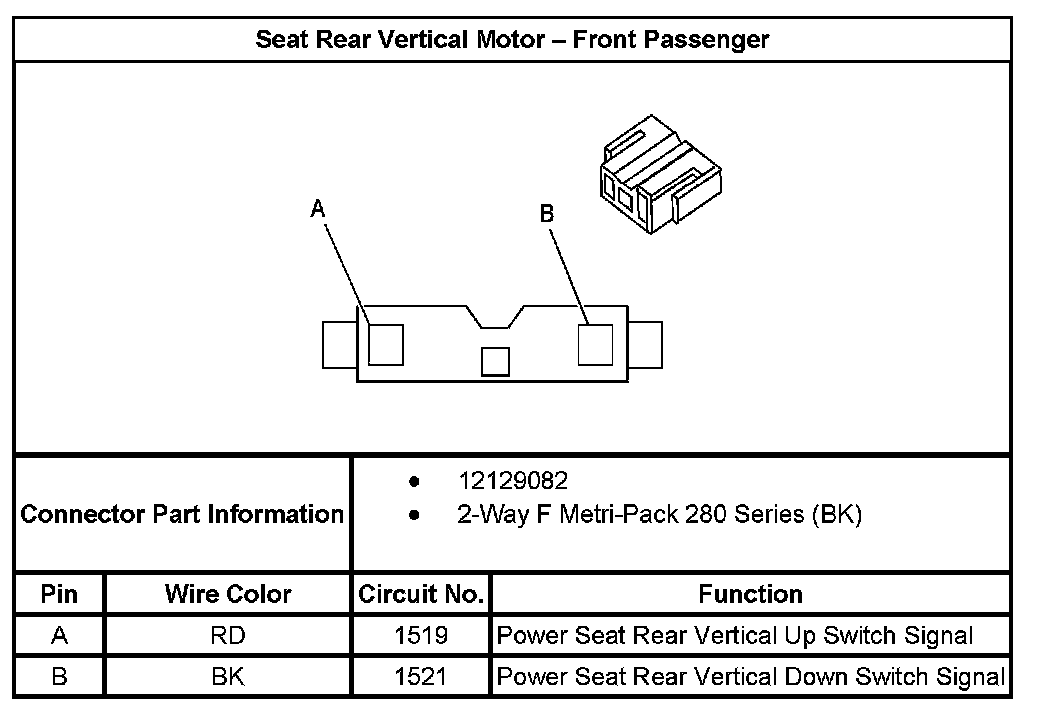

Seat Rear Vertical Motor - Front Passenger:
