Sun Visor: Service and Repair

Sunshade Replacement

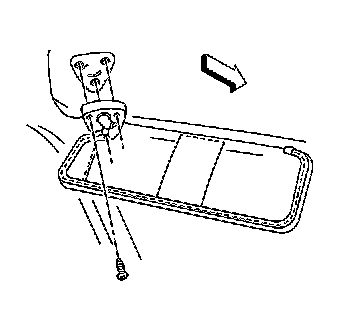

Removal Procedure




1. Remove the screws.
2. Disconnect the electrical connector, if equipped.
3. Remove the sunshade.

Installation Procedure




1. Connect the electrical connector, if equipped.
2. Install the sunshade.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the sunshade screws.

Tighten the screw to 2 N.m (18 lb in).
