Assist Handle Replacement - Front

Assist Handle Replacement - Front

Removal Procedure

1. Lower the right side of the headliner. Refer to Headliner Replacement.

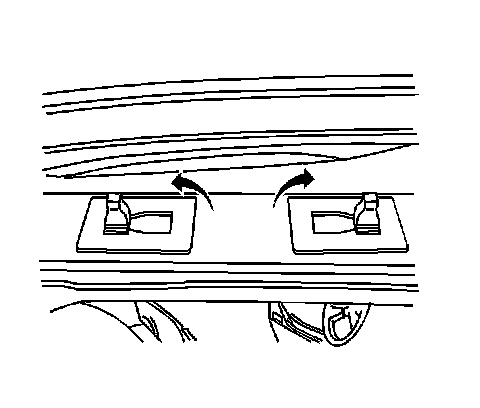

2. Turn the retainers in the directions as shown in the graphic and then remove the retainers.
3. Remove the assist handle from the headliner.

Installation Procedure




1. Install the assist handle through the opening in the headliner.

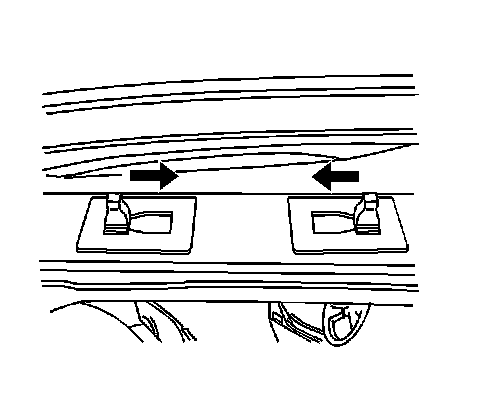

2. While holding the assist handle to the head liner install the retainer in the direction as shown in the graphic.
3. Install the headliner.
