Cupholder Replacement (Non-Luxury)

Cupholder Replacement (Non-Luxury)

Removal Procedure

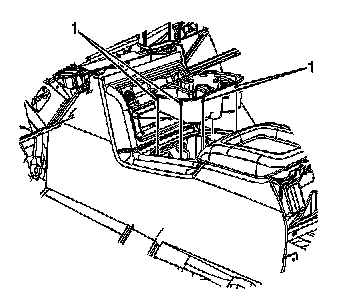

1. Grab the middle of the cup holder firmly and pull outwards to release the clips (1).
2. Remove the cup holder from the console.

Installation Procedure




1. Install the cup holder by pushing inwards till the clips (1) click in place.
2. Ensure around the corners of the cup holder is seated properly.
