Rear Fender Liner: Service and Repair

Wheelhouse Inner Panel Extension Replacement - Rear

Removal Procedure

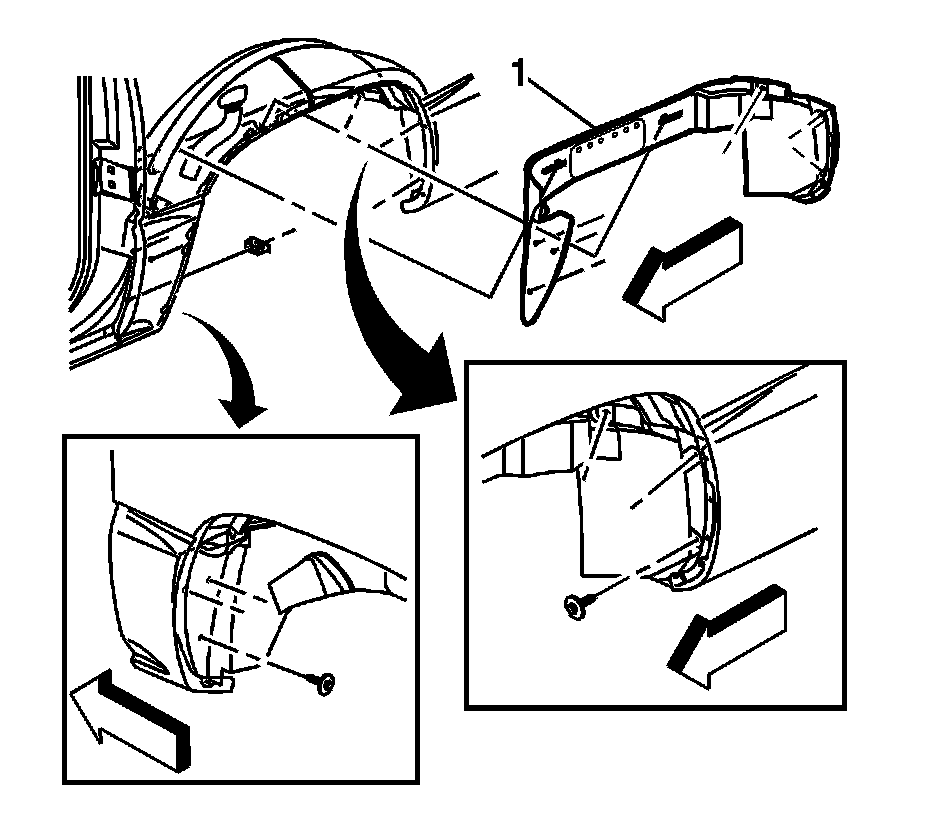

1. Remove the retainer strap from the backside of the inner panel extension (1).
2. Remove the retainers from the inner panel extension front.
3. Remove the retainers from the inner panel extension rear.
4. Remove the rear wheelhouse inner panel extension from the vehicle.

Installation Procedure




1. Install the rear wheelhouse inner panel extension to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the retainers to the inner panel extension rear.

Tighten the retainers to 1.7 N.m (15 lb in).

3. Install the retainers to the inner panel extension front.

Tighten the retainers to 1.7 N.m (15 lb in).

4. Install the retainer strap to the backside of the inner panel extension (1).
