Emblem Replacement - Grille (Chevrolet)

Emblem Replacement - Grille (Chevrolet)

Removal Procedure




1. Remove the upper grille baffle.

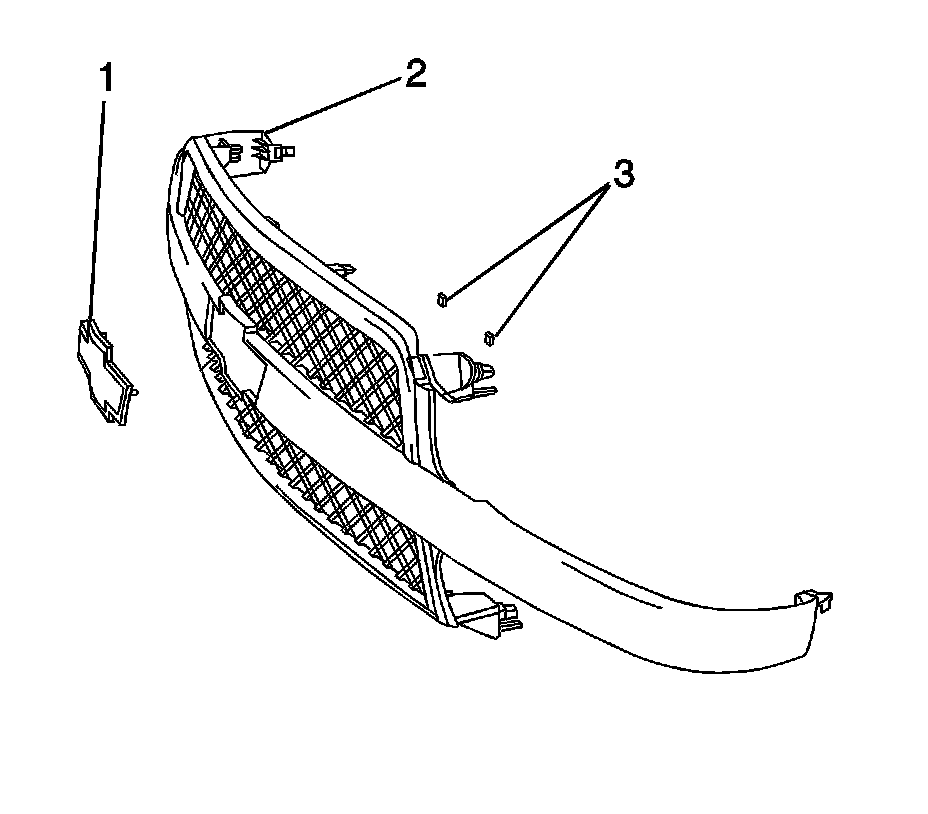

2. Remove the retaining nuts (3) from the rear of the grille emblem (1).
3. Separate and remove the emblem (1) from the grille (2).

Installation Procedure




1. Install the emblem (1) onto the grille (2).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the retaining nuts (3) and tighten.

Tighten the retaining nuts to 3 N.m (27 lb in).




3. Reinstall the upper grille baffle.
