Weatherstrip Replacement - Rear Compartment Opening

Weatherstrip Replacement - Rear Compartment Opening

Removal Procedure

1. Open the door(s).

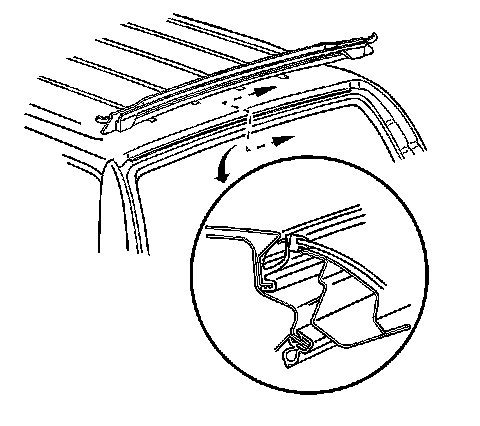

2. Remove 7 bolts retaining weatherstrip assembly to body.

Installation Procedure




1. Install the weatherstrip assembly.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install 7 bolts retaining weatherstrip assembly to body.

Tighten the bolts to 2 N.m (18 lb in).

3. Close the door(s).
