Garnish Molding Replacement - Liftgate

Garnish Molding Replacement - Liftgate

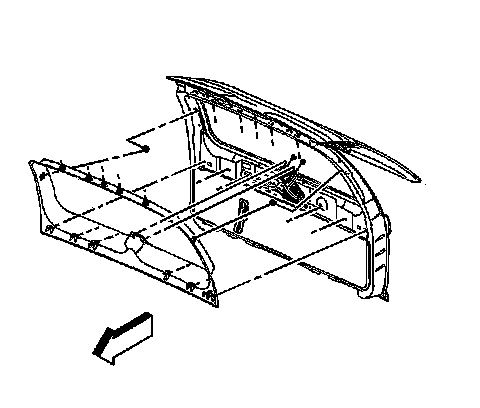

Removal Procedure




1. Open the liftgate window.
2. Remove the push pin retainers from the garnish molding.
3. Pry gently with a thin-bladed tool in order to release the retaining clips.
4. Remove the garnish molding.

Installation Procedure




1. Install the garnish molding to the door.
2. Press on the garnish molding in order to engage the retaining clips.
3. Install the push pin retainers into the garnish molding.
4. Close the liftgate window.
