Door Stop: Service and Repair

Bumper Replacement - Rear Door

Removal Procedure

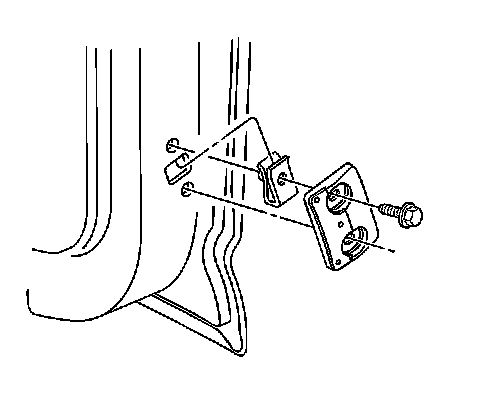

1. Remove the bumper bolts.
2. Remove the bumper assembly.

Installation Procedure




1. Install the bumper assembly.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the bumper bolts.

Tighten the bolts to 9 N.m (80 lb in).
