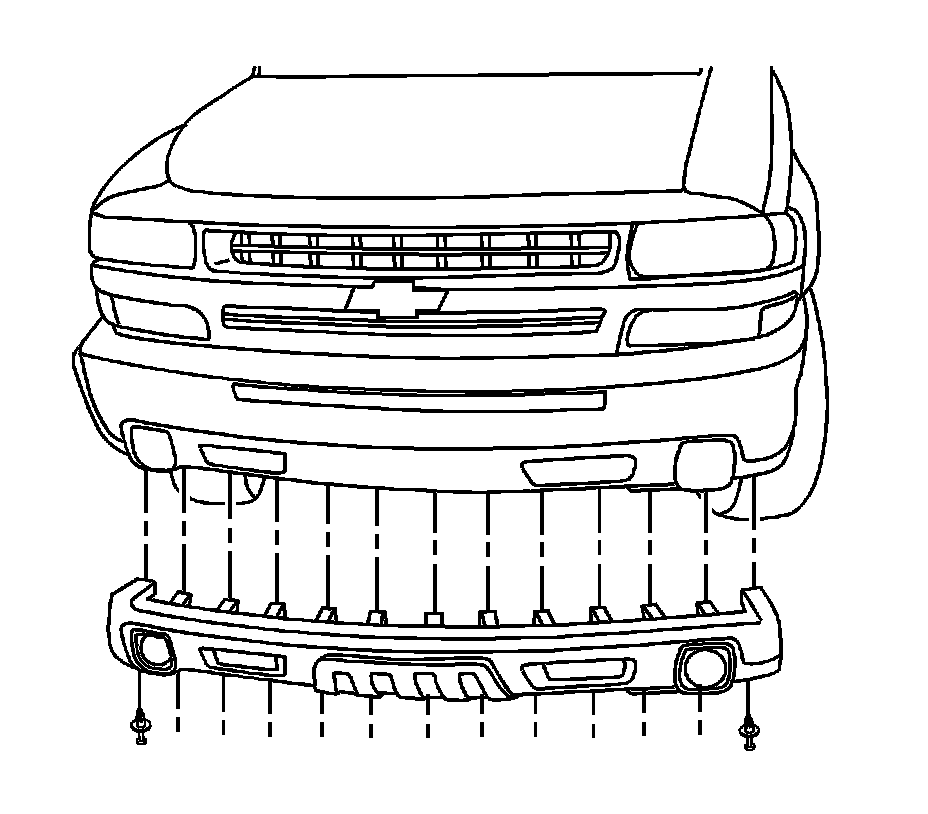

Fascia Replacement - Front Bumper (Z-71)

Fascia Replacement - Front Bumper (Z-71)

Removal Procedure




1. Remove the front fog lamps.
2. Remove the push-pins from the lower fascia.
3. Remove the front lower fascia from the vehicle.

Installation Procedure




1. Install the front lower fascia to the vehicle.
2. Install the push-pins to the fascia.
3. Install the front fog lamps.
