Rear Door

SPEAKER REPLACEMENT - REAR DOOR

REMOVAL PROCEDURE




1. Remove the door trim panel.

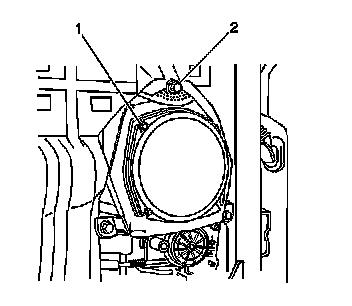

2. Remove the screws (1) retaining the speaker to the mounting bracket.
3. Disconnect the electrical connector from the speaker.
4. Remove the speaker from the mounting bracket.
5. Remove the bolts (2) retaining the speaker mounting bracket to the door, if required.
6. Remove the speaker mounting bracket.

INSTALLATION PROCEDURE




1. Install the speaker mounting bracket.
2. Install the bolts (2) retaining the speaker mounting bracket to the door, if removed.

Tighten the bolts to 6 N.m (53 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the speaker to the mounting bracket.
4. Connect the electrical connector to the speaker.
5. Install the screws (1) that retain the speaker to the mounting bracket.

Tighten the screws to 2 N.m (53 lb in).

6. Install the door trim panel.
7. Verify the component operation.
