Coaxial Cable Replacement - Navigation and Cellular Telephone Antenna

COAXIAL CABLE REPLACEMENT - NAVIGATION AND CELLULAR TELEPHONE ANTENNA

REMOVAL PROCEDURE
1. Remove the I/P trim panel.
2. Lower the headliner. Refer to Headliner Replacement in Interior Trim.

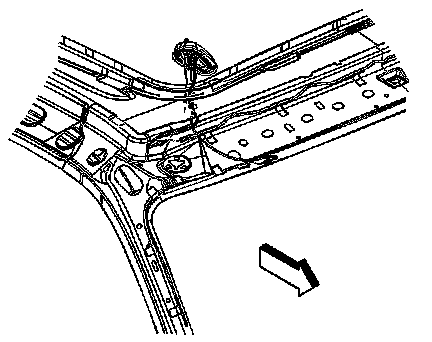

3. Disconnect the cables from the antenna base.
4. Remove the cable retainers from the roof and pillar.

IMPORTANT: Observe the routing of the cables.




5. Disconnect the cable (3) from the module.

INSTALLATION PROCEDURE
1. Install the cable retainers to the roof and pillar.




2. Connect the cables (3) to the module.




3. Connect the cables to the antenna base.

IMPORTANT: Ensure the cables are routed properly and there is no sharp bends in the cables.

4. Install the headliner.
5. Install the I/P trim panel.
