DVD Player: Service and Repair

DVD PLAYER REPLACEMENT (2ND ROW)

TOOLS REQUIRED
J 38778 Door Trim Pad Clip Remover

REMOVAL PROCEDURE

IMPORTANT: Components of the DVD player cannot be serviced separately. Replace as an assembly.




1. Move the screen to the open position.
2. Remove the rear screw cover using a flat bladed tool.

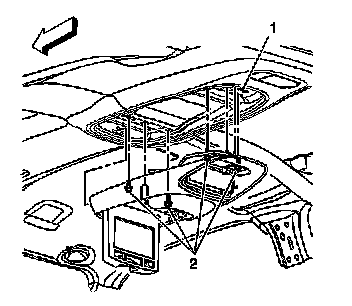

3. Remove the four retaining bolts (2).
4. Insert the J 38778 between the headliner and the DVD player assembly.
5. With 1 hand holding the DVD player assembly, pry the retainer from the bracket.

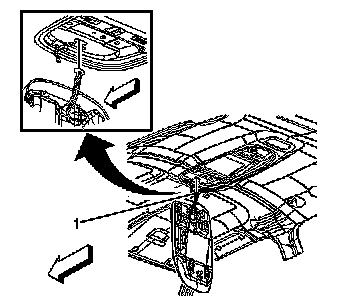

6. Allow the DVD player assembly to come to rest on the hook (1).

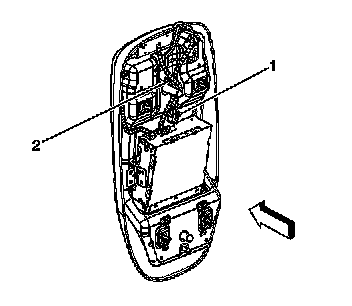

7. Disconnect the wire connector (1).

IMPORTANT: Observe the routing of the wiring harness (2).

8. Slightly lift up the DVD player assembly so that the hook can be removed from its resting position.
9. Remove the DVD player from the vehicle.

INSTALLATION PROCEDURE




1. Install the DVD player hook (1) into the hook opening.




2. Connect the wire connector (1) to the DVD player assembly.

IMPORTANT: Ensure the harness is routed to the right side of the large plastic pin as shown (2).

3. Install the harness retainer to the panel.
4. Swing the rear part of the assembly to the headliner so that the retainer is seated.
5. Install the two rear retaining bolts.

Tighten the 2 rear retaining bolts to 9 N.m (80 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.





6. Move the screen to the open position.
7. Install the 2 front retaining bolts (2).

Tighten the 2 front retaining bolts to 9 N.m (80 lb in).

8. Install the rear screw cover.
