Radio Antenna Module Cable Replacement (From Radio to Module)

RADIO ANTENNA MODULE CABLE REPLACEMENT (FROM RADIO TO MODULE)

REMOVAL PROCEDURE
1. Remove the I/P trim panel.
2. Lower the headliner. Refer to Headliner Replacement in Interior Trim.
3. Loosen the bolt retaining the radio antenna module in order to disconnect the electrical connector.

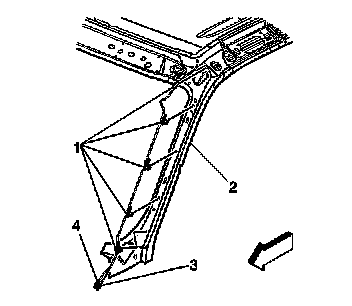

4. Disconnect the cable (2) from the radio antenna module.
5. Remove the cable clips (1) from the roof.




6. Remove the cable clips (1) from the A-pillar.
7. Disconnect the cable (3) from the radio.
8. Disconnect the electrical wire connector (4).
9. Remove the radio cable from the vehicle.

INSTALLATION PROCEDURE




1. Install the cable clips (1) to the A-pillar.
2. Connect the electrical wire connector (4).
3. Connect the cable (3) to the radio.




4. Install the cable clips (1) to the roof.
5. Connect the cable (2) to the radio antenna module.
6. Connect the wire connector to the radio antenna module.
7. Install the bolt retaining the radio antenna module to the roof.

Tighten the retaining bolt to 9 N.m (80 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

8. Install the headliner.
9. Install the I/P trim panel.
