Coaxial Cable Replacement - Digital Radio (Primary)

COAXIAL CABLE REPLACEMENT - DIGITAL RADIO (PRIMARY)

REMOVAL PROCEDURE




1. Remove the left windshield pillar garnish molding.

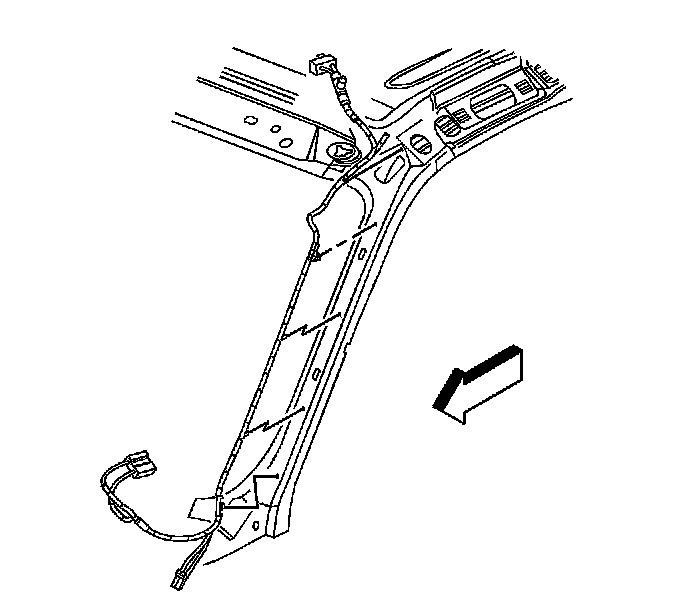

2. Disconnect the XM radio antenna cable (1).




3. Lower the front of the headliner. Refer to Headliner Replacement in Interior Trim.

NOTE: Use care when removing or installing the headliner. Excessive bending will damage the headliner.

4. Disconnect the XM antenna cable from the antenna connection above the headliner.
5. Remove the upper I/P trim panel.
6. Remove the cable clips from the windshield pillar and remove the antenna cable from the vehicle.

INSTALLATION PROCEDURE




1. Install the XM antenna cable and clips to the windshield pillar.
2. Connect the cable to the antenna connection above the headliner.
3. Install the headliner.




4. Connect the XM radio antenna cable (1) at the IP.
5. Install the upper I/P trim panel.
6. Install the windshield pillar garnish molding.
