Coaxial Cable Replacement - Digital Radio (Extension)

COAXIAL CABLE REPLACEMENT - DIGITAL RADIO (EXTENSION)

REMOVAL PROCEDURE




1. Remove the upper trim panel from the instrument panel (I/P).

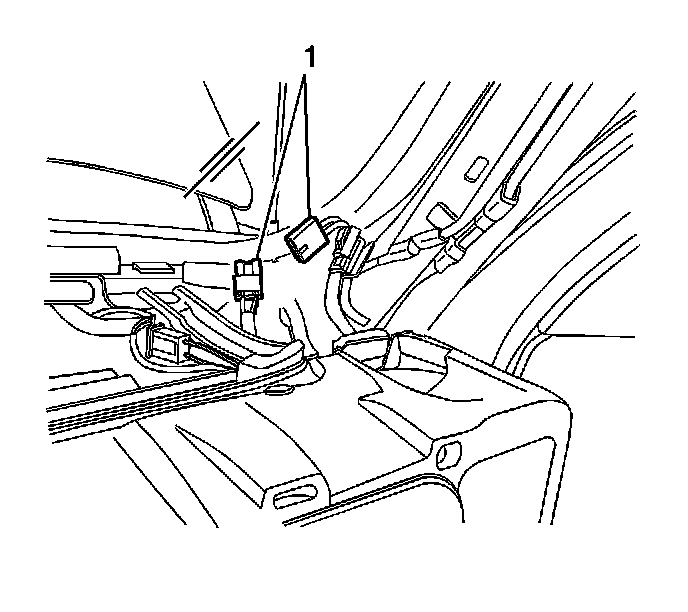

2. Disconnect the digital radio antenna cable (1).




3. Fully open the I/P storage compartment in order to access the digital receiver (3).
4. Disconnect the antenna cable (2) from the digital receiver (3).
5. Cut the ends off the original cable and leave the remainder of cable in the wiring harness assembly.

INSTALLATION PROCEDURE

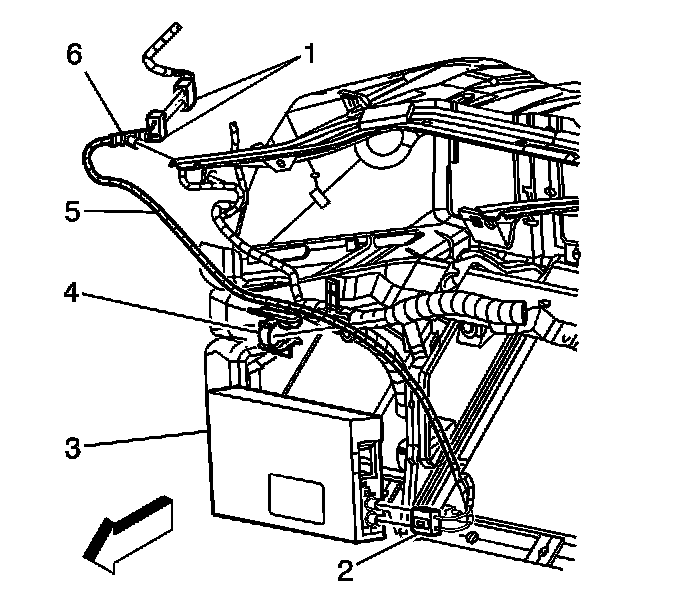

1. Install, route and retain the new cable (5) to the I/P.
2. Engage the antenna cable clips (4, 6) to the I/P.
3. Connect the antenna cable (2) to the digital receiver (3).




4. Connect the digital radio antenna extension cable to the digital radio antenna cable (1).
5. Install the I/P upper trim panel.
6. Close the I/P storage compartment.
