Antenna Extension Cable Replacement

ANTENNA EXTENSION CABLE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the instrument panel trim panel.

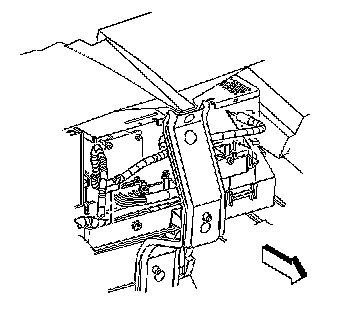

2. Disconnect the extension cable from the radio.

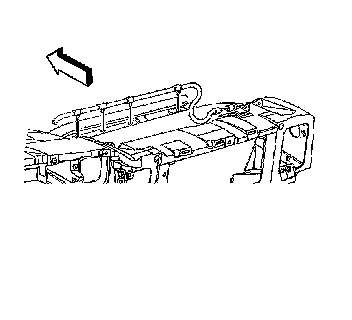

3. Disconnect the extension cable from the HVAC duct.

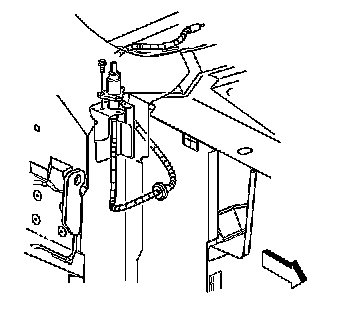

4. Disconnect the extension cable from the antenna.

INSTALLATION PROCEDURE




1. Connect the extension cable to the radio.




2. Connect the extension cable to the HVAC duct.




3. Connect the extension cable to the antenna.
4. Install the instrument panel trim panel.
