Rear Drive Axle

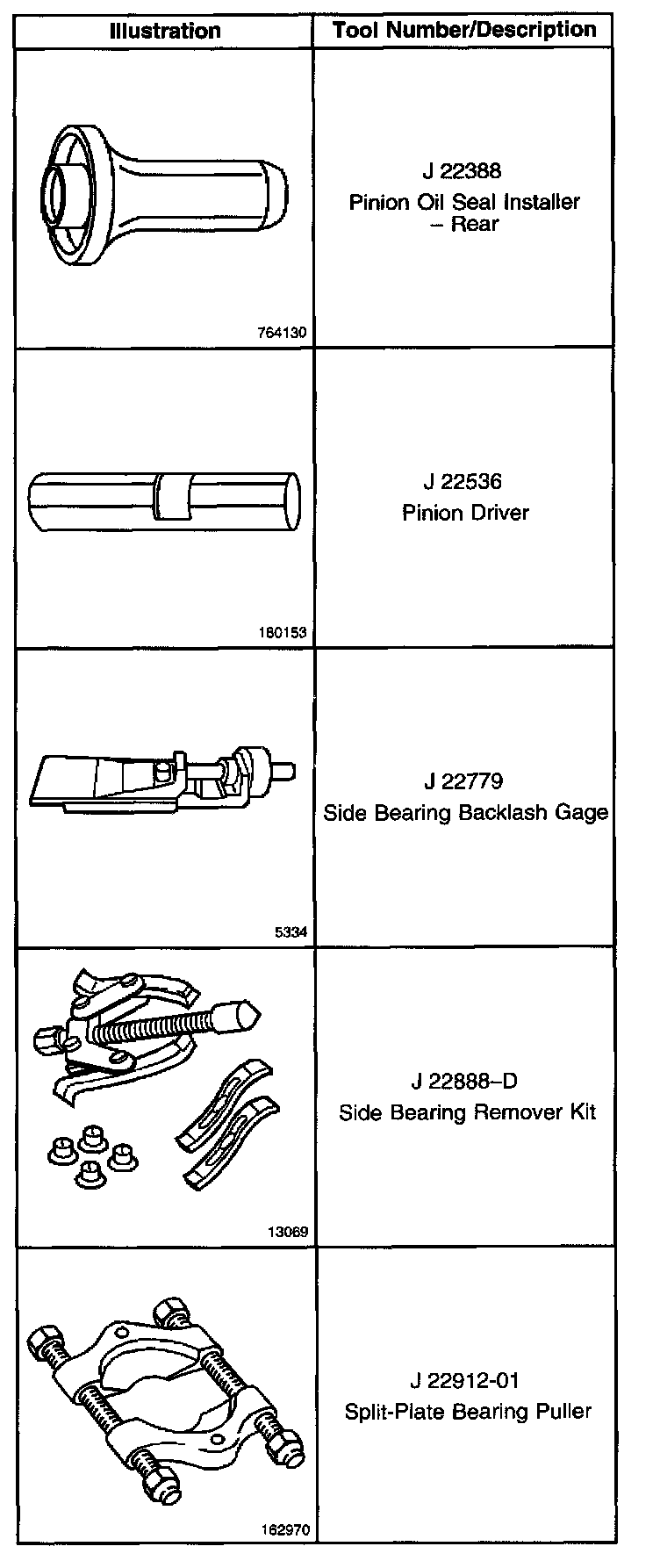

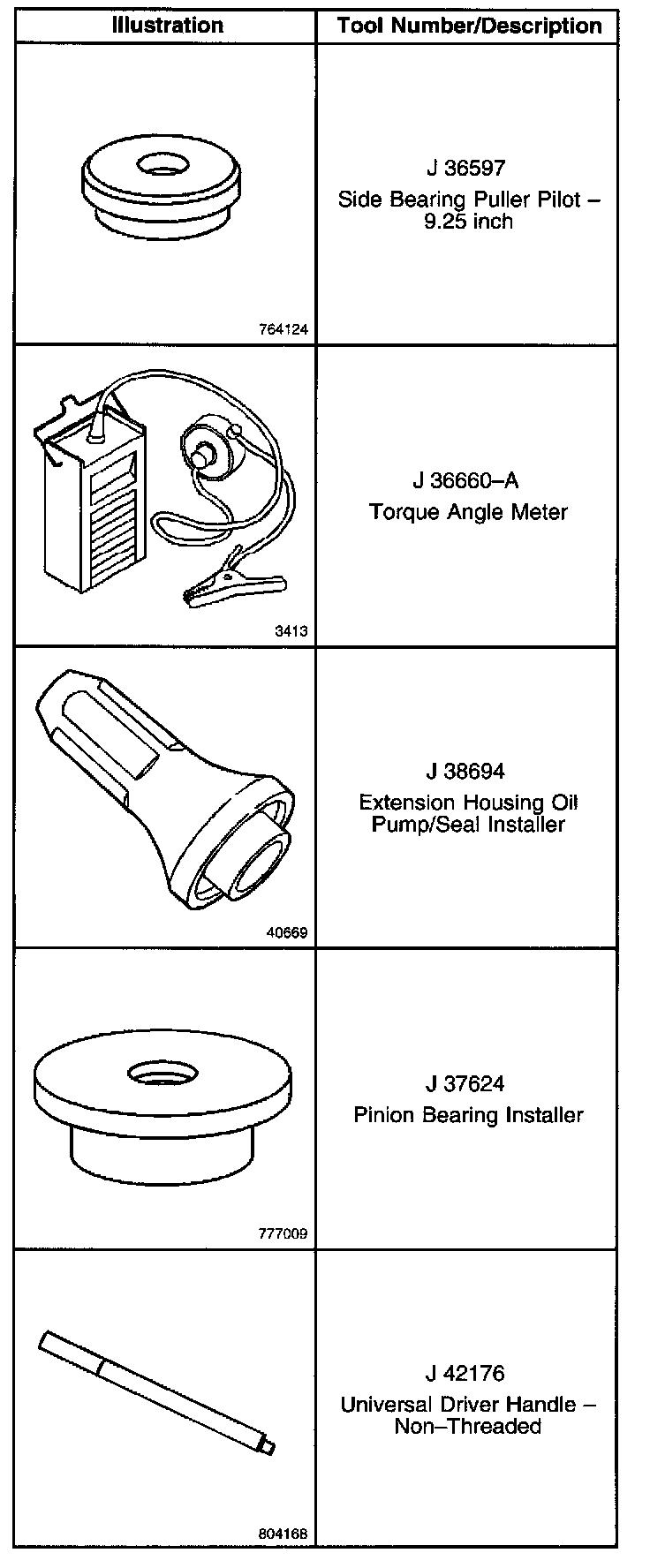

Special Tools And Equipment, Part 1:

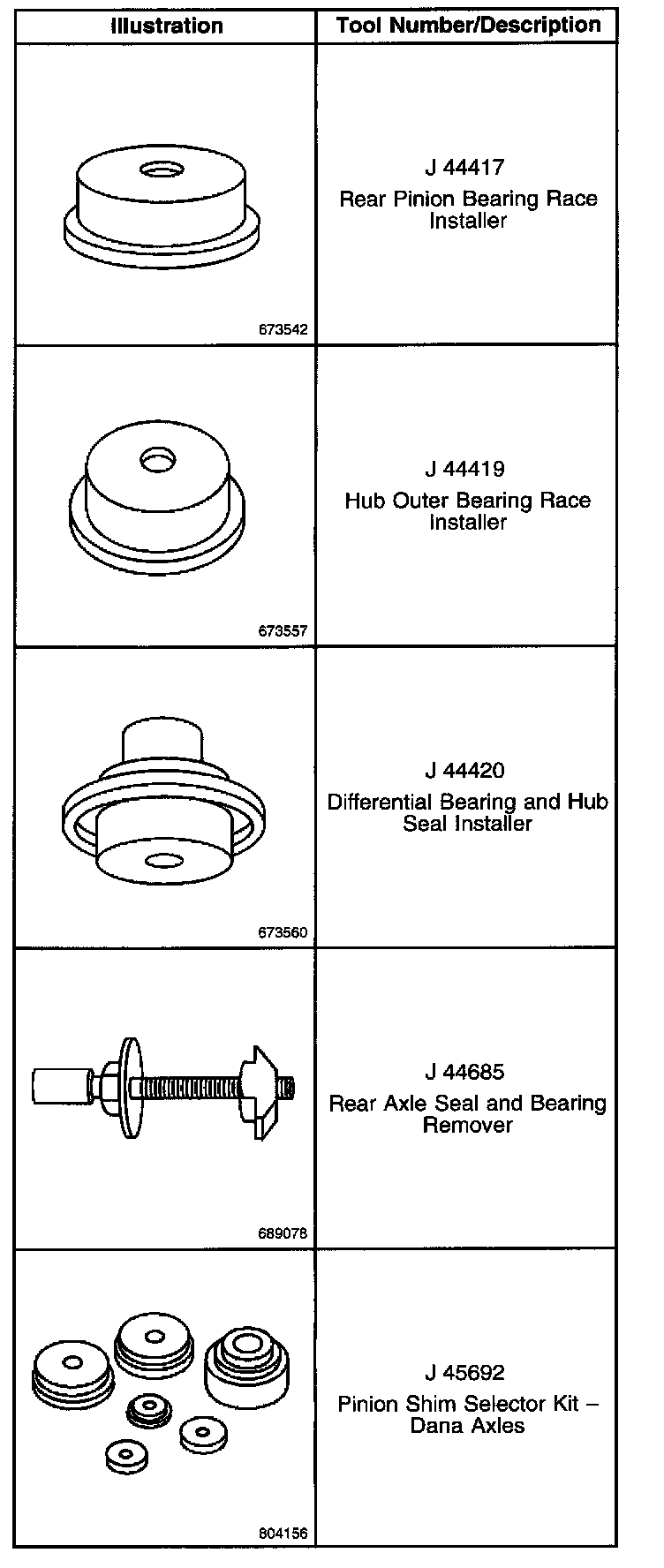

Special Tools And Equipment, Part 2:

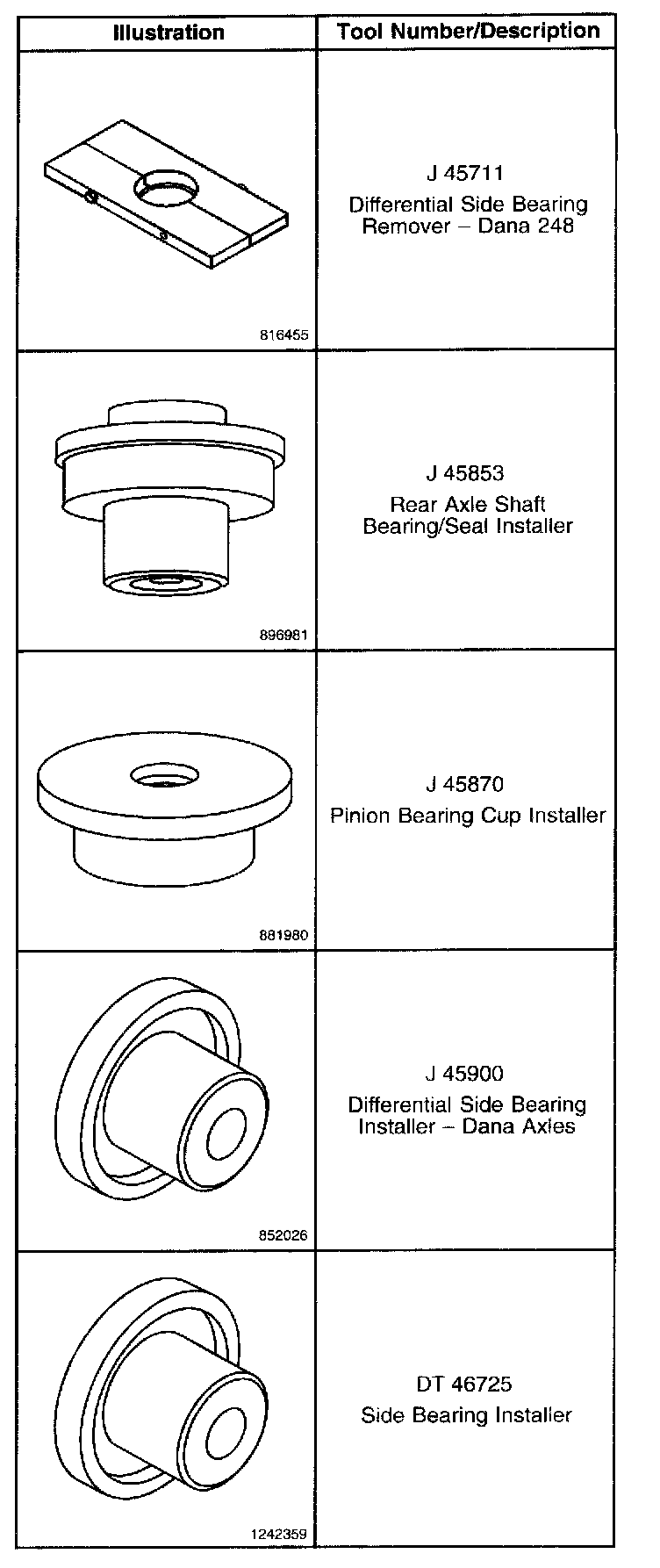

Special Tools And Equipment, Part 3:

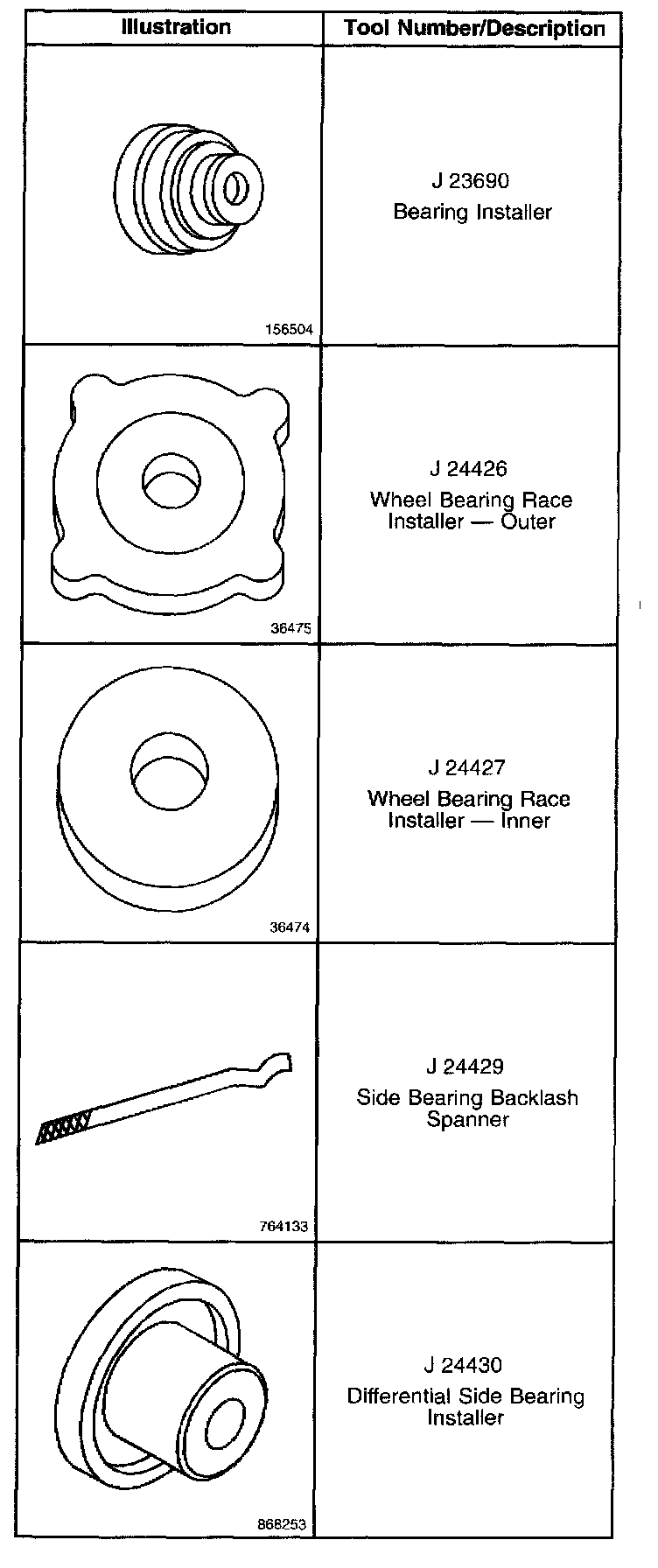

Special Tools And Equipment, Part 4:

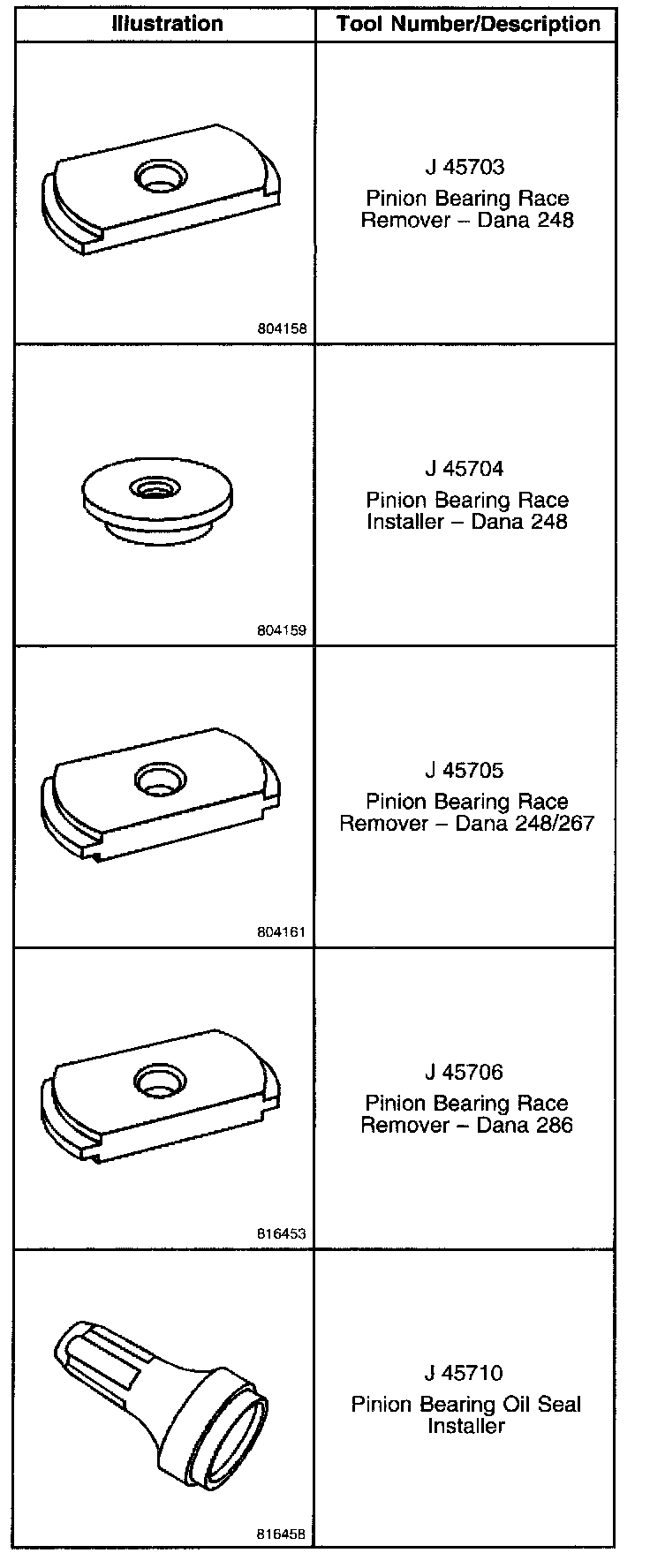

Special Tools And Equipment, Part 5:

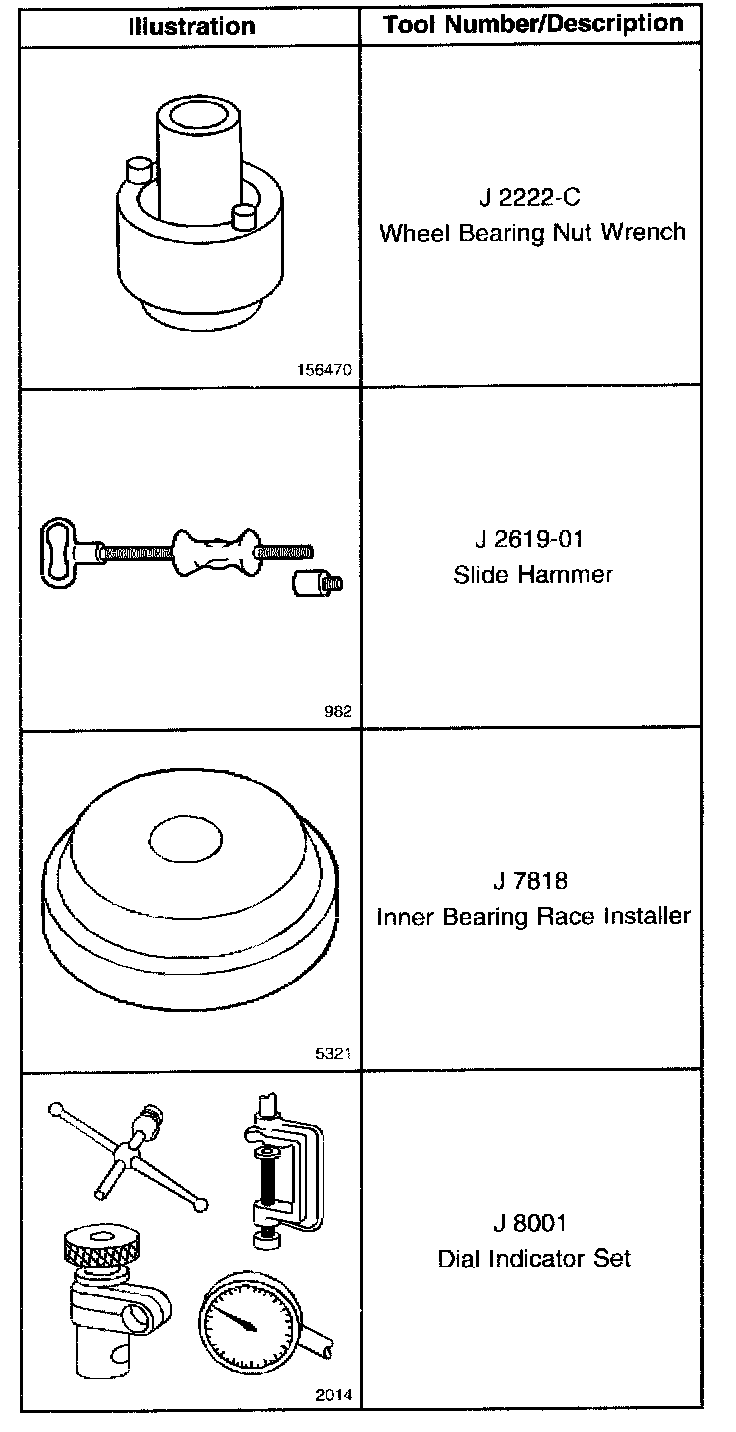

Special Tools And Equipment, Part 6:

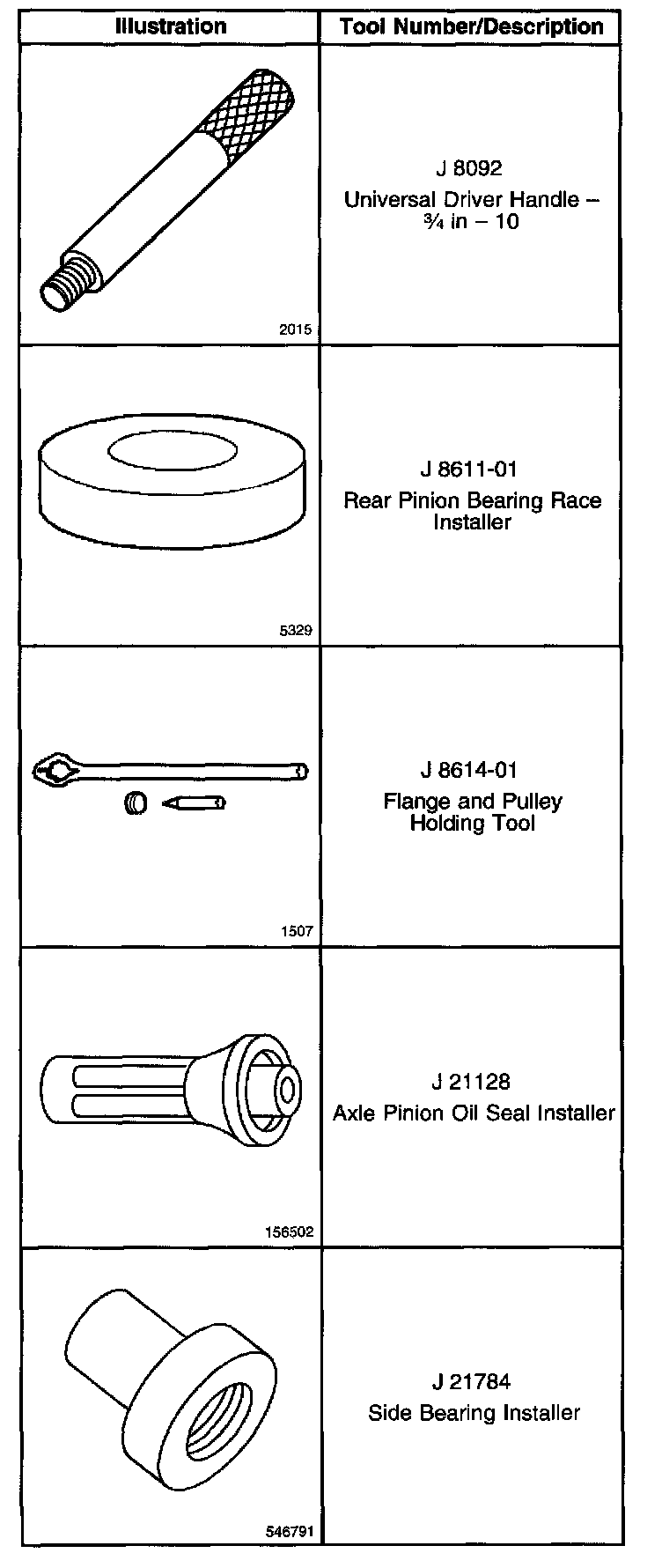

Special Tools And Equipment, Part 7:

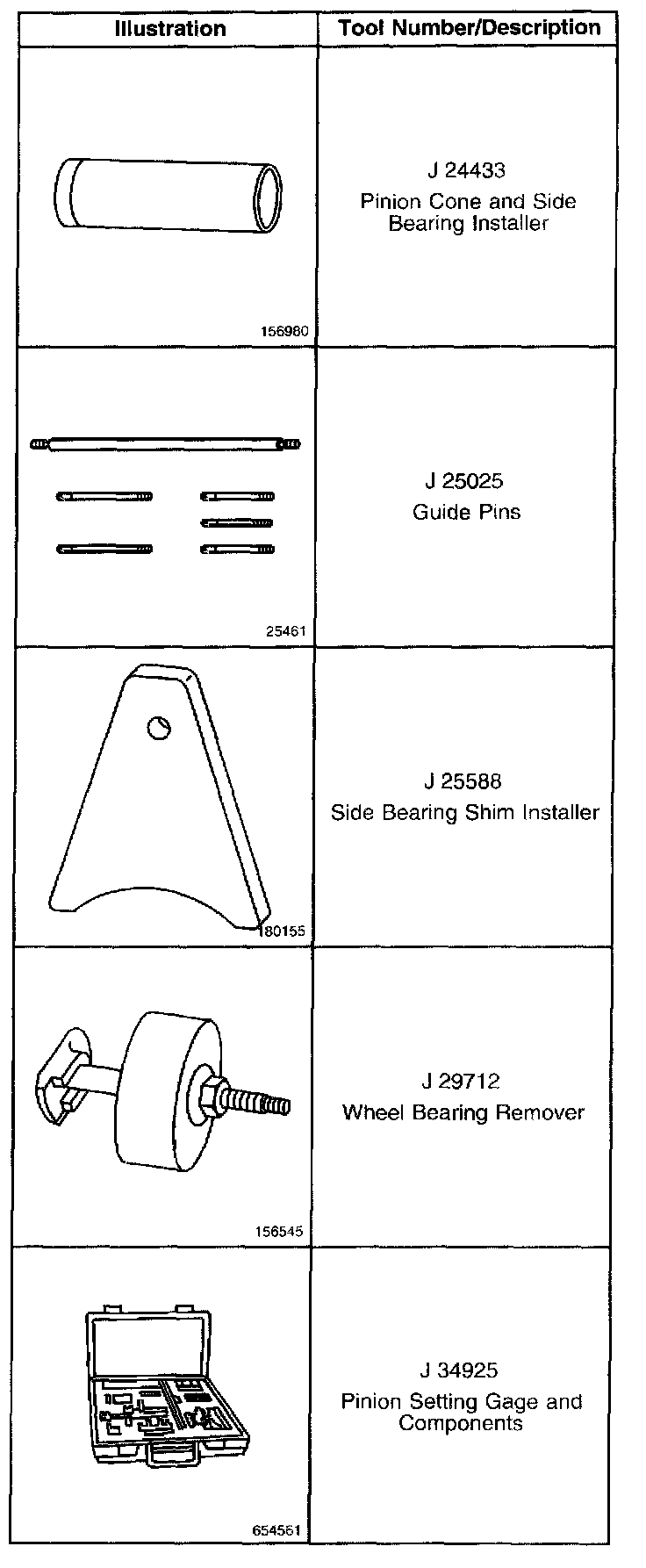

Special Tools And Equipment, Part 8:

Special Tools And Equipment, Part 9:
