10.5 Inch Axle

Locking Differential Clutch Disc Assembly - Disassemble (10.5 Inch Axle)

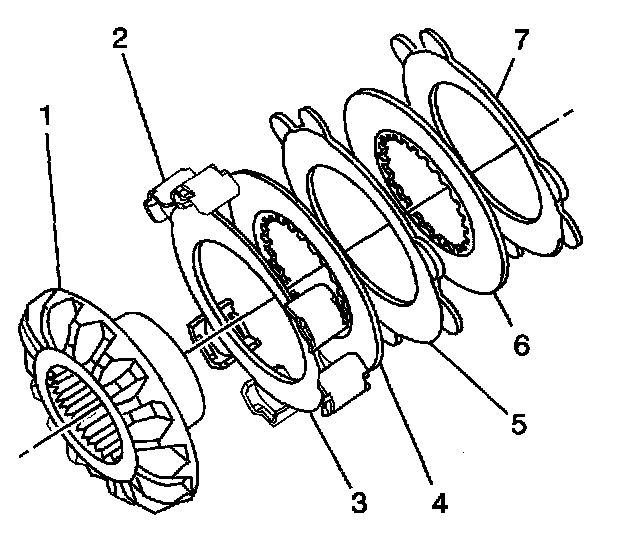

1. Remove the guide clips (2).
2. Remove the clutch discs and the splined discs (3-7) from the locking differential side gear (1).
