Power Steering Pump Drive Shaft Seal Replacement

Power Steering Pump Drive Shaft Seal Replacement

Removal Procedure





1. Remove the power steering pump.

2. Important:

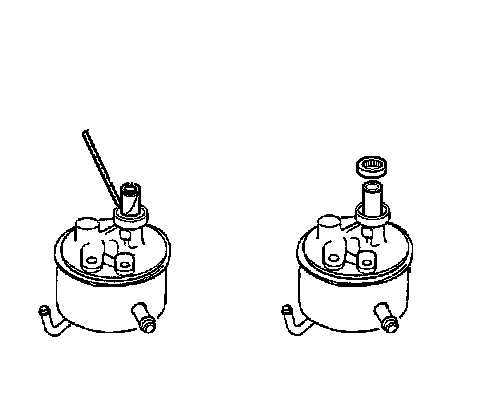

Protect the drive shaft with a shim stock.

Cut the seal with a chisel in order to remove it.

Installation Procedure





1. Lubricate the seal with power steering fluid.
2. Install the seal using a deep socket.
3. Install the power steering pump.
