Express 3500 V8-6.6L DSL Turbo VIN 2
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C200 - C299
>>
C200
C200

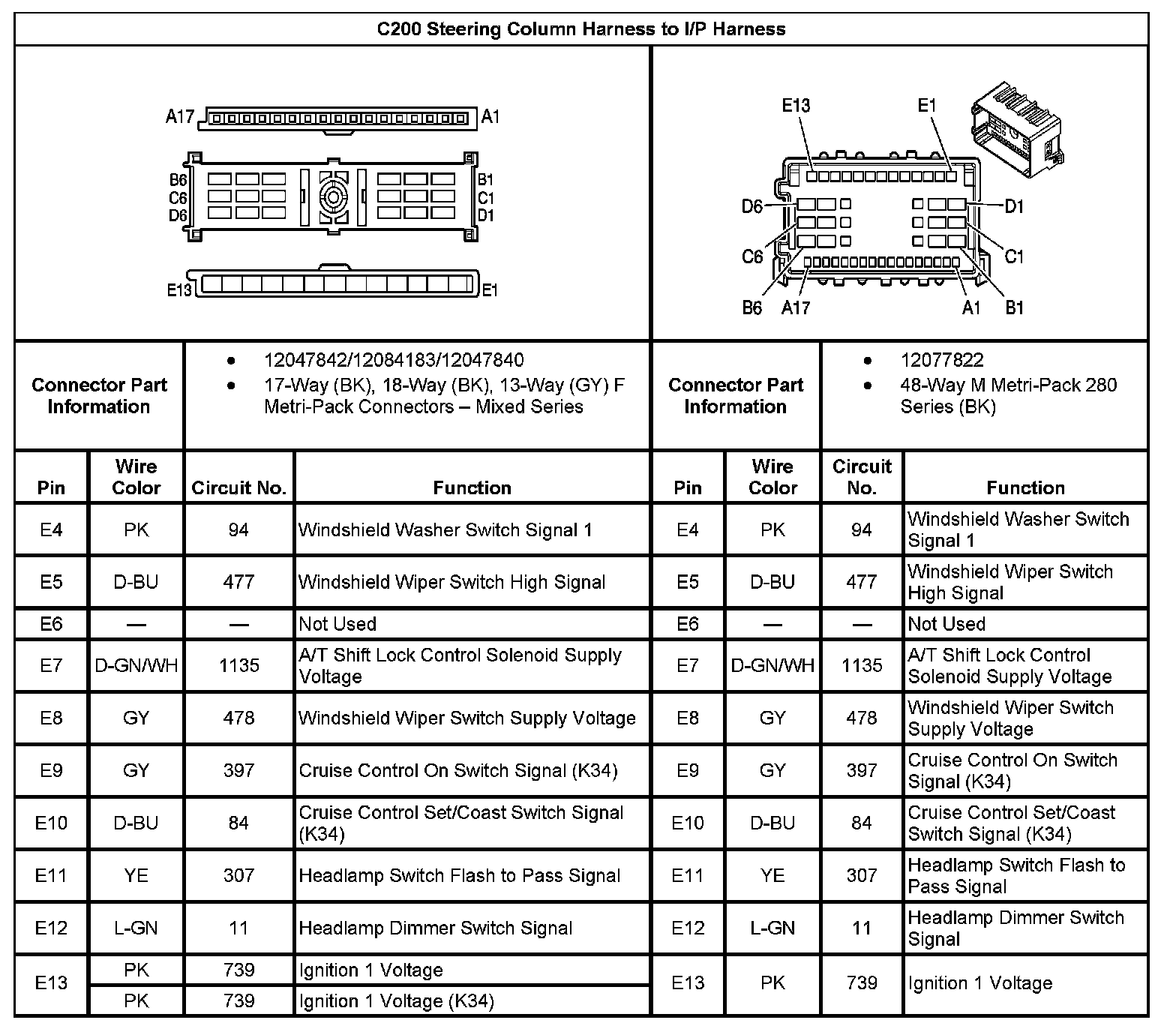

C200 Steering Column Harness to I/P Harness (Part 1):

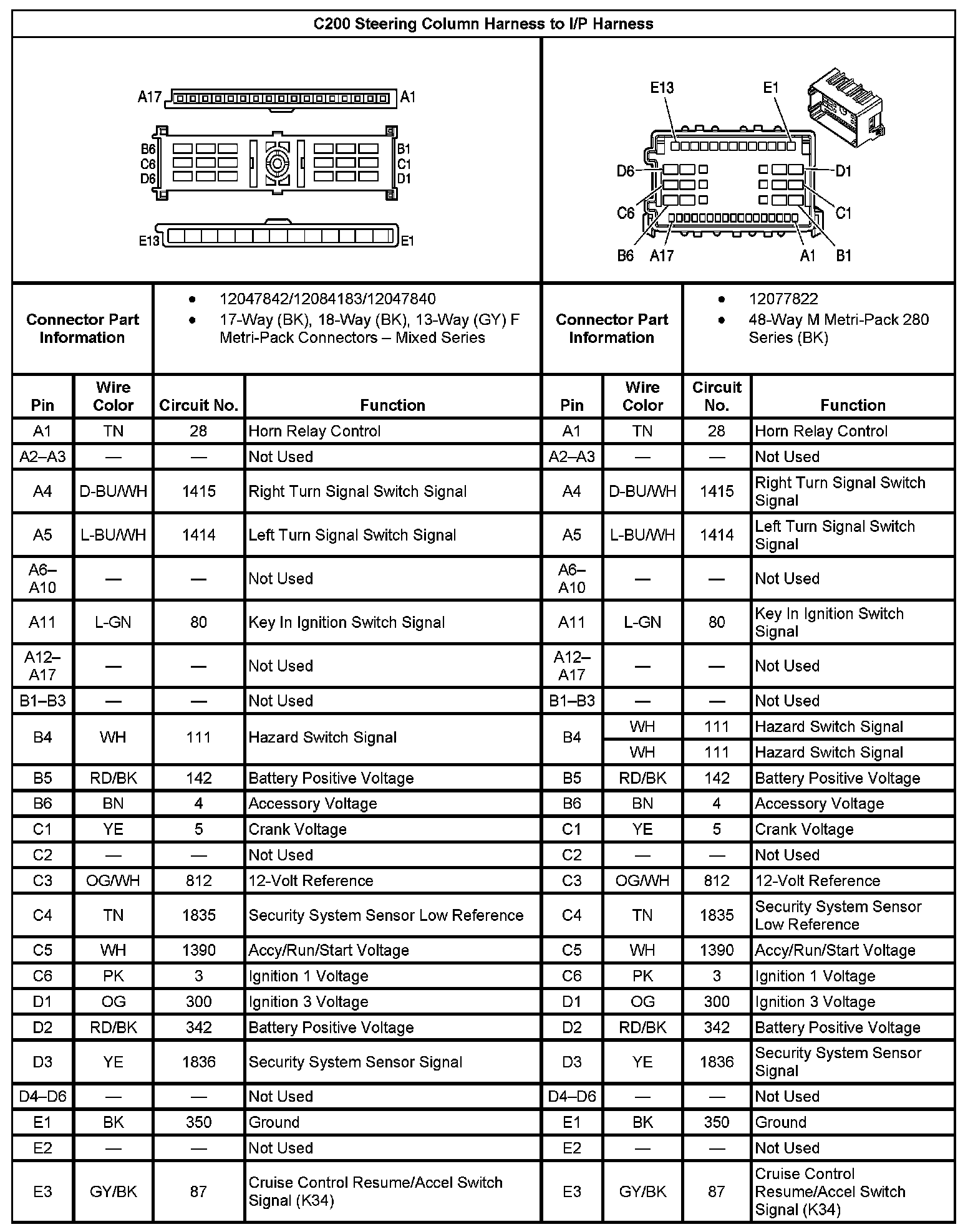

C200 Steering Column Harness to I/P Harness (Part 2):
